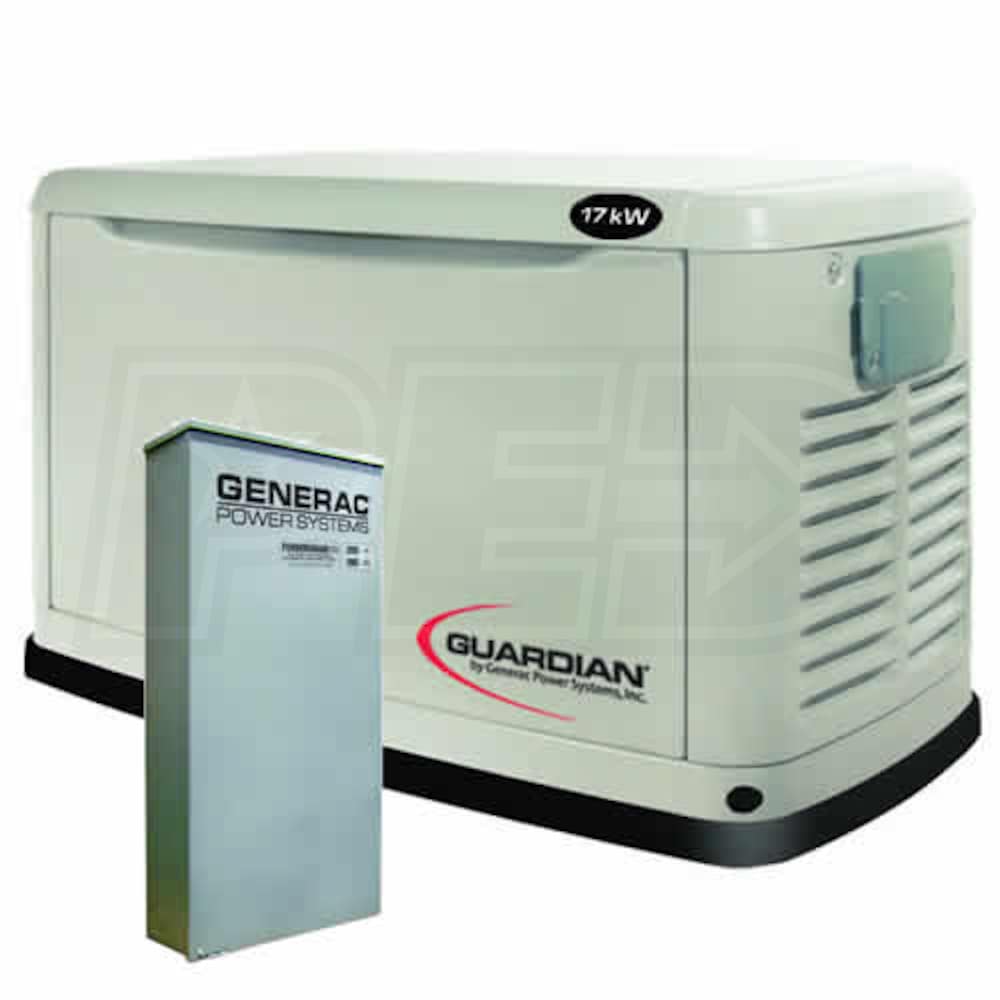

Guardian 17 kW Standby Generator w/ 200-Amp Load-Shedding Switch

Model:

EGD17KWKIT

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Guardian 17 kW Standby Generator w/ 200-Amp Load-Shedding Switch
Guardian 17 kW Standby Generator w/ 200-Amp Load-Shedding Switch
Model: EGD17KWKIT
Was $5,049.00
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Air Cooled)

Run Watts

17,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Generac

  • Whole House Generator
  • Automatically restores power to 16 mission critical circuits
  • Restores power to additional circuits if extra power is available
  • Standby Generator & Load-Shedding Switch
  • Ideal for homes with 200-amp main load centers
  • Ideal for homes with multiple high wattage appliances

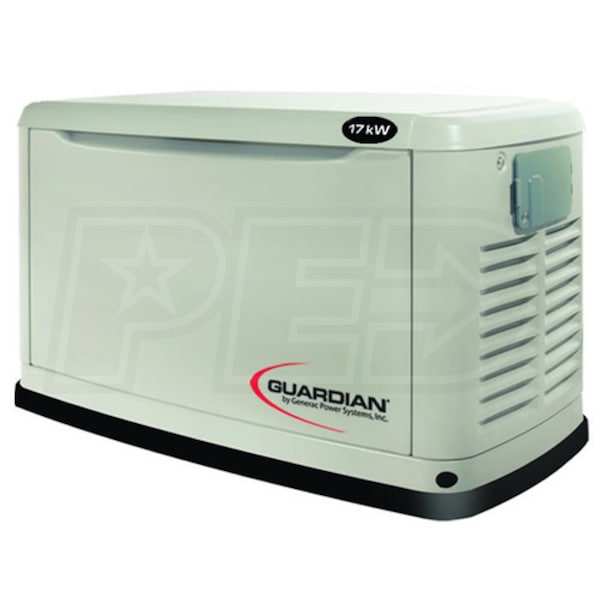

  • 17 Kilowatt Guardian Home Standby Generator
  • Runs off natural gas or LP fuel source
  • Generac OHVI V-Twin air-cooled engine
  • Automatically exercises every 7 days
  • WhisperTest reduces sound to 60 decibels during exercising
  • Weather-protected steel enclosure & composite mounting pad

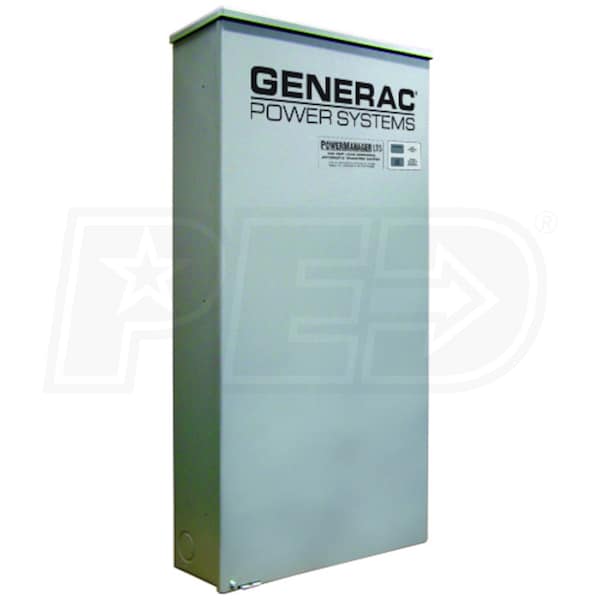

  • PowerManager Load-Shedding Transfer Switch
  • Alternate two central air conditioners without overloading
  • Drops non-critical circuits when overload is approaching
  • Brings back non-critical circuits when power is available
  • Built-in Battery Charger
  • Battery Sold Separately

Specifications

EGD17KWKIT
specs product image PID-2214
Overview
Weight
455 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
17000 Watts
Surge Watts
17000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
16000 Watts
LP Power Capacity
17000 Watts
NG Fuel Consumption @ 50% Load
183 ft³/hr
LP Fuel Consumption @ 50% Load
1.61 gallons/hr
Rated Amps
71 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
66 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included (550 CCA)
Enclosure
Steel
A/C Ton Rating
5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Pre-Wired (16-Circuit)
ATS Poles
2 Poles
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac
HP
32 HP
CC
992 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
