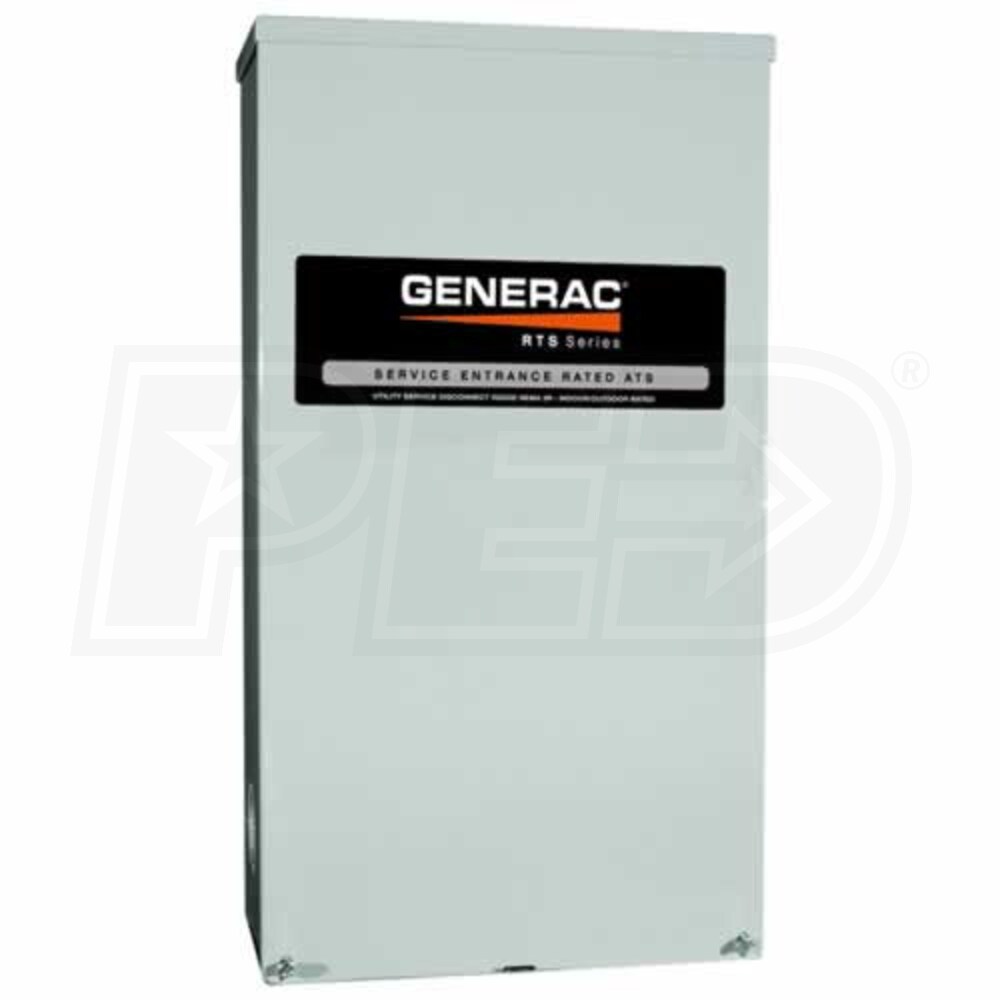

Generac Guardian RTSD400A3
Generac Guardian RTSD400A3
Hover to zoom
1 Of 5

Generac Nexus Smart Switch™ - 400 Amp Automatic Transfer Switch (Service Disconnect)

Model:

RTSD400A3

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Generac Nexus Smart Switch™ - 400 Amp Automatic Transfer Switch (Service Disconnect)
Generac Nexus Smart Switch™ - 400 Amp Automatic Transfer Switch (Service Disconnect)
Model: RTSD400A3
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Service Disconnect

Amp Rating

400

Load Mgmt.

Compatible

Voltage

120/240 Single-Phase

Enclosure

NEMA 3R

  • Nexus™ Automatic Transfer Switch
  • Compatible With Generac Nexus™ or Generac R200 Controllers
  • Leverages digital load management (DLM) technology
  • Ability to manage 2 A/C units with no additional hardware
  • Intelligently manage 4 more loads w/ additional DLM modules
  • DLM Module P/N: 5937 (Sold Separately)
  • Service Entrance Rated
  • Installs between main meter and service panel
  • Contains load side and line side disconnecting breaker
  • NEMA 3R Indoor/Outdoor Rated
  • Aluminum, wall mountable weather-proof enclosure
  • Electrostatically applied and baked powder paint (Gray)
  • Tech Spec Summary:
  • Load transition type: Open Transition
  • Withstand rating: 22,000 Amps
  • Lug range: #4 or 2-250 MCM
  • For Use With Generac Generators Only
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

RTSD400A3
specs product image PID-4817
Overview
Weight
140 Pounds
Made in USA
Yes
Consumer Warranty
1 Year
Product Length
40 Inches
Product Width
30 Inches
Product Height
10 Inches
UPC
696471607512
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Compatible
ATS Load Shedding
Compatible
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
