Generac Guardian RTSW100G3
Generac Guardian RTSW100G3
Hover to zoom
1 Of 5

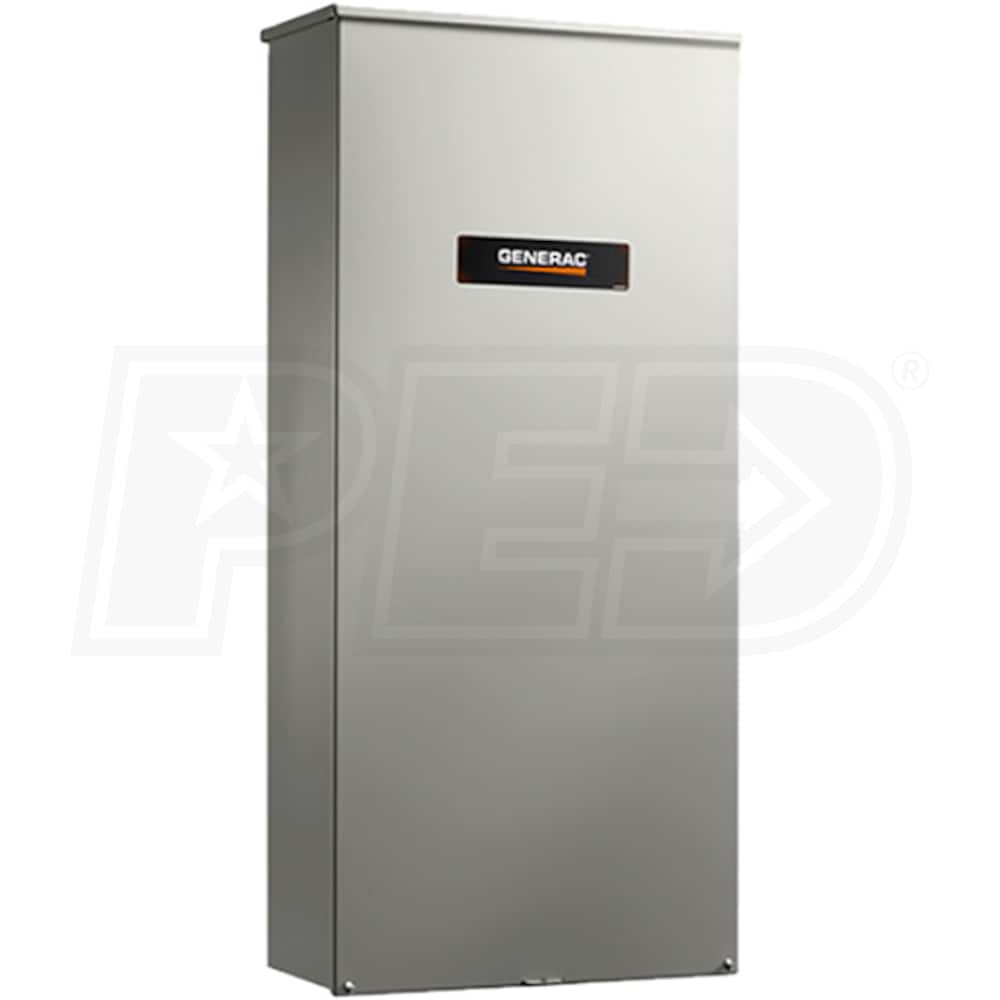

Generac 100-Amp Automatic Transfer Switch (Service Disconnect - 120/208V 3-Phase)

Model:

RTSW100G3

Write A Review
$1,659.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 6-8 Weeks
synchrony card logo
$277 / Month
Suggested monthly payments with 6 month financing.
Generac 100-Amp Automatic Transfer Switch (Service Disconnect - 120/208V 3-Phase)
Generac 100-Amp Automatic Transfer Switch (Service Disconnect - 120/208V 3-Phase)
Model: RTSW100G3
$1,659.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Service Disconnect

Amp Rating

100

Load Mgmt.

Not Compatible

Voltage

120/208 Three-Phase

Enclosure

NEMA 3R

  • Automatic Operation
  • For Use With Generac Generators Only
  • 120/208V 3-Phase Automatic Transfer Switch
  • Designed for use with 120/208V 3 Phase generators
  • For Generac Evolution™ & Generac Nexus™ Controllers
  • Service Entrance Rated (Load Side & Line Side Disc. Breakers)
  • Installs between main meter & service panel
  • NEMA 3R Indoor/Outdoor Rated
  • Aluminum, wall mountable weather-proof enclosure
  • Electrostatically applied and baked powder paint (Gray)
  • UL Listed 2200
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

RTSW100G3
specs product image PID-70528
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
50 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
48 Inches
Product Width
21.82 Inches
Product Height
10.6 Inches
UPC
696471620436
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Transfer Switch Amperage
100-Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
Yes
Max Utility Input
100 Amps
Max Generator Input
100 Amps
UL Listed
Yes
