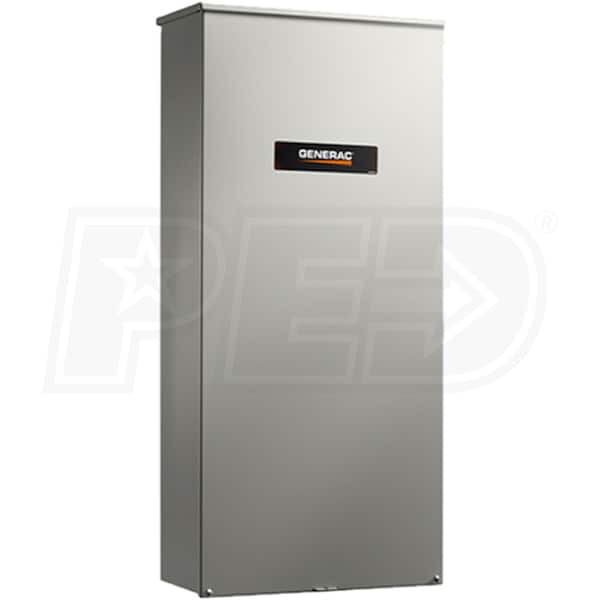

Generac 200-Amp Automatic Transfer Switch (Service Disconnect - 120/208V 3-Phase)
Model:
RTSW200G3
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Type
Service Disconnect
Amp Rating
200
Load Mgmt.
Not Compatible
Voltage
120/208 Three-Phase
Enclosure
NEMA 3R
- 200-Amp Automatic Operation
- For Use With Generac Generators Only
- 120/208V 3-Phase Automatic Transfer Switch
- Designed for use with 120/208V 3 Phase generators
- For Generac Evolution™ & Generac Nexus™ Controllers
- Service Entrance Rated (Load Side & Line Side Disc. Breakers)
- Installs between main meter & service panel
- NEMA 3R Indoor/Outdoor Rated
- Aluminum, wall mountable weather-proof enclosure
- Electrostatically applied and baked powder paint (Gray)
- UL Listed 2200
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
RTSW200G3
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
55 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
48 Inches
Product Width
21.82 Inches
Product Height
10.6 Inches
UPC
696471620467
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Amps
200 Amps
Transfer Switch Amperage
200-Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
Yes
Max Utility Input
200 Amps
Max Generator Input
200 Amps
UL Listed
Yes
