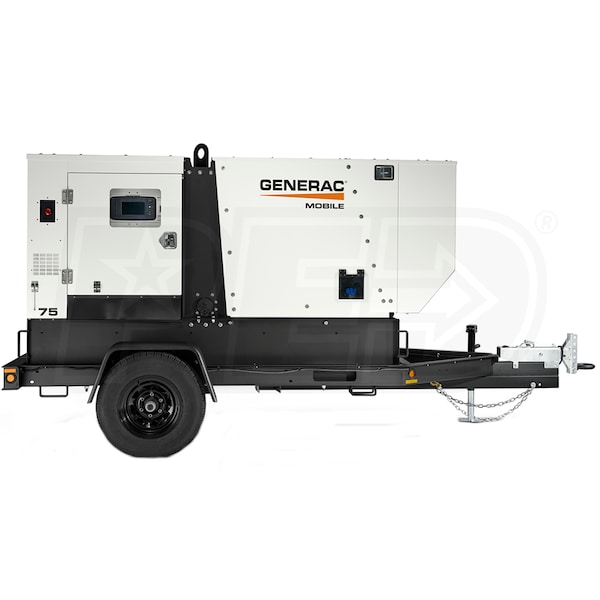

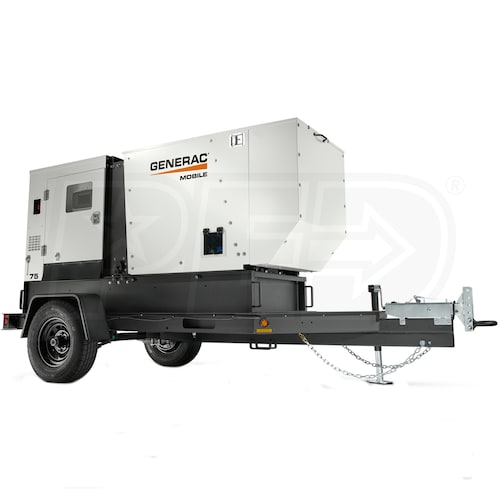

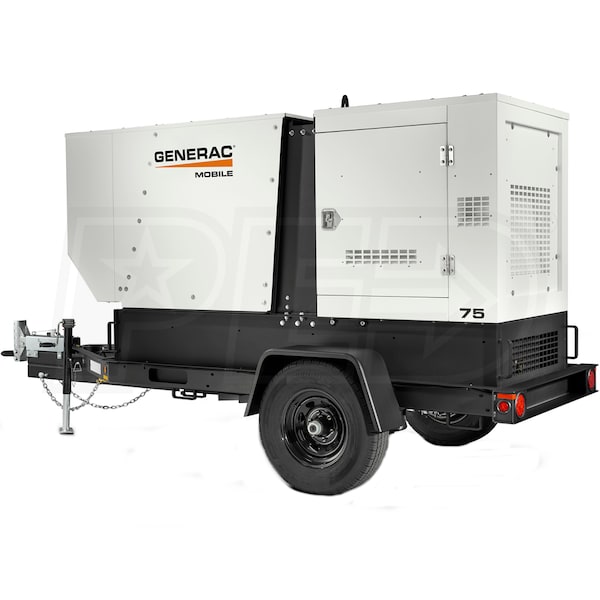

Generac 60kW (Prime) / 68kW (Standby) Skid-Mount Diesel Generator (John Deere Engine) w/ Single-Axle Trailer
Model:
MDG75DF4-STD3
+
Share This Product
Features
Grade
Professional
Style
Tow-Behind
Run Watts
60,000 Rated Watts
Surge Watts
68,000
Starting Watts
Fuel
Diesel
Engine
John Deere
- Generac Mobile MDG75DF4 Skid-Mount Diesel Generator
- Designed & engineered for optimum performance & reliability
- Marathon Electric Brushless Alternator - Multi-Phase Output
- Three-Phase: 60 kW / 75 kVA (Prime), 68 kW / 85 kVA (Standby)
- Single-Phase: 55 kW / 55 kVA (Prime), 55 kW / 55 kVA (Standby)
- PM600 Voltage Regulator
- Provides Voltage regulation of +/- 0.5% for cleaner power
- 3-Position Voltage Selector Switch
- Single Phase - 120/240V Zig Zag
- 3-Phase - 120/208V Low Wye & 3-Phase 277/480V High Wye
- 4.5L John Deere® Turbocharged, After-Cooled Diesel Engine (EPA Tier 4 Final)
- Fuel efficient design runs at 1800 RPM for extended engine life
- Rubber vibration dampers isolate engine/generator from frame for quieter operation
- 165-Gallon Polyethylene Internal Fuel Tank w/ 3.5" Fill Port
- Provides up to 30 hours of run time @ 100% load
- Deep Sea® Controller w/ 4-Line Back-lit LCD Text Display
- Push button design; Manual or Auto Start, Engine Start, Stop/Reset, Alarm Mute
- Scrolling Arrows for Diagnostic Information; Engine and Generator diagnostics
- *Please see spec sheet for additional controller information
- 9-Warning & Shutdown Alarms w/ 250-Event (Date/Time Stamp) History Log
- Provides safer operation by monitoring engine and generator systems
- 300-Amp Main Breaker With Shunt Trip
- Lockable control box door w/ diagnostics window;
- Remote Start/Stop contacts located in lug box
- Lockable lug box with safety switch; Output ground connection lug inside lug box
- (2) 120V 20A GFCI Duplex Outlets (5-20R) & (3) 240V 50A (Non-Nema 6369) Twistlock
- Individually breakered for added safety during operation
- Sound Attenuated Aluminum Enclosure - 74 dB(A) @ 23' (Prime Power)
- Powder-coated, UV and fade resistant paint for exterior/interior of enclosure
- Fully-lockable (enclosure & fuel fill), insulated & baffled w/ central lifting point
- External Emergency Stop Switch; Multi-lingual operating/safety decals
- CUSTOMERS MUST UNLOAD FROM FREIGHT CARRIER
- 2-Year / 2,000 Hour Limited Warranty
- Includes Generac Single-Axle Trailer
- For MDG75DF4 Skid-Mount Diesel Generators
- DOT Approved Tubular Steel Trailer w/ Surge Brakes & 3" Ring Hitch
- Transportation tie downs, Safety chains w/ spring-loaded hooks
- LED Tail, Side, Brake & Directional Lights
- 15" Tires and polyethylene fenders
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
MDG75DF4-STD3
General Information
Product Category
Generator - Towable
Overview
Product Category
Generator - Towable
Weight
4530 Pounds
Certification
EPA Tier 4
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Towable Generator
Product Length
170 Inches
Product Width
69 Inches
Product Height
80 Inches
Product Specs
Voltage
Voltage Selector Switch
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
60000 Watts
Surge Watts
68000 Watts
Fuel Type
Diesel
Tank Size
165 Gallons
Fuel Tank Material
Plastic
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Included
Circuit Breaker Size
300 Amps
Grade Type
Professional
Engine
Engine Brand
John Deere
Starting System
12-Volt Key Start
HP
97 HP
CC
4500 CC
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Plugs
NEMA 5-20R - GFCI
2
CS6364/5 - 50-Amp Twistlock
3
