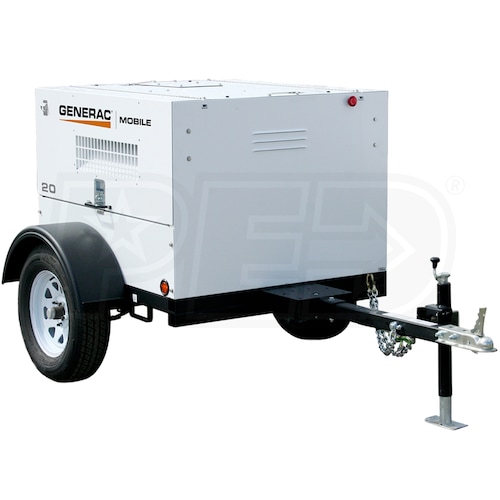

Generac Mobile MLG20IF4 - 19kW (Prime) / 20kW (Standby) Towable Diesel Generator w/ Isuzu Engine
Model:
MLG20IF4-STD
+
Share This Product
Features
Grade
Professional
Style
Tow-Behind
Run Watts
19,000 Rated Watts
Surge Watts
20,000
Starting Watts
Fuel
Diesel
Engine
Isuzu
- Generac Mobile MLG20IF4 Mobile Diesel Generator
- Designed & engineered for optimum performance & reliability
- Marathon Electric Brushless Alternator - Single-Phase Output
- Prime - 19 kW / 19 kVA (79A @ 240V)
- Standby - 20 kW / 20 kVA (83A @ 240V)
- Marathon SE350 Voltage Regulator
- Provides Voltage regulation of +/- 1% for cleaner power
- 2.2L Isuzu® Liquid Cooled Diesel Engine (EPA Tier 4 Final)
- Fuel efficient design runs at 1800 RPM for extended engine life
- Rubber vibration dampers isolate engine/generator from frame for quieter operation
- 50-Gallon Polyethylene Internal Fuel Tank w/ 3.5" Fill Port
- Provides up to 47.6 hours of run time @ 50% load
- Provides up to 23.8 hours of run time @ 100% load
- Automatic Low Oil / High Temperature Shutdown System
- Provides added safety to extend engine life
- Easy To Use System Controls
- 4-Position keyed switch (Preheat, Off, Run & Start)
- Hour Meter makes it simple to monitor run time and maintenance intervals
- Emergency stop switch located on front panel
- Internally Mounted Circuit Breakers w/ 100A Start Limit Breaker
- Provides added protection to all receptacles on genset
- (2) 240V 30A (L6-30R) & (2) 240V 50A (Non-Nema 6369) Twistlock Outlets
- Individually breakered for added safety during operation
- (2) 120V 20A GFCI Duplex Outlets
- Provides the convenience of powering 120V equipment
- 14-Gauge, Sound Attenuated Steel Enclosure - 70 dB(A) @ 23'
- Powder-coated, UV and fade resistant paint for exterior/interior of enclosure
- Fully-lockable, insulated & baffled w/ stainless steel hardware
- Multi-lingual operating/safety decals; Manual holder w/ operating manual
- 58" Track Width, DOT Approved Tubular Steel Trailer w/ 2" Ball Hitch
- Transportation tie downs, Safety chains w/ spring-loaded hooks
- Tail, side, brake, and directional lights; Recessed rear lights
- 15" ST205/75R15 - 6 ply wheel/tire & Single wall polyethylene fenders
- CUSTOMERS MUST UNLOAD FROM FREIGHT CARRIER
- 1-Year / Unlimited, 2-Year/ 2,000 Hour Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
MLG20IF4-STD
General Information
Product Category
Generator - Towable
Overview
Product Category
Generator - Towable
Weight
1471 Pounds
Certification
EPA Tier 4
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Towable Generator
Product Length
105 Inches
Product Width
68 Inches
Product Height
56 Inches
UPC
696471060287
Additional Model Numbers
MLG20IF4, MLG20IF4-STD
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
19000 Watts
Surge Watts
20000 Watts
Fuel Type
Diesel
Rated Amps
167/83 Amps
Diesel Fuel Consumption @ 50% Load
1.05 gallons/hr
Tank Size
50 Gallons
Run Time @ 50% Load
47.6 Hours
Fuel Tank Material
Plastic
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
70
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Battery
Included
Enclosure
Steel
Circuit Breaker Size
100 Amps
Grade Type
Professional
Engine
Engine Brand
Isuzu
Starting System
12-Volt Key Start
HP
40.2 HP
CC
2200 CC
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L6-30R
2
CS6364/5 - 50-Amp Twistlock
2
