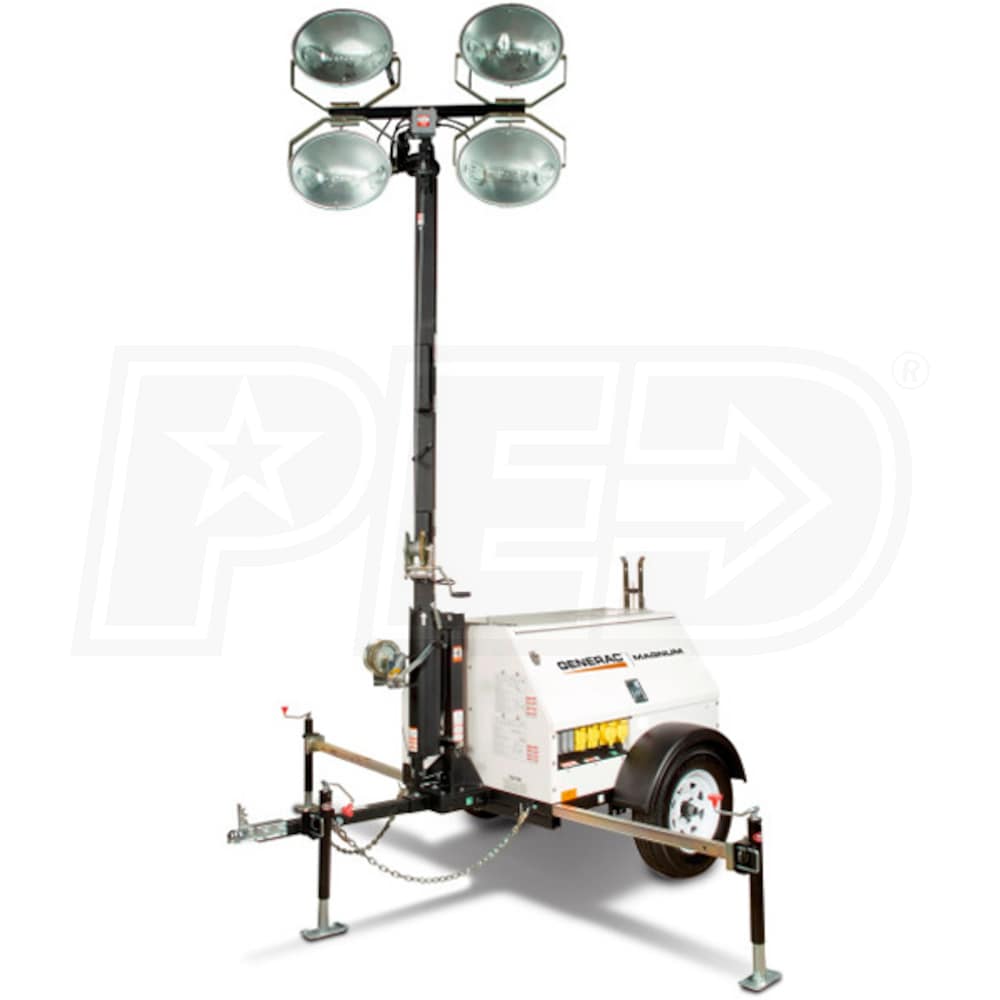

Generac MLT4060M-STD - 6kW Towable Diesel Horizontal Mast Light Tower w/ Mitsubishi Engine & Manual Winch
Model:
MLT4060M-STD
+
Share This Product
Features
Grade
Professional
Style
Tow-Behind
Run Watts
6,000 Rated Watts
Voltage
120/240 Single-Phase
Fuel
Diesel
Engine
Mitsubishi
- MLT4060M-STD - 6kW Horizontal Mast Light Tower (Mitsubishi® / Manual Winch)
- Designed & engineered for optimum performance, reliability and longevity
- 4 x 1000-Watt Metal Halide Lamps
- Provides light coverage for up to 7 acres; Individual On/Off switches
- Oval aluminum reflectors w/ tempered glass lens & silicone gaskets
- Friction disc mounting for tool less positioning
- 30-Foot, 3-Section Horizontal Mast w/ Manual Winch
- Dual-Winch system located at ergonomic height; Simple, single person operation
- 359° Ground-Level mast/fixture rotation w/ locking system
- .95L Mitsubishi® L3E Liquid Cooled Diesel Engine (EPA Tier 4 Final)
- Fuel efficient design runs at 1800 RPM for extended engine life
- 56-Gallon Polyethylene Internal Fuel Tank
- Provides up to 119 hours of run time with all 4-light On
- 120/240V - 50/25A Marathon Electric Brushless Alternator
- Robust design provides up to 6 kW of standby output
- (1) 120V 20A GFCI Duplex Outlet & (1) 240V 30A (L6-30R) Twistlock Outlet
- Individually breakered for added safety during operation
- 14-Gauge Steel Enclosure - 68 dB(A) @ 23'
- Powder-coated, UV and fade resistant paint for exterior/interior of enclosure
- Multi-lingual operating/safety decals; Manual holder w/ operating manual
- Tubular Steel Trailer w/ 48" Removable Tongue
- (4) 2000 lb. Adjustable leveling jacks; Transport/lock in horizontal storage position
- Front step platform for easy adjustment of light fixtures
- DOT Approved Tail, Side, Brake and Directional Lights
- 2200 lb. Leaf spring axle; Single wall polyethylene fenders
- 13" ST175/80D13 - 6 ply wheel/tire; 56" Axle Span
- 2" Ball hitch & safety chains w/ spring loaded safety hooks
- Includes Starting Battery
- CUSTOMERS MUST UNLOAD FROM FREIGHT CARRIER
- 1-Year / Unlimited Hours, 2-Year / 2,000 Hour Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
MLT4060M-STD
Overview
Weight
1675 Pounds
Certification
EPA Tier 4
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Light Tower
Product Length
170 Inches
Product Width
68 Inches
Product Height
70 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Rated Watts
6000 Watts
Fuel Type
Diesel
Rated Amps
50/25 Amps
Tank Size
56 Gallons
Fuel Tank Material
Plastic
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68
Idle Control
No
Hour Meter
Yes
Lifting Eye
Yes
Battery
Included
Grade Type
Professional
Engine
Engine Brand
Mitsubishi
Starting System
12-Volt Button Start
HP
12.2 HP
CC
950 CC
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Plugs
NEMA 5-20R - GFCI
1
NEMA L6-30R
1
