Generac Mobile 6kW Towable Diesel Vertical Mast LED Light Tower w/ Mitsubishi Engine & Manual Winch
Model:
MLT6SMDS-STD3
+
Share This Product
Features
Grade
Style
Tow-Behind
Run Watts
6,000 Rated Watts
Voltage
120/240 Single-Phase
Fuel
Diesel
Engine
Mitsubishi
- Generac Mobile MLT6SMDS-STD3 - 6kW Towable Diesel Light Tower
- The newest member of the MLT6 light tower family
- (4) x 390W (47K/188K Lumens) LED Light Fixtures
- IP68 LED Modules with 50,000-hour life
- Aluminum / Poly construction housing and cabinet mounted LED drivers
- 23-Foot, 5-Section Vertical Mast w/ Manual Winch
- 359° Ground rotational mast with mast fully extended
- Dual handle manual winch w/ brake system for easier and safer deployment
- Distinctive angle fixture mount for common light distribution
- .95L Mitsubishi® L3E Liquid Cooled Diesel Engine (EPA Tier 4 Final)
- Fuel efficient design runs at 1800 RPM for extended engine life
- User-friendly, low maintenance, 1000-Hour service interval
- 39.9-Gallon Polyethylene Internal Fuel Tank
- Provides up to 164 hours of run time with all 4-lights On
- 120/240V - 20/30A Marathon Electric Brushless Alternator
- Robust design provides up to 6 kW of standby output
- Long life & low maintenance while providing +/- 6% voltage reg.
- Improved Engine Control System
- External, illuminated control panel with sealed switches
- Digital hour meter; Automatic low oil pressure/high temp. shutdown
- (1) 120V 20A GFCI Duplex Outlet & (1) 120/240V 30A (L14-30R) Twistlock Outlet
- Individually breakered for added safety during operation
- Corrosion-Proof Poly Shell

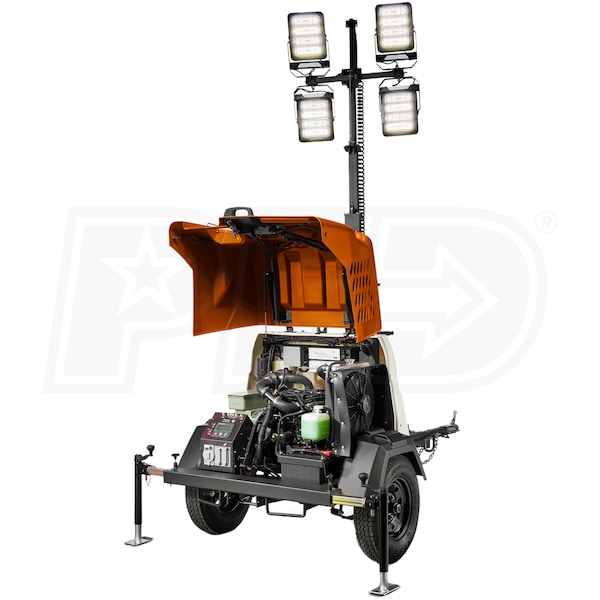

- Rear flip hood compartment provides unobstructed service access
- Tubular Steel Trailer w/ (3) 1200 lb. Tube & Sleeve Leveling Jacks
- DOT-approved LED tail, side, brake, and directional lights
- 13" ST175/80D13 - 6 ply wheel/tire; 47" track width
- 2" Ball hitch and safety chains with spring loaded safety hooks
- Includes Starting Battery
- CUSTOMERS MUST UNLOAD FROM FREIGHT CARRIER
- 2-Year / 2,000 Hour Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Diesel engine exhaust which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types


MLT6SMDS-STD3

General Information
Product Category
Light Tower
Overview
Product Category
Light Tower
Weight
1310 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
118 Inches
Product Width
57 Inches
Product Height
101 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Rated Watts
6000 Watts
Fuel Type
Diesel
Tank Size
39.9 Gallons
Fuel Tank Material
Plastic Resin
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
63
Lifting Eye
Yes
Battery
Included
Enclosure
Composite
Fuel Consumption
.243 gallons/hr
Engine
Engine Brand
Mitsubishi
Starting System
12-Volt Key Start
CC
950 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Plugs
NEMA 5-20R - GFCI
1
NEMA L14-30R
1
