Features
Grade
Style
Tow-Behind
Run Watts
1,400 Rated Watts
Voltage
Fuel
Diesel
Engine
Mitsubishi

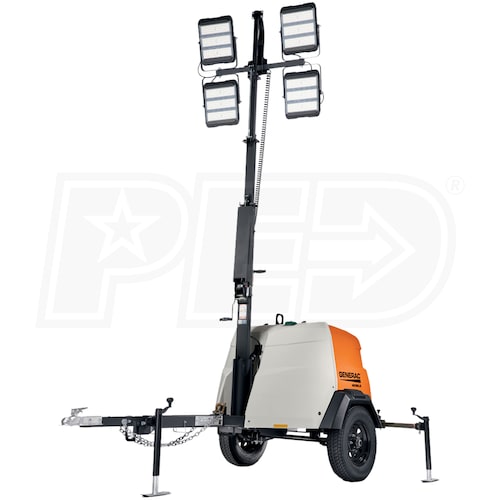

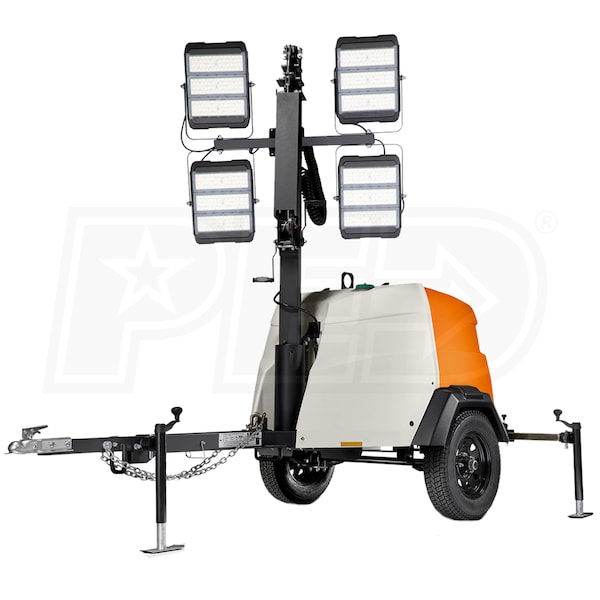

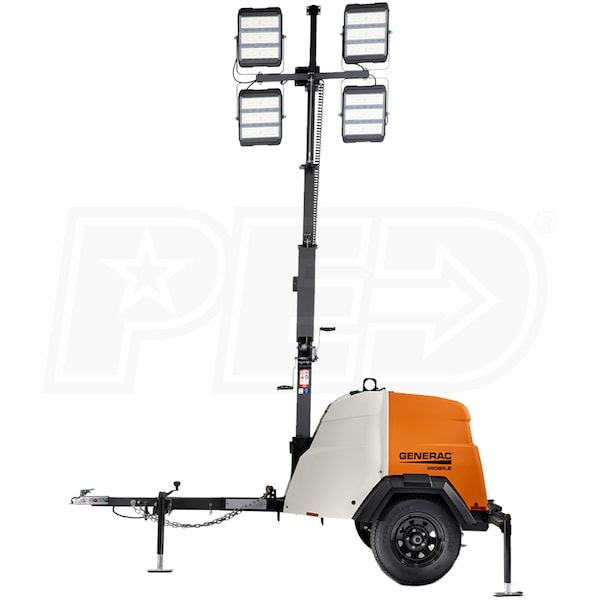

- Generac Mobile MLTS-3 - 1.4kW Towable Diesel Light Tower
- Smart, Simple, Small footprint for a wide variety of applications
- (4) x 390W (47K/188K Lumens) LED Light Fixtures
- IP68 LED Modules with 50,000-hour life
- Aluminum / Poly construction housing and cabinet mounted LED drivers
- 23-Foot, 5-Section Vertical Mast w/ Manual Winch
- 359° Ground rotational mast with mast fully extended
- Dual handle manual winch w/ brake system for easier and safer deployment
- Distinctive angle fixture mount for common light distribution
- .65L Mitsubishi® L2E Liquid Cooled Diesel Engine (EPA Tier 4 Final)
- Fuel efficient design runs at 1800 RPM for extended engine life
- User-friendly, low maintenance, 1000-Hour service interval
- 39.9-Gallon Polyethylene Internal Fuel Tank
- Provides up to 162 hours of run time with all 4-lights On
- Marathon Electric® Brushless Alternator
- Long life & low maintenance design
- Improved Engine Control System
- External, illuminated control panel with sealed switches
- Digital hour meter; Automatic low oil pressure/high temp. shutdown
- (1) Switch controls all light fixtures
- Corrosion-Proof Poly Shell
- Rear flip hood compartment provides unobstructed service access
- Tubular Steel Trailer w/ (3) 1200 lb. Tube & Sleeve Leveling Jacks
- DOT-approved LED tail, side, brake, and directional lights
- 13" ST175/80D13 - 6 ply wheel/tire; 47" track width
- 2" Ball hitch and safety chains with spring loaded safety hooks
- Includes Starting Battery
- CUSTOMERS MUST UNLOAD FROM FREIGHT CARRIER
- 2-Year / 2,000 Hour Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Diesel engine exhaust which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
MLTS-3
General Information
Product Category
Light Tower
Overview
Product Category
Light Tower
Weight
1110 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
118 Inches
Product Width
57 Inches
Product Height
101 Inches
Product Specs
Frequency
60 Hertz
Alternator
Brushless
Rated Watts
1400 Watts
Fuel Type
Diesel
Tank Size
39.9 Gallons
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
67
Lifting Eye
Yes
Enclosure
Composite
Fuel Consumption
.25 gallons/hr
Engine
Engine Brand
Mitsubishi
Starting System
12-Volt Key Start
CC
635 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
