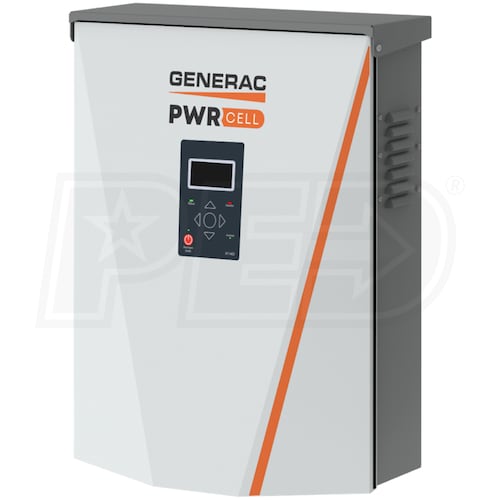

Generac PWRcell™ 7.6kW (120/240V Single-Phase) Inverter w/ 300A CTs

Model:

XVT076A03

Write A Review
$3,469.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 3-4 Weeks
synchrony card logo
$193 / Month
With our 18 months 0.00% APR*
18 fixed monthly payments required.
Generac PWRcell™ 7.6kW (120/240V Single-Phase) Inverter w/ 300A CTs
Generac PWRcell™ 7.6kW (120/240V Single-Phase) Inverter w/ 300A CTs
Model: XVT076A03
$3,469.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Generac PWRcell™ 7.6 kW 120/240V Single Phase Inverter
  • The industry's most feature-rich line of inverters
  • Bi-Directional, REbus™ Powered Design
  • A simple, efficient design for integrating smart batteries with solar
  • 7,600-Watt (Grid-Tie) & 8,000-Watt (Backup) Rated Watts
  • Provides up to 10,000 starting watts during backup operation
  • Plenty of power to start larger items around the house
  • User-Selectable Modes
  • For backup power, self-supply, time-of-use and zero-export
  • Grid Sell & Prioritized Charging From Renewables
  • Provides more flexibility to the homeowner
  • PWRcell™ Battery Cabinet & Batteries (Not Included)
  • Scale in size from 9 kWh to 18 kWh in a single cabinet
  • Add another cabinet for up to 36 kWh of power
  • Free System Monitoring w/ PWRview™ Web Portal & Mobile App
  • Provides real-time energy usage
  • Dashboards for solar & battery usage
  • Includes (2) 300-Amp Universal Current Transformers (CTS)
  • For main service panels up to 300-Amps
  • 10-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

XVT076A03
specs product image PID-107075
General Information
Product Category
Generator - Solar
Overview
Product Category
Generator - Solar
Weight
62.7 Pounds
Consumer Warranty
10 Years
Product Length
24.5 Inches
Product Width
19.25 Inches
Product Height
8 Inches
Additional Model Numbers

APKE00014, XVT076A03

Product Specs
Enclosure
NEMA 3R
AC Output / Grid-Tie
Rated AC Power Output
7600 Watts
AC Output Voltage
120/240V Single-Phase
AC Frequency
60 Hz
Max Continuous Output Current
32 A, RMS
Ground-Fault Isolation Detection
Included
Charge Battery From AC
Yes
THD (Current)
<2%
Typical Nighttime Power Consumption
<7 Watts
AC Output / Backup
Rated AC Backup Power Output (Islanded)
8000 Watts
Max AC Backup Power Output
10000 Watts
AC Backup Output Voltage
120/240V Single-Phase
AC Frequency
60 Hz
AC Circuit Breaker
50 Amps
THD Voltage
<2%
Automatic Switchover Time
<1 Seconds
Typical Nighttime Power Consumption
30 Watts
DC Input
DC Imput Voltage
360-420 VDC
Nominal DC Bus Voltage
380 VDC
Max Import Current
20
Max Inmput Current
30
Reverse Polarity Protection
Yes
Ground-Fault Isolation Detection
Yes
Transformerless, Ungrounded
Yes
Typical Nighttime Power Consumption
7 Watts
DC Input / Battery
Max Continuous Power
8000 Watts
Internal DC Distribution Breakers
4 x 2-Pole 30 Amp
DC Fuses on Plus & Minus
40 Amp
2-Pole Disconnection
Yes
Efficiency
Peak Efficiency
97%
CEC Weighted Efficiency
96.5%
