Generac Protector RD02025ADAE
Generac Protector RD02025ADAE
Hover to zoom
1 Of 5

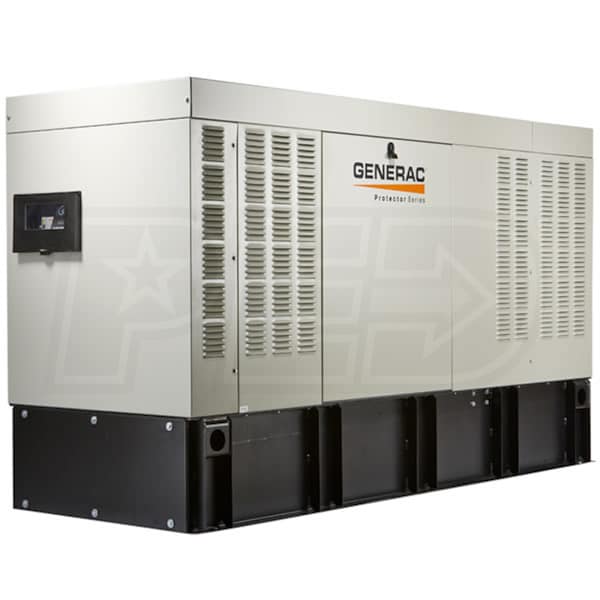

Generac Protector® 20kW Automatic Standby Diesel Generator w/ Mobile Link™ (120/240V Single-Phase)

Model:

RD02025ADAE

Write A Review
$14,797.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 8-12 Weeks
synchrony card logo
$222 / Month
With our 88 months 7.99% APR*
88 fixed monthly payments required.
Generac Protector® 20kW Automatic Standby Diesel Generator w/ Mobile Link™ (120/240V Single-Phase)
Generac Protector® 20kW Automatic Standby Diesel Generator w/ Mobile Link™ (120/240V Single-Phase)
Model: RD02025ADAE
$14,797.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Liquid Cooled)

Run Watts

20,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

Diesel

Engine

Mitsubishi

    ^Please Note - Requires Loading Dock or Forklift For Delivery^
  • Generac Protector® Series Diesel Standby Generator
  • Designed for residential and light commercial applications
  • Fully Automatic Operation When Paired w/ Generac ATS
  • Generator is only compatible with Generac Auto Transfer Switches
  • Includes Mobile Link™ Wi-Fi / Ethernet Connectivity*
  • Monitor generator status on a smart phone, tablet or PC
  • *Requires internet connection
  • Mitsubishi 2.5L In-Line 4-Cylinder Diesel Engine
  • Fuel efficient design runs at 1800 RPM for long engine life
  • Integrated 33.5-Gallon Double-Wall Base Fuel Tank
  • Provides up to 31 hours of run time @ 1/2 load
  • Two-Line LCD Evolution Controller
  • Easy viewing, monitoring & management of generator functions
  • Quiet-Test™
  • Runs at a lower RPM, is quieter and consumes less fuel
  • Isochronous Electronic Governor Control
  • Precise load response & voltage/frequency regulation (±1%)
  • Corrosion-Resistant Aluminum Enclosure
  • Enhanced durability, ideal for coastal & salt-water environments
  • Sound dampening design limits sound pressure to a low 70dB(A)
  • Code Ready - Compatibility With A Variety Of Environments
  • External Vent & Fill, UL/CUL 142-Listed Double Wall Based Tank
  • UL/CUL 2200-Listed Generator - 5-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

RD02025ADAE
specs product image PID-93139
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
1528 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
81 Inches
Product Width
31 Inches
Product Height
51 Inches
UPC
696471615562
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
20000 Watts
Fuel Type
Diesel
Rated Amps
83 Amps
Diesel Fuel Consumption @ 50% Load
1.03 gallons/hr
Tank Size
33.5 Gallons
Run Time @ 50% Load
31 Hours
Fuel Tank Material
Metal
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65 Test (70 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (700 CCA)
Enclosure
Aluminum
Circuit Breaker Size
100 Amps
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Mitsubishi
Starting System
12v Auto Start
CC
2500 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
