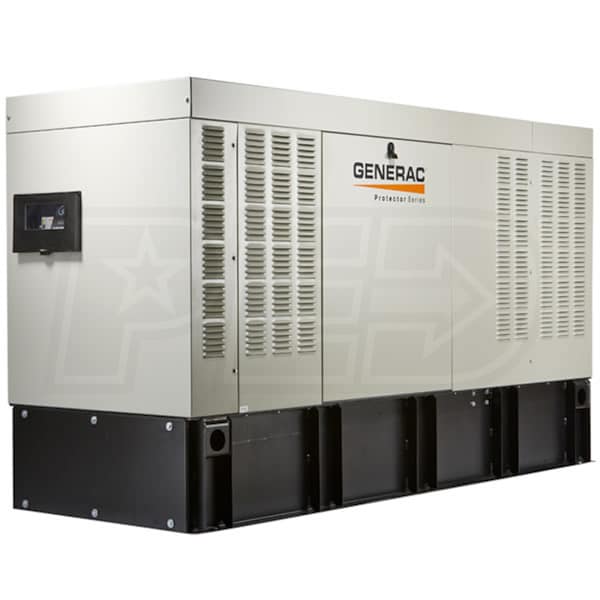

Generac Protector® 30kW Automatic Standby Diesel Generator w/ Mobile Link™ (120/240V Single-Phase)

Model:

RD03022ADAE

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Generac Protector® 30kW Automatic Standby Diesel Generator w/ Mobile Link™ (120/240V Single-Phase)
Generac Protector® 30kW Automatic Standby Diesel Generator w/ Mobile Link™ (120/240V Single-Phase)
Model: RD03022ADAE
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Liquid Cooled)

Run Watts

30,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

Diesel

Engine

Perkins

    ^Please Note - Requires Loading Dock or Forklift For Delivery^
  • Generac Protector® Series Diesel Standby Generator
  • Designed for residential and light commercial applications
  • Fully Automatic Operation When Paired w/ Generac ATS
  • Generator is only compatible with Generac Auto Transfer Switches
  • Includes Mobile Link™ Wi-Fi / Ethernet Connectivity*
  • Monitor generator status on a smart phone, tablet or PC
  • *Requires internet connection
  • Perkins 2.2L In-Line Turbocharged 4-Cylinder Diesel Engine
  • Fuel efficient design runs at 1800 RPM for long engine life
  • Integrated 61-Gallon Double-Wall Base Fuel Tank
  • Provides up to 41.6 hours of run time @ 1/2 load
  • Two-Line LCD Evolution Controller
  • Easy viewing, monitoring & management of generator functions
  • Quiet-Test™
  • Runs at a lower RPM, is quieter and consumes less fuel
  • Isochronous Electronic Governor Control
  • Precise load response & voltage/frequency regulation (±1%)
  • Corrosion-Resistant Aluminum Enclosure
  • Enhanced durability, ideal for coastal & salt-water environments
  • Sound dampening design limits sound pressure to a low 70dB(A)
  • Code Ready - Compatibility With A Variety Of Environments
  • External Vent & Fill, UL/CUL 142-Listed Double Wall Based Tank
  • UL/CUL 2200-Listed Generator - 5-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

RD03022ADAE
specs product image PID-82195
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
1857 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
95 Inches
Product Width
35 Inches
Product Height
59 Inches
UPC
696471072365
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
30000 Watts
Fuel Type
Diesel
Rated Amps
125 Amps
Diesel Fuel Consumption @ 50% Load
1.37 gallons/hr
Tank Size
61 Gallons
Run Time @ 50% Load
41.6 Hours
Fuel Tank Material
Metal
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65 Test (70 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (700 CCA)
Enclosure
Aluminum
Circuit Breaker Size
150 Amps
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Perkins
Starting System
12v Auto Start
CC
2200 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
