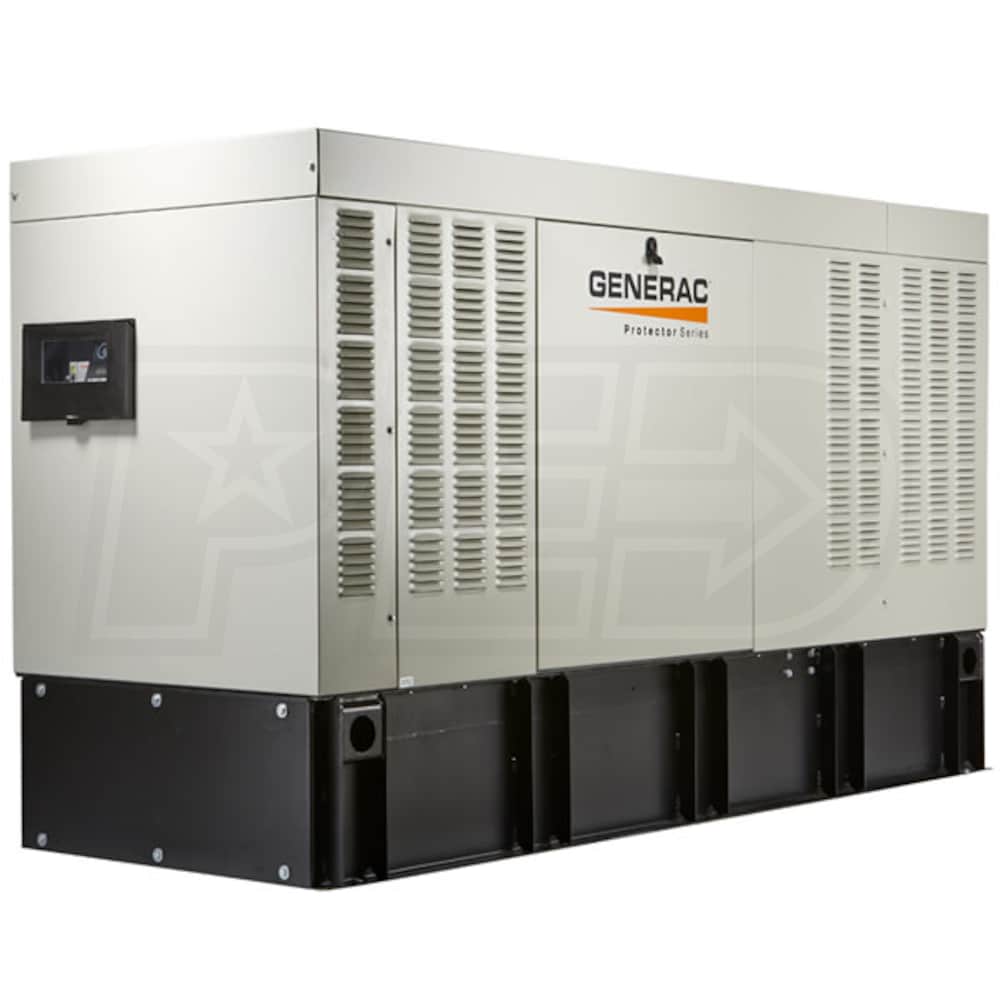

Generac Protector® 30kW Automatic Extended Run Standby Diesel Generator w/ Mobile Link™ (120/240V Single-Phase)
Model:
RD03022ADAL
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Standby (Liquid Cooled)
Run Watts
30,000 Rated Watts
Voltage
120/240 Single-Phase
Fuel
Diesel
Engine
Perkins
- Generac Protector® Series Diesel Standby Generator
- Designed for residential and light commercial applications
- Fully Automatic Operation When Paired w/ Generac ATS
- Generator is only compatible with Generac Auto Transfer Switches
- Includes Mobile Link™ Wi-Fi / Ethernet Connectivity*
- Monitor generator status on a smart phone, tablet or PC
- *Requires internet connection
- Perkins 2.2L In-Line Turbocharged 4-Cylinder Diesel Engine
- Fuel efficient design runs at 1800 RPM for long engine life
- Integrated, Extended-Run, 132-Gallon Double-Wall Base Fuel Tank
- Provides up to 96.4 hours of run time @ 1/2 load
- Two-Line LCD Evolution Controller
- Easy viewing, monitoring & management of generator functions
- Quiet-Test™
- Runs at a lower RPM, is quieter and consumes less fuel
- Isochronous Electronic Governor Control
- Precise load response & voltage/frequency regulation (±1%)
- Corrosion-Resistant Aluminum Enclosure
- Enhanced durability, ideal for coastal & salt-water environments
- Sound dampening design limits sound pressure to a low 70dB(A)
- Code Ready - Compatibility With A Variety Of Environments
- External Vent & Fill, UL/CUL 142-Listed Double Wall Based Tank
- UL/CUL 2200-Listed Generator - 5-Year Limited Warranty
^Please Note - Requires Loading Dock or Forklift For Delivery^
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
RD03022ADAL
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
2070 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
96 Inches
Product Width
35 Inches
Product Height
68 Inches
UPC
696471073706
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
30000 Watts
Fuel Type
Diesel
Rated Amps
125 Amps
Diesel Fuel Consumption @ 50% Load
1.37 gallons/hr
Tank Size
138.5 Gallons
Run Time @ 50% Load
96.4 Hours
Fuel Tank Material
Metal
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65 Test (70 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (700 CCA)
Enclosure
Aluminum
Circuit Breaker Size
150 Amps
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Perkins
Starting System
12v Auto Start
CC
2200 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
