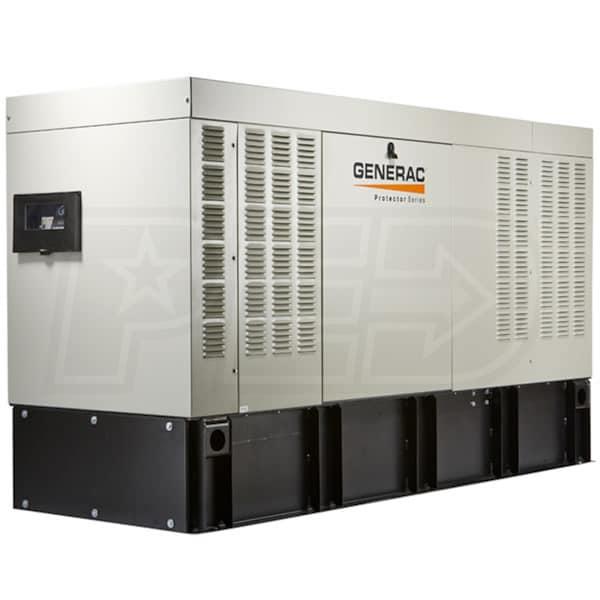

Generac Protector® 50kW Automatic Extended Run Standby Diesel Generator w/ Mobile Link™ (120/240V 3-Phase)
Model:
RD05033JDAL
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Standby (Liquid Cooled)
Run Watts
50,000 Rated Watts
Voltage
120/240 Three-Phase
Fuel
Diesel
Engine
Mitsubishi
- Generac Protector® Series Diesel Standby Generator
- For light commercial applications w/ 120/240V 3-Phase service
- Fully Automatic Operation When Paired w/ Generac ATS
- Generator is only compatible with Generac Auto Transfer Switches
- Includes Mobile Link™ Wi-Fi / Ethernet Connectivity*
- Monitor generator status on a smart phone, tablet or PC
- *Requires internet connection
- Mitsubishi 3.3L In-Line Turbocharged 4-Cylinder Diesel Engine
- Fuel efficient design runs at 1800 RPM for long engine life
- Integrated, Extended Run, 132-Gallon Double-Wall Base Fuel Tank
- Provides up to 65 hours of run time @ 1/2 load
- Two-Line LCD Evolution Controller
- Easy viewing, monitoring & management of generator functions
- Quiet Test
- Runs at a lower RPM, is quieter and consumes less fuel
- Isochronous Electronic Governor Control
- Precise load response & voltage/frequency regulation (±1%)
- Corrosion-Resistant Aluminum Enclosure
- Enhanced durability, ideal for coastal & salt-water environments
- Sound dampening design limits sound pressure to a low 70dB(A)
- Code Ready - Compatibility With A Variety Of Environments
- External Vent & Fill, UL/CUL 142-Listed Double Wall Based Tank
- UL/CUL 2200-Listed Generator - 5-Year Limited Warranty
^Please Note - Requires Loading Dock or Forklift For Delivery^
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
RD05033JDAL
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
2492 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
95 Inches
Product Width
36 Inches
Product Height
66 Inches
UPC
696471079111
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
50000 Watts
Fuel Type
Diesel
Rated Amps
150 Amps
Diesel Fuel Consumption @ 50% Load
2.02 gallons/hr
Tank Size
138.5 Gallons
Run Time @ 50% Load
65.3 Hours
Fuel Tank Material
Metal
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65 Test (70 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (700 CCA)
Enclosure
Aluminum
Circuit Breaker Size
175 Amps
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Mitsubishi
Starting System
12v Auto Start
CC
3300 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
