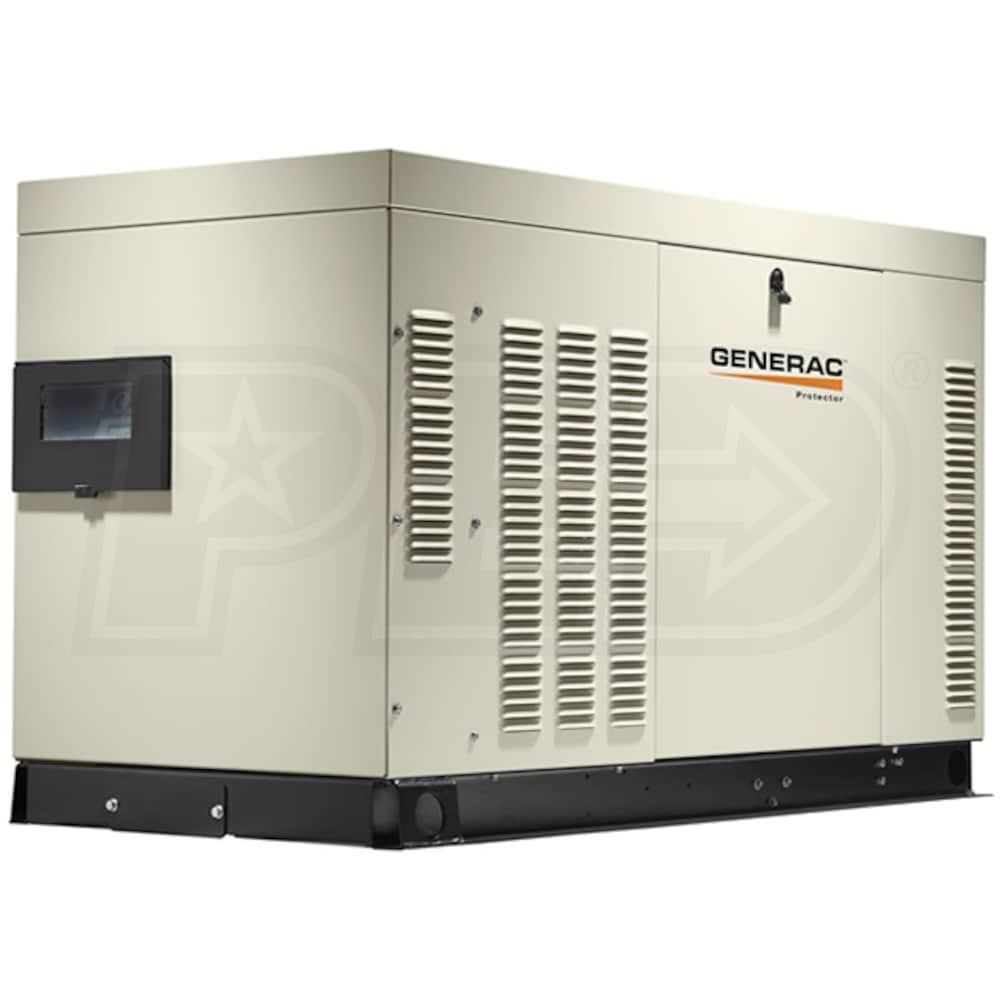

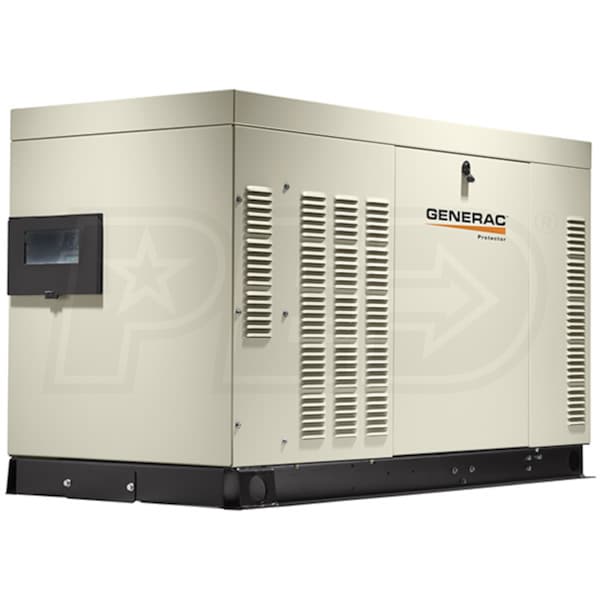

Generac Protector® 45kW Automatic Standby Generator (Steel)(120/240V Single-Phase)
Model:
RG04524ANSX
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Standby (Liquid Cooled)
Run Watts
45,000 Rated Watts
Surge Watts
45,000
Starting Watts
Fuel
LP/Natural Gas
Engine
Generac 2.4L 4-Cylinder
- Emergency Standby Power Generator
- Designed for large homes and small commercial buildings
- Runs off natural gas or LP fuel source
- Quiet-Test
- Low-speed exercise mode for quieter weekly tests; 61 dB @ 23'
- Multi-Lingual Evolution
- Two-Line LCD Display provides service & maintenance intervals
- Automotive-Style Engine
- Powerful Generac 2.4L 4-cylinder liquid-cooled engine
- Galvanneal Steel Enclosure
- Durable, powder-coat finish for superior weather protection
- Lockable, external viewing window for quick status check
- Automatic Shutdown Safety Feature
- High coolant temp, low coolant, low oil pressure and overspeed
- Mobile Link
- Easily check generator status via computer, tablet or smartphone
- Transfer Switch (Sold Separately)
- Customize your system based on your actual application
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
RG04524ANSX
Overview
Weight
1500 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
76.8 Inches
Product Width
35 Inches
Product Height
46.1 Inches
UPC
696471616743
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
45000 Watts
Surge Watts
45000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
45000 Watts
LP Power Capacity
45000 Watts
NG Fuel Consumption @ 50% Load
373 ft³/hr
NG Fuel Consumption @ 100% Load
730 ft³/hr
LP Fuel Consumption @ 50% Load
4.07 gallons/hr
LP Fuel Consumption @ 100% Load
8 gallons/hr
Rated Amps
188 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
61 Test (70 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (525 CCA)
Enclosure
Steel
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac 2.4L 4-Cylinder
CC
2400 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Transfer Switch Circuits
Circuit Breaker Size
200 Amps
