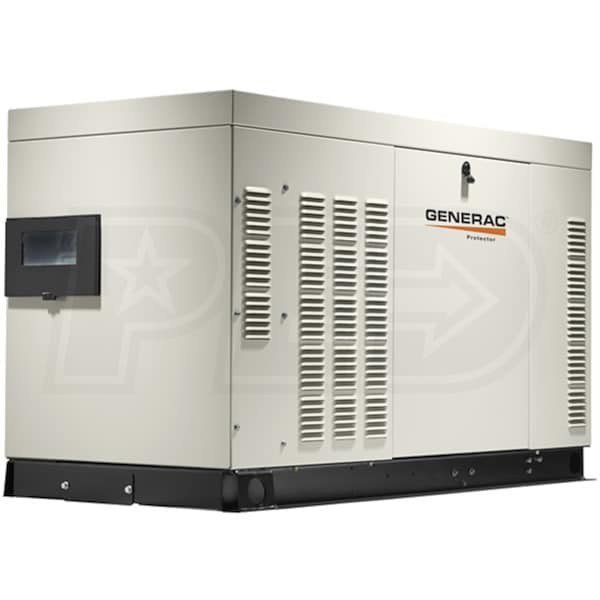

Generac Protector® Series 60kW Automatic Standby Generator (Aluminum)(120/240V Single-Phase)(NG)

Model:

RG06024ANAX

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Generac Protector® Series 60kW Automatic Standby Generator (Aluminum)(120/240V Single-Phase)(NG)
Generac Protector® Series 60kW Automatic Standby Generator (Aluminum)(120/240V Single-Phase)(NG)
Model: RG06024ANAX
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Liquid Cooled)

Run Watts

60,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

Natural Gas

Engine

Generac 2.4L 4-Cylinder

    ^Please Note - Requires Loading Dock or Forklift For Delivery^
  • Protector® Natural Gas Emergency Standby Power Generator
  • Have your questions answered when it's convenient for you
  • ^Please Note - Requires Loading Dock or Forklift For Delivery^
  • For commercial buildings w/ 120/240V service
  • WILL NOT WORK with LP fuel source
  • Low-speed exercise mode for quieter weekly tests; 65 dB @ 23'
  • Two-Line LCD Display provides service & maintenance intervals
  • Automotive-Style Engine
  • Powerful Generac 2.4L 4-cylinder liquid-cooled engine
  • Sound Attenuated, Acoustically Designed Aluminum Enclosure
  • Corrosion-resistant material ideal for salty air conditions
  • Lockable, external viewing window for quick status check
  • Automatic Shutdown Safety Feature
  • High coolant temp, low coolant, low oil pressure and overspeed
  • Mobile Link Compatible (Sold Separately)
  • Easily check generator status via computer, tablet or smartphone
  • Transfer Switch (Sold Separately)
  • Customize your system based on your actual application
  • UL 2200 Listed For Safety & Certified Power Ratings
  • 5-Year Limited Warranty + 24/7-365 Customer Support
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

RG06024ANAX
specs product image PID-16001
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
1230 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
76.8 Inches
Product Width
35 Inches
Product Height
46.1 Inches
UPC
696471616330
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
60000 Watts
Fuel Type
Natural Gas
NG Power Capacity
60000 Watts
NG Fuel Consumption @ 50% Load
483 ft³/hr
NG Fuel Consumption @ 100% Load
862 ft³/hr
Rated Amps
250 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65 Test (72 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
300 Amps
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac 2.4L 4-Cylinder
Starting System
12v Auto Start
CC
2400 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Transfer Switch Circuits
Circuit Breaker Size
300 Amps
