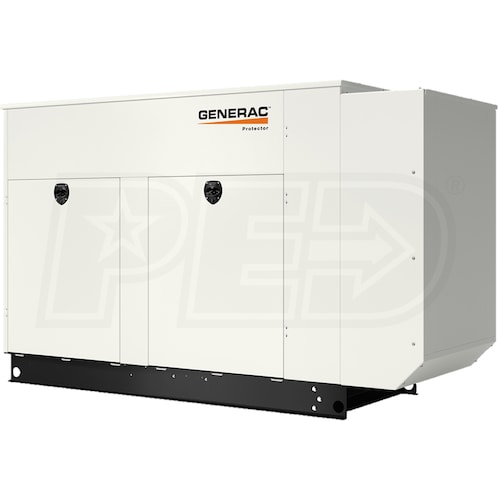

Generac Protector® 144kW Standby Generator w/ Mobile Link™ (120/240V Single-Phase) (NG) SCAQMD Compliant
Model:
RG15090ANAC
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Standby (Liquid Cooled)
Run Watts
144,000 Rated Watts
Voltage
120/240 Single-Phase
Fuel
Natural Gas
Engine
Generac
- SCAQMD Compliant
- Meets emissions requirements for sale in CA/MA
- Protector® RG15090 - 144kW Natural Gas Emergency Standby Generator
- Designed for large homes and small commercial buildings
- For 120/240 Volt Single-Phase applications
- Includes Mobile Link™ Wi-Fi / Ethernet Connectivity*
- Monitor generator status on a smartphone, tablet or PC
- *Requires internet connection
- *Automatic Operation Only*
- Requires automatic transfer switch (Not Included)
- Fully automatic operation when paired with Generac Smart Switch
- 5-Year Limited Warranty + 24/7-365 Customer Support
- Have your questions answered when it's convenient for you
- 9.0L Generac Turbocharged V8 Engine
- Hydraulic lifters for improved performance & less maintenance
- Operates at half the speed of other engines (1800 vs. 3600 RPM)
- True Power Technology
- Provides low Total Harmonic Distortion (<5%) for sensitive electronics
- Automatic Digital Voltage Regulation
- Allows for faster response time & maximum motor starting ability
- Evolution™ Digital Controller
- Multilingual, 2-Line LCD display for simple, straightforward operation
- Programmable-exerciser helps prevent oil seal drying and damage
- QUIET-TEST™ Self-Test Mode
- Runs at a lower RPM for a five or twelve-minute test
- Aluminum Enclosure w/ RhinoCoat™ Powder-Coated Finish
- Corrosion resistant design for all weather conditions
- Coolant Isolation Valves
- Allows for easier installation of extreme cold weather kits
- Generac Standby Generators & Engines - Built In The USA
- Built in the USA using domestic & foreign parts
- UL 2020 Listed
^Please Note - Requires Loading Dock or Forklift For Delivery^
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
RG15090ANAC
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
3278 Pounds
CARB Compliant
Yes
Certification
SCAQMD
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
110 Inches
Product Width
50.5 Inches
Product Height
68.1 Inches
Installation Available
No
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
144000 Watts
Fuel Type
Natural Gas
NG Power Capacity
144000 Watts
NG Fuel Consumption @ 50% Load
1127 ft³/hr
NG Fuel Consumption @ 100% Load
2042 ft³/hr
Rated Amps
600 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
80
Hour Meter
Yes
Transfer Switch
Automatic (Not Included)
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
700 Amps
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Prime Power
No
Engine
Engine Brand
Generac
Starting System
12v Auto Start
CC
8860 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
