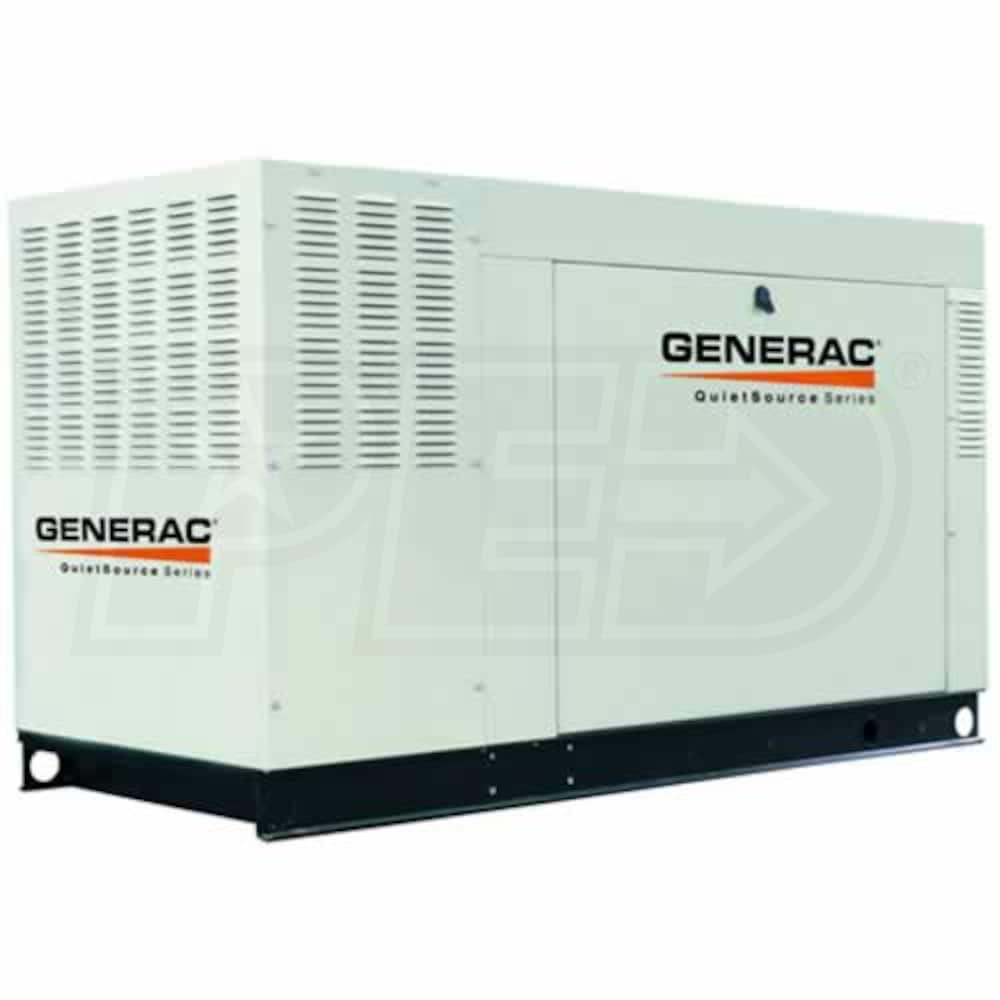

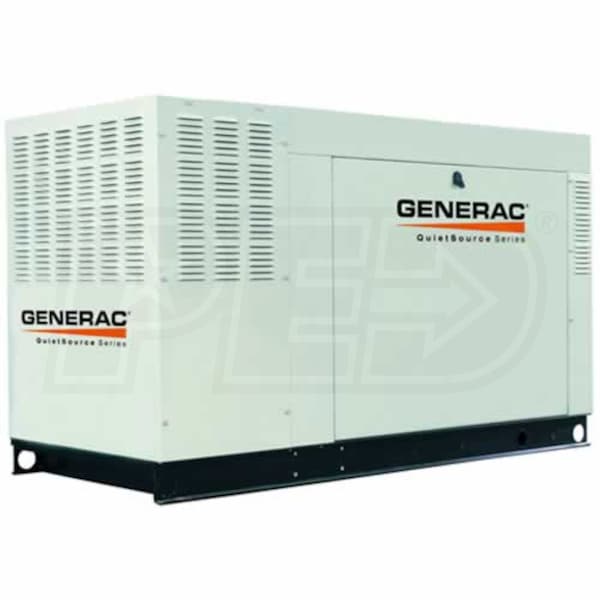

Generac QuietSource Series™ 48 KW Standby Power Generator (120/240V 3-Phase)
Generac QuietSource Series™ 48 KW Standby Power Generator (120/240V 3-Phase)
Model: QT04854JNAX
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Liquid Cooled)

Run Watts

48,000 Rated Watts

Surge Watts

48,000
Starting Watts

Fuel

LP/Natural Gas

Engine

Generac 5.4L V-8

  • Emergency Standby Power Generator
  • Designed for commercial buildings with 120/240V 3-Phase service
  • Runs off natural gas or LP fuel source
  • Whisper-Test
  • Low-speed exercise mode for quieter weekly tests
  • Exercises at a quiet 63 decibels at 23 feet
  • Sound level comparable to an idling car
  • Automotive-Style Engine
  • Powerful Generac V8 engine
  • Operates at half the speed of other engines (1800 vs. 3600 RPM)
  • Runs at a quiet 68 decibels at 23 feet under load
  • Aluminum Enclosure
  • Corrosion-resistant material ideal for salty air conditions
  • Sound attenuated acoustically designed enclosure
  • Tri-Lingual Digital Nexus™ Controller
  • Two-Line LCD Display provides service & maintenance intervals
  • Automatic Shutdown
  • High coolant temp, low coolant, low oil pressure and overspeed
  • Transfer Switch (Sold Separately)
  • Fork Lift or Loading Dock is Required for Delivery

Specifications

QT04854JNAX
specs product image PID-8028
Overview
Weight
1516 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Standby Generator
Product Length
77 Inches
Product Width
34 Inches
Product Height
45 Inches
UPC
696471613322
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Rated Watts
48000 Watts
Surge Watts
48000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
48000 Watts
LP Power Capacity
48000 Watts
NG Fuel Consumption @ 50% Load
392 ft³/hr
NG Fuel Consumption @ 100% Load
756 ft³/hr
LP Fuel Consumption @ 50% Load
4.14 gallons/hr
LP Fuel Consumption @ 100% Load
7.96 gallons/hr
Rated Amps
144 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
63 Test (68 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (525 CCA)
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac 5.4L V-8
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
