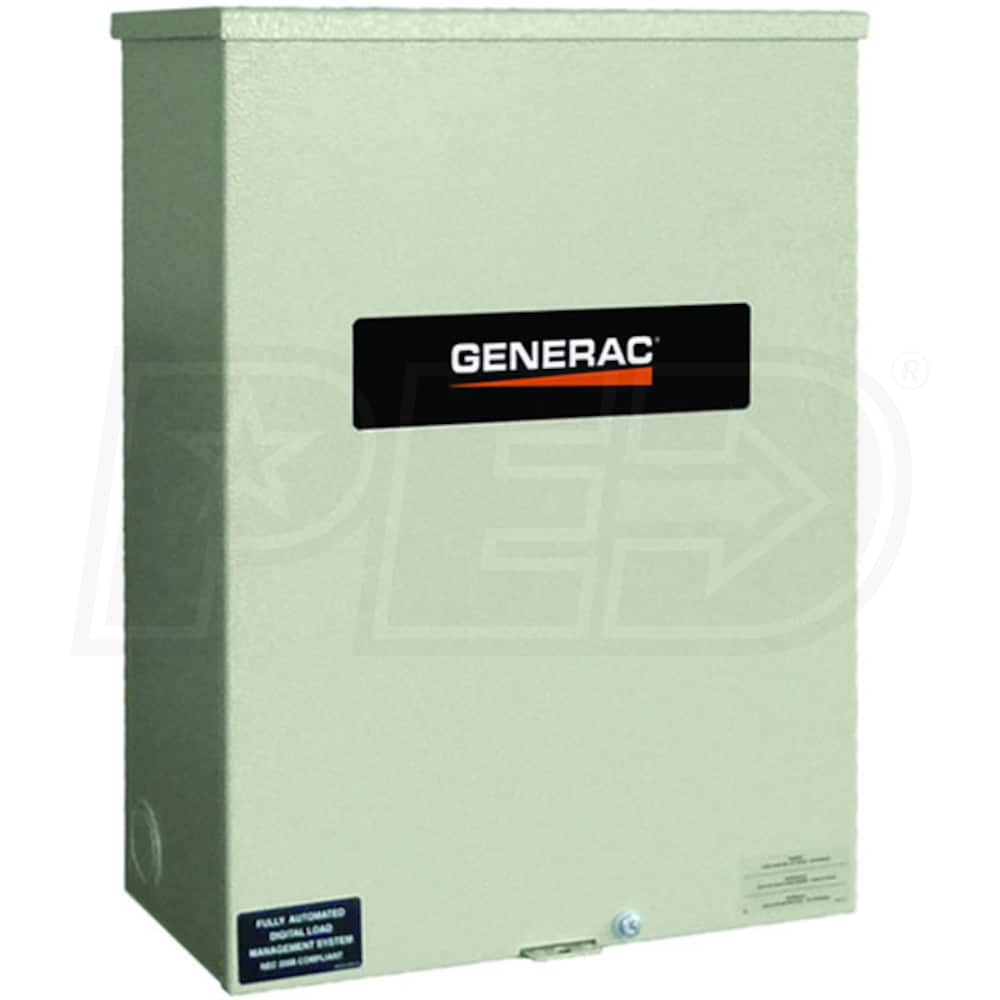

Generac 200-Amp Outdoor Automatic Transfer Switch w/ Power Management
Model:
RTSP200A3
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Type
Standard
Amp Rating
200
Load Mgmt.
Compatible
Voltage
120/240 Single-Phase
Enclosure
NEMA 3R
- 200-Amp Automatic Transfer Switch w/ Power Management
- For Generac Evolution™ & Generac Nexus™ Controllers
- Leverages digital power management technology (SMM)
- Allows your generator to work smarter, not harder
- Intelligently Manage Electrical Loads w/ Smart Management Modules
- Customizable load priority for each module provides flexibility
- Accomodates up to (8) SMM modules (Sold Separately)
- Standard Installation
- Requires a sub-panel for overload protection
- NEMA 3R Indoor/Outdoor Rated
- Aluminum, wall mountable weather-proof enclosure
- Electrostatically applied and baked powder coating paint (Gray)
- Tech Spec Summary:
- Load transition type: Open Transition
- Withstand rating: 10,000 Amps
- Lug range: 2/0 - #14
- For Use With Generac Generators Only
- 5-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
RTSP200A3
Overview
Weight
20 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
20 Inches
Product Width
14.6 Inches
Product Height
7.09 Inches
UPC
696471616439
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Compatible
ATS Load Shedding
Compatible
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes
Reviews
(1)
Generac RTSP200A3 Reviews & Ratings
How-To Articles
How To Pick the Perfect Automatic Transfer Switch
I recently spoke with someone who wanted to back up their home with a standby g...
How to Avoid Tripping a Generator With a Bonded Neutral
Does your generator outlet trip every time you connect it to your home's transf...
How to Pick the Perfect Manual Transfer Switch
During a sudden power outage, you probably don’t feel like running multip...
