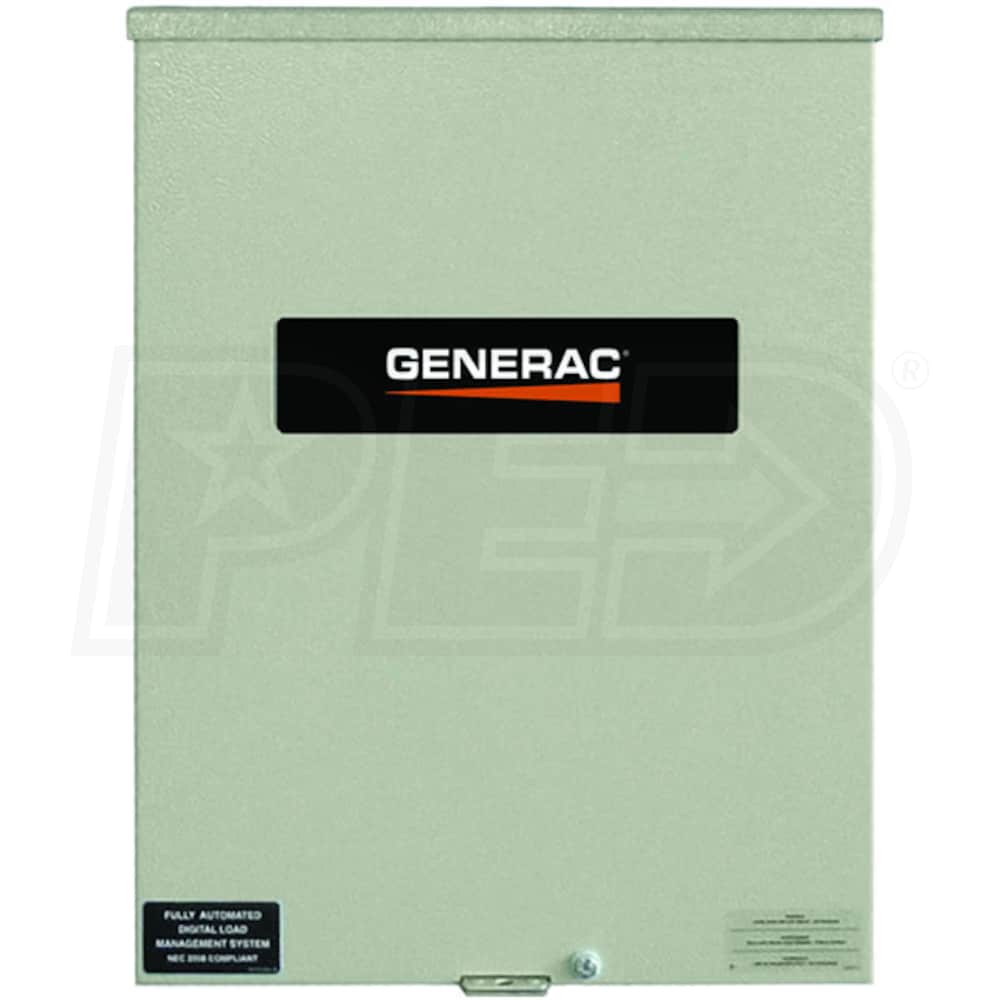

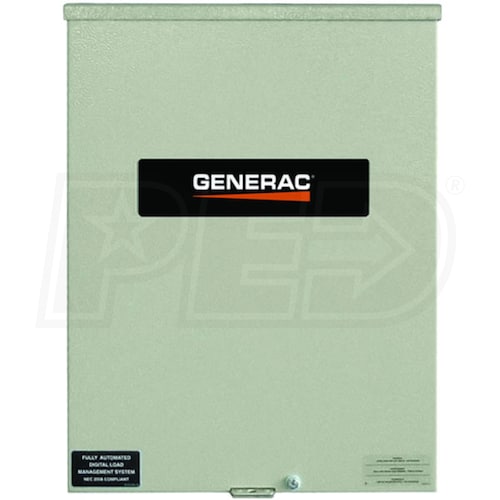

Generac 400-Amp Automatic Smart Transfer Switch w/ Power Management (Service Disconnect)
Model:
RTSW400A3
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Type
Service Disconnect
Amp Rating
400
Load Mgmt.
Built-In
Voltage
120/240 Single-Phase
Enclosure
NEMA 3R
- 400-Amp Automatic Smart Transfer Switch
- For Generac Evolution
- Digital Power Management Technology (DPM)
- Allows your generator to work smarter, not harder
- Be Smart....Get More Out Of Your Generator
- Cycles power on and off as needed for different appliances
- Manage Up To (4) Individual HVAC Loads - No Hardware Rec'd
- Great for homes with multiple Air conditioners (24 VAC controlled)
- Up To (8) Generac Load Managers (Sold Separately)
- Frequency (Hz) monitoring design, no control wire required
- Versatile design, easily prioritize loads & lock-out non-essential loads
- Service Entrance Rated
- Installs between main meter & service panel
- NEMA 3R Indoor/Outdoor Rated
- Aluminum, wall mountable weather-proof enclosure
- Electrostatically applied and baked powder coating paint (Gray)
- Tech Spec Summary: Only For Use w/ Generac Generators
- Load Transition Type: Open Transition
- Withstand Rating: 22,000 Amps --- Lug Range: #4 or 2-250 MCM
- 5-Year Limited Warranty - UL Listed
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
RTSW400A3
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
140 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
48 Inches
Product Width
22 Inches
Product Height
10 Inches
UPC
696471619935
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
96000 Watts
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Reviews
(12)
Generac RTSW400A3 Reviews & Ratings
Customer Photos and Videos
400 AMP Install
By Morgan H
Tennessee
Purchased 07/27/2023 |
Review Posted 10/05/2023
The picture on the website is the smaller one, the 400 amp panel is what you would expect this to be. Its well built but simple.
In the Generac system most of the smarts is in the controller and not in the transfer switch, so it would be a challenge to use this for other products. That being said when used with a generac genset it performs well. It should also be noted that you do not have the option to transfer the load when doing the normal scheduled exercise. There is also no way to see the current load, voltage or frequency so if thats important you will have to do this externally.
In the Generac system most of the smarts is in the controller and not in the transfer switch, so it would be a challenge to use this for other products. That being said when used with a generac genset it performs well. It should also be noted that you do not have the option to transfer the load when doing the normal scheduled exercise. There is also no way to see the current load, voltage or frequency so if thats important you will have to do this externally.
Morgan H Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I'd Buy It Again, Exceeded Expectations
400 AMP Transfer Switch
By Donald M
Ohio
Review Posted 09/11/2022
Product was shipped immediately and received within two days. Great quality and performs great. We are extremely happy with this product and the service ordering it.
Donald M Recommends This
Was this review helpful?
Manufacturer Response
Thank you for taking time out of your day to provide us with your valuable feedback. If you run into any questions, please give us a call at 888-436-3722!
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I'd Buy It Again
Cons:
None
It Is A Big Box
By Tony D.
Brookville, Ohio
Purchased 01/05/2022 |
Review Posted 01/28/2022
The 400 amp transfer switch was shipped to us in a timely manner and in good condition. However, the 5/16 nuts were missing from the internal mounting plate studs They hold in place the whole base when the nuts are torqued down on the studs. That is the reason for the poor quality rating. This was very odd and not normal for any Generac product. It is not a reflection on Electric Generators Direct as they would have never seen inside this transfer switch. It is a good thing there was a hardware within a few miles.
Tony D. Recommends This
Was this review helpful?
Manufacturer Response
Thank you for taking time out of your day to provide us with your valuable feedback. If you run into any questions, please give us a call at 888-436-3722!
Rating Breakdown
4/5
1/5
5/5
4/5
Pros:
Features, Easy To Use, Id Buy It Again, Durable
Cons:
See Above
Very Nice
By Larry R.
Knox, Pennsylvania
Purchased 06/10/2021 |
Review Posted 07/01/2021
This 400amp Generac transfer switch is very well made.
Larry R. Recommends This
Was this review helpful?
Manufacturer Response
Thank you for taking time out of your day to provide us with your valuable feedback. If you run into any questions, please give us a call at 888-436-3722!
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Features, High Quality, Easy To Use, Id Buy It Again
Transfer Switch
By Lawrence B.
Spring, Texas
Purchased 10/13/2020 |
Review Posted 02/18/2021
Good product.
Lawrence B. Recommends This
Was this review helpful?
Manufacturer Response
Thank you for taking time out of your day to provide us with your valuable feedback. If you run into any questions, please give us a call at 888-436-3722!
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Features, Id Buy It Again, High Quality, Id Buy It Again
Cons:
Expensive
Good, Well Built ATS
By Michael F.
Vancouver, Washington
Purchased 10/16/2020 |
Review Posted 12/24/2020
Easy install.
Michael F. Recommends This
Was this review helpful?
Manufacturer Response
Thank you for taking time out of your day to provide us with your valuable feedback. If you run into any questions, please give us a call at 888-436-3722!
Rating Breakdown
5/5
5/5
5/5
3/5
Pros:
Reliable, Id Buy It Again, Easy To Use, High Quality
Cons:
Heavy, Expensive
Good Product Ship Times Suck
By Ron S.
morgan hill, California
Purchased 07/25/2020 |
Review Posted 08/25/2020
Biggest complaint is the ship time your customer service is OK more is needed to help the installer
Ron S. Recommends This
Was this review helpful?
Manufacturer Response
Thank you for the rating, we appreciate your feedback. If you have any questions, please do not hesitate to contact our customer support team at 888-GENERAC (436-3722).
Rating Breakdown
5/5
4/5
4/5
3/5
Pros:
Features, Id Buy It Again, Easy To Use, Reliable
Cons:
Heavy, Expensive
Perfect Fit
By Jack S.
Lake Worth, Florida
Purchased 05/26/2020 |
Review Posted 06/18/2020
This was the perfect solution for my whole house power needs.
Jack S. Recommends This
Was this review helpful?
Manufacturer Response
Thank you for the rating, we appreciate your feedback. If you have any questions, please do not hesitate to contact our customer support team at 888-GENERAC (436-3722).
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Id Buy It Again, Features, Price, Fast
Slow Delivery
By Jonathan S.
Southampton, New York
Purchased 03/08/2019 |
Review Posted 05/06/2019
No Issues with the product.
Jonathan S. Recommends This
Was this review helpful?
Manufacturer Response
Thank you for your review, we appreciate your feedback. If you have any questions, please do not hesitate to contact our customer support team at 888-GENERAC (436-3722).
Rating Breakdown
5/5
5/5
5/5
5/5
Quality Automatic Transfer Switch!
By D G
Lebanon, Pennsylvania
Purchased 12/07/2018 |
Review Posted 12/31/2018
This automatic transfer switch is a quality product that we have used a number of times.
D G Recommends This
Was this review helpful?
Manufacturer Response
Thank you for the great review, we appreciate your feedback. If you any questions, please do not hesitate to contact our customer support team at 888-GENERAC (436-3722).
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Durable, Quiet, Price, I'd Buy It Again
Product Q&A
(2)
Product Questions
Answered by Jared, the Generator Expert
Will the lugs in this switch allow for 2 4/0 conductors for (2) 200 amp panels?
EJ H.
from Ohio
December 13, 2016
My installer is asking if this unit has a breaker? Will mate this transfer switch to a Model 6721 16KW Generac.
Thank you.
Rob Smyth
from West Virginia
June 30, 2016
