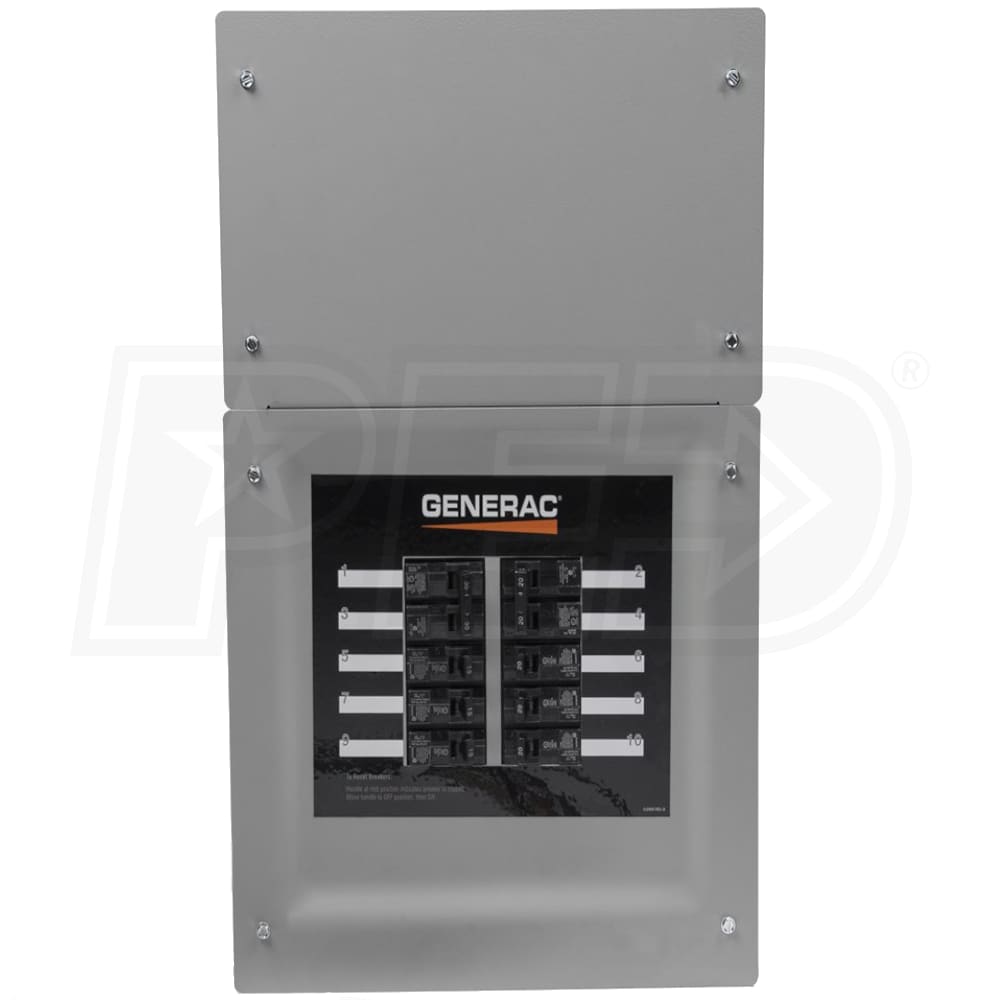

Generac 50-Amp Indoor Automatic Transfer Switch w/ 10-Circuit Load Center
Model:
RXG10EZA1W
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Type
Load Center
Amp Rating
50
Circuits
10
Voltage
120/240 Single-Phase
Enclosure
NEMA 1R
- 50-A Indoor Automatic Transfer Switch w/ 10-Circuit Load Center
- Perfect for backing up emergency circuits
- Steel NEMA-1 Indoor Enclosure
- Electrostatically applied and baked powder paint
- Breakers:
- 3 x 15A (120V) 1-Pole
- 3 x 20A (120V) 1-Pole
- 1 x 20A (240V) 2-Pole
- 1 x 30A (240V) 2-Pole
- Max Generator Size 17kW
- For Use With Generac Standby Generators Only
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
RXG10EZA1W
Overview
Weight
30 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
22.5 Inches
Product Width
15.4 Inches
Product Height
3.8 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12000 Watts
Rated Amps
50 Amps
Max Circuits
10
Enclosure
NEMA 1R
Number of Circuit Breakers
10
Transfer Switch Style
Pre-Wired (10-Circuit)
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
50 Amps
Max Generator Input
50 Amps
Maximum Wattage
12000 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
3
20A 120V
3
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
