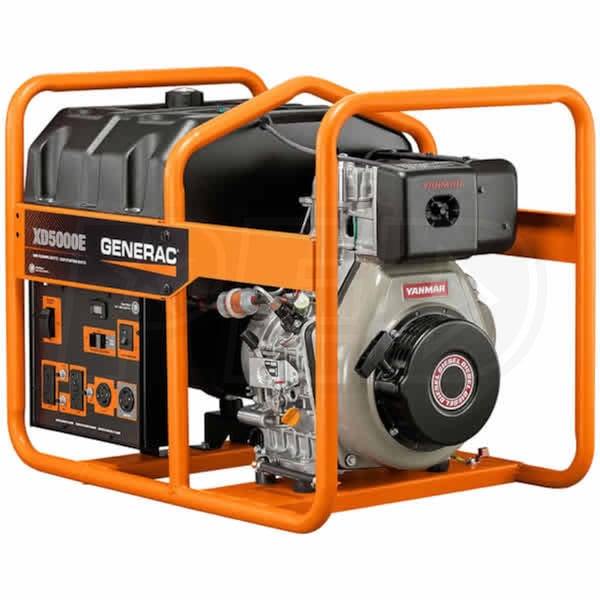

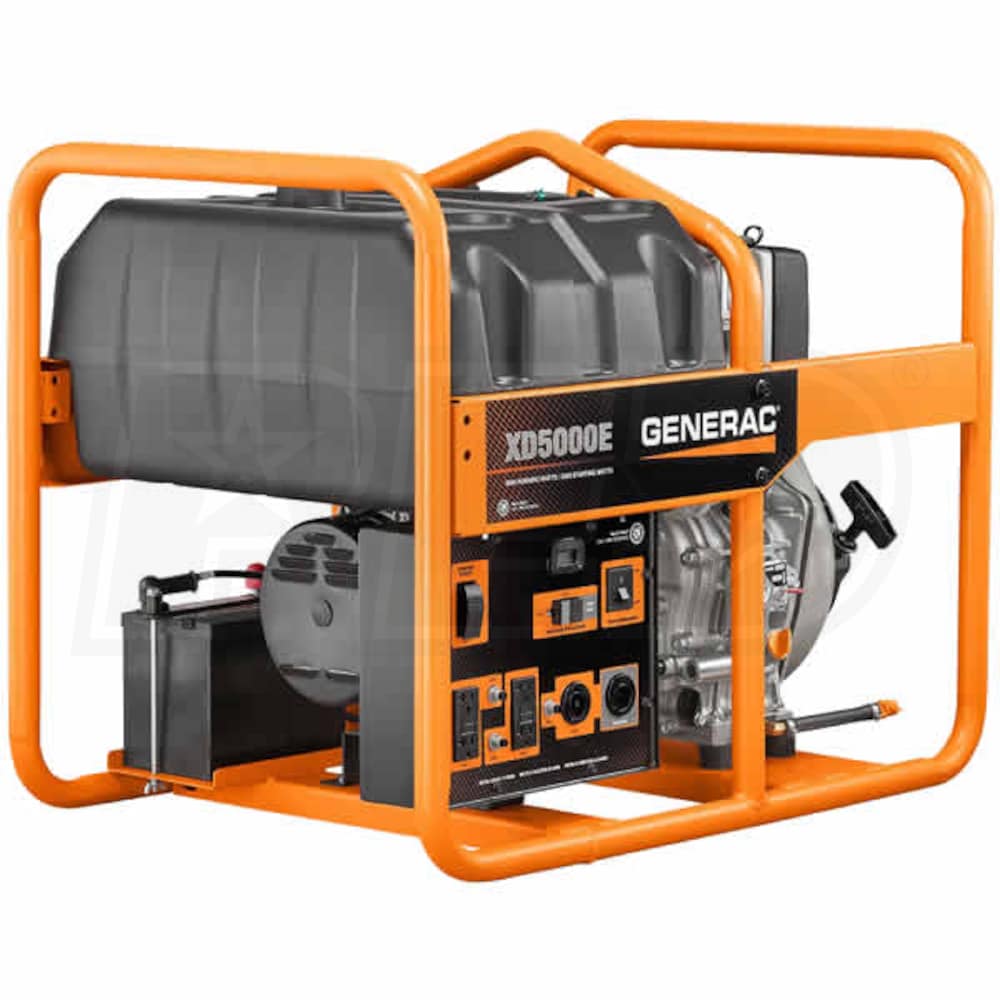

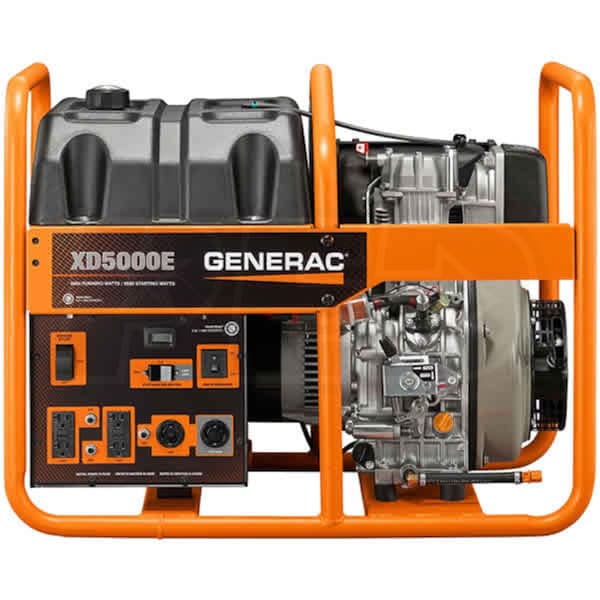

Generac XD5000E- 5000 Watt Electric Start Portable Diesel Generator (CARB)

Model:

XD5000E

Recommended
Write A Review
$4,019.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Backordered
Estimated Availability January 23, 2025
Shipping to60601
synchrony card logo
$224 / Month
With our 18 months 0.00% APR*
18 fixed monthly payments required.
Generac XD5000E- 5000 Watt Electric Start Portable Diesel Generator (CARB)
Generac XD5000E- 5000 Watt Electric Start Portable Diesel Generator (CARB)
Model: XD5000E
$4,019.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Semi-Pro

Style

Portable

Run Watts

5,000 Rated Watts

Surge Watts

5,500
Starting Watts

Fuel

Diesel

Engine

Yanmar

  • Generac XD Series Residential Diesel Portable Generator
  • Ideal for emergency backup, jobsites & agricultral applications
  • 435cc Yanmar LW Series Air-Cooled Diesel Engine
  • Industrial grade, fuel efficient, less maintenance & long life
  • Electric Start w/ Recoil Backup (Battery Not Included) 12V 35Ah Group U1
  • Single touch design makes starting an easy task
  • Low Oil Shutdown
  • Provides added safety against engine damge
  • TruePower™ Technology - Less Than 6% THD
  • Provides clean, smooth operation of sensitive electronics
  • 12-Gallon Long Run Fuel Tank w/ Fuel Gauge
  • Provides a run-time of up to 32.4 hours @ 1/2 load

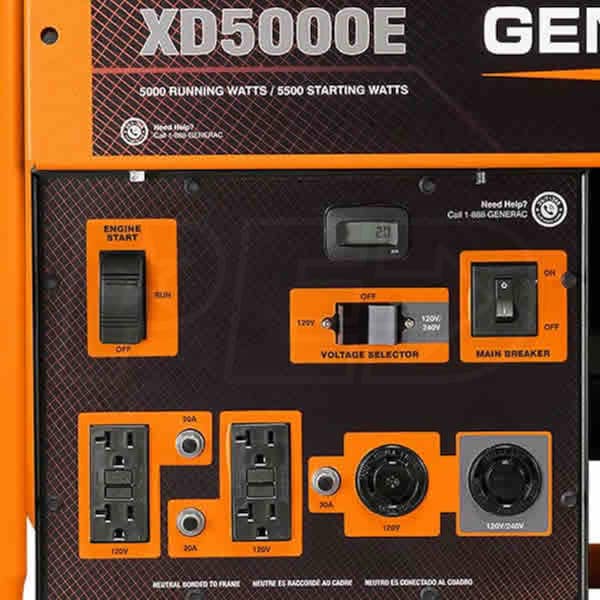

  • 120/240V Selector "Full Power" Switch
  • Gives you more usable power and added flexibility
  • 30A 120/240V (L14-30R) Twist-Lock Receptacle***
  • Allows for connection to a manual transfer switch (MTS)
  • Allows for connection to a convenience cord
  • 1-1/4" Welded Steel Tube Cradle & Integrated Lifting Eye
  • Durable, strong protection for easy transport & security on the job
  • Hour Meter w/ Maintenance Resets
  • Easily monitor run time and track maintenance intervals
  • UNIT DOES NOT HAVE IDLE CONTROL (misprint on spec sheet)
  • 2-Year Limited Warranty
  • ***Note - Allows You To Get Maximum Power From Generator
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L14-30R
XD5000E
specs product image PID-50700
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Weight
247 Pounds
CARB Compliant
Yes
Certification
CARB
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Portable Generator
Product Length
33.1 Inches
Product Width
22.6 Inches
Product Height
26.6 Inches
UPC
696471068641
Additional Model Numbers

6864, XD5000E

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
5000 Watts
Surge Watts
5500 Watts
Fuel Type
Diesel
Rated Amps
21 Amps
Portability Kit
Sold Separately
Tank Size
12 Gallons
Run Time @ 50% Load
32.4 Hours
Fuel Tank Material
Plastic
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
Yes
Battery
Not Included
Grade Type
Semi-Pro
Low THD
No
Engine
Engine Brand
Yanmar
Starting System
12-Volt Button Start w/ Recoil
CC
435 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
