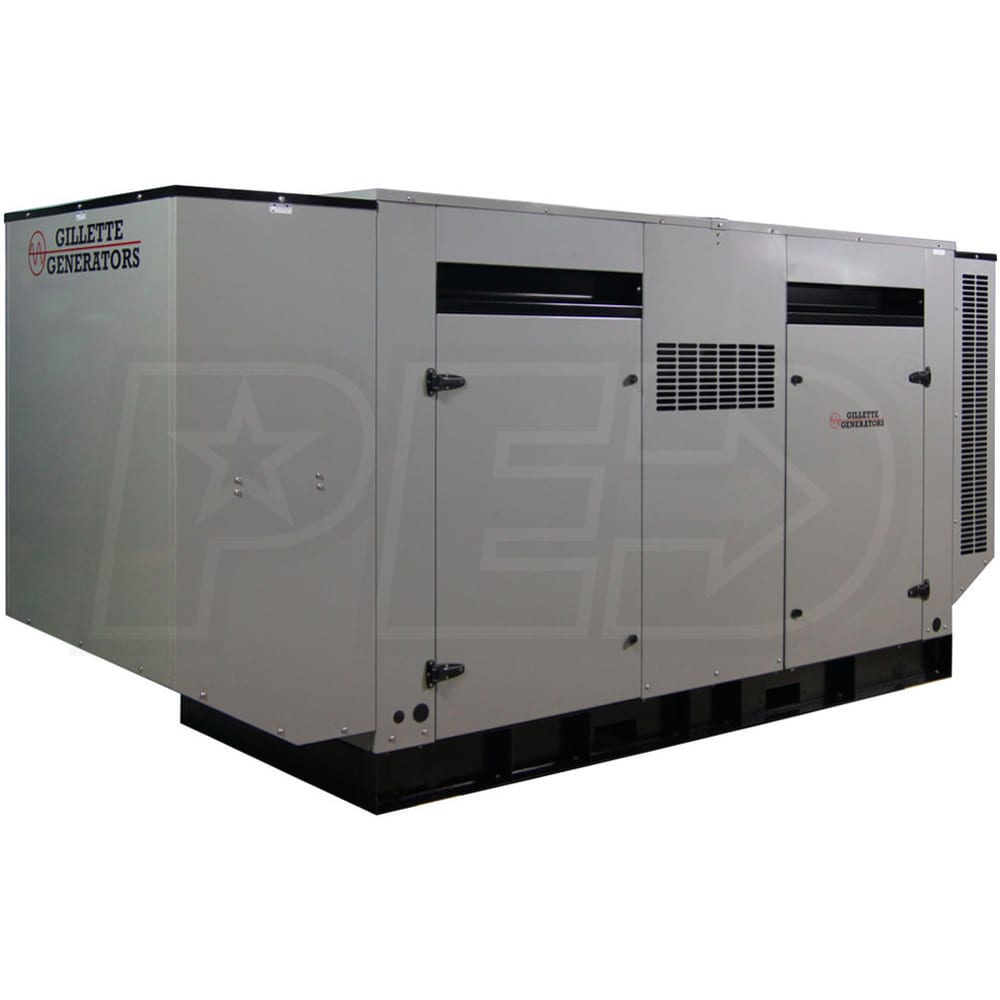

Gillette PR-1300 - 130 kW Prime Power Generator (NG - 120/240V Single-Phase)

Model:

PR-1300-1-1

Write A Review
Gillette PR-1300 - 130 kW Prime Power Generator (NG - 120/240V Single-Phase)
Gillette PR-1300 - 130 kW Prime Power Generator (NG - 120/240V Single-Phase)
Model: PR-1300-1-1
Call 1 (800) 800-3317 for pricing and order information.
Features
Specifications
Reviews
How-To Articles
Manuals
Factory-Direct
Ships in 8-12 Weeks
Share

Features

Grade

Professional

Style

Standby (Liquid Cooled)

Run Watts

130,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

Natural Gas

Engine

PSI

    ^Please Note - Requires Loading Dock or Forklift For Delivery^
  • Gillette PR-1300 - 130kW Prime Power Natural Gas Generator
  • For applications with 120/240V Single-Phase service
  • Please contact us for additional voltage options

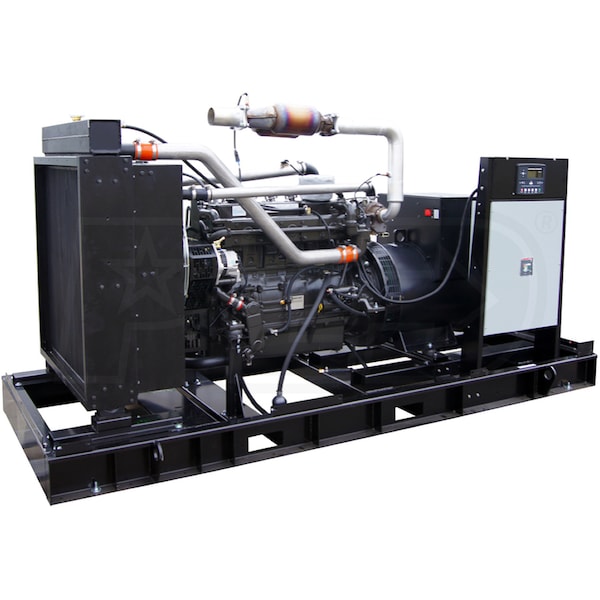

  • 8.1L Power Solutions (PSI) 6-Cylinder Liquid Cooled Engine
  • Provides long life, high performance, and great fuel efficiency
  • Electronic governor for precise isochronous frequency regulation
  • Stamford Brushless Alternator (UL Certified)
  • Circuit-breaker protection, wired to gen-set
  • Self-ventilated and drip proof construction
  • Automatic Voltage Regulation (+/- 1/2 %)
  • Solid state, frequency compensated design
  • Under-speed and Over-excitation protection
  • Deep Sea 7420 Generator Controller
  • Digital microprocessor w/ logic for programming in the field
  • Backlit LCD display for engine/generator status and warnings
  • Stop / Manual / Auto Modes and automatic engine shutdowns
  • Level 2 - Weather / Soundproof Aluminum Housing
  • Enamel Powder Coat for corrosion resistance
  • 18/8 Stainless Steel hardware for maximum enclosure life
  • Includes Critical Grade Muffler
  • Operates at only 75 dB @ 23'
  • 2-Stage Battery Float Charger (Battery Not Included)
  • Also includes battery tray, cables and hold down straps
  • 12 Month / 2000 Hour (Engine) & 24 Month / 1000 Hour Generator Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

PR-1300-1-1
specs product image PID-97133
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
6545 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
174 Inches
Product Width
52 Inches
Product Height
80 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
130000 Watts
Fuel Type
Natural Gas
NG Power Capacity
130000 Watts
NG Fuel Consumption @ 50% Load
769 ft³/hr
NG Fuel Consumption @ 100% Load
1400 ft³/hr
Rated Amps
542 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
75
Hour Meter
Yes
Voltage Meter
Yes
Battery
Not Included (700 CCA)
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Professional
Prime Power
Yes
Engine
Engine Brand
PSI
Starting System
12v Auto Start
CC
8100 CC
Consumer Engine Warranty
1 Year
Commercial Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
