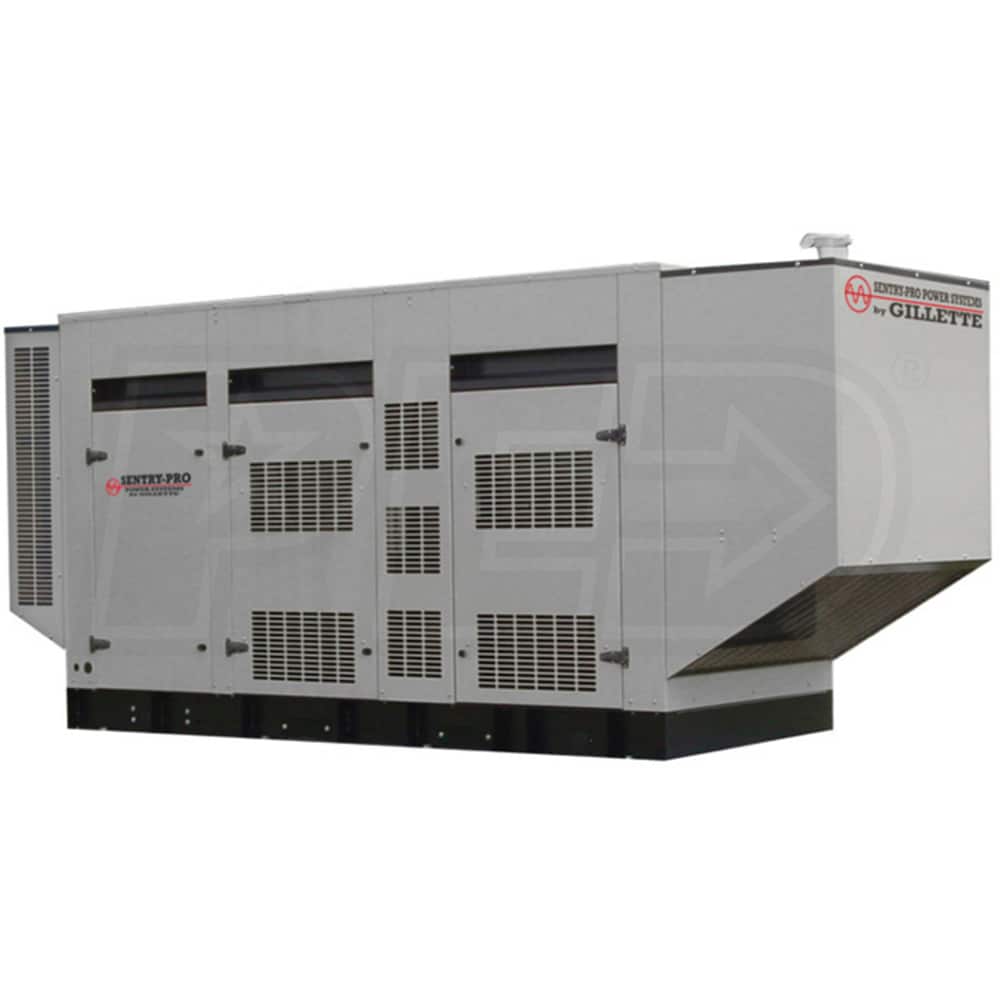

Gillette SP-2650 - 265kW (NG) / 170kW (LPG) Automatic Standby Generator (120/240V 3-Phase)
Model:
SP-2650-3-3
+
Share This Product
Features
Grade
Professional
Style
Standby (Liquid Cooled)
Run Watts
265,000 Rated Watts
Voltage
120/240 Three-Phase
Fuel
LP/Natural Gas
Engine
PSI
- Gillette SP-2650 Emergency Standby Generator
- For commercial applications with 120/240V 3-Phase service
- Please contact us for additional voltage options
- 265 kW (NG) or 170 kW (LPG) Standby Rating
- Rungs on cleaning burning Natural Gas or Liquid Propane (LPG)

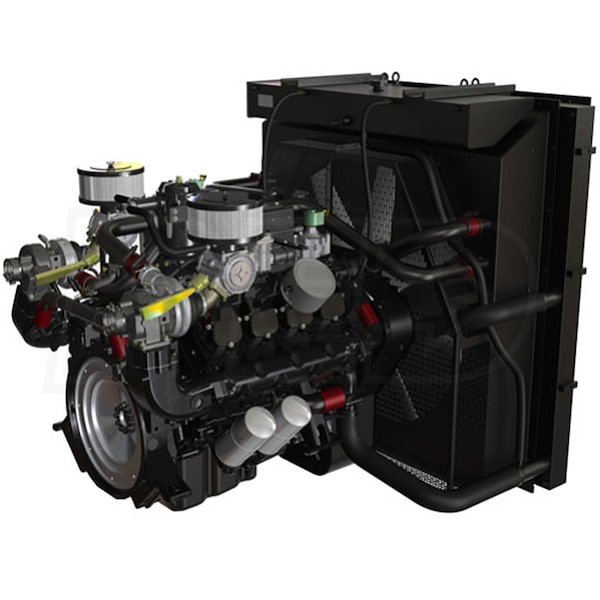

- 14.6L Power Solutions (PSI) 8-Cylinder Liquid Cooled Engine
- Provides long life, high performance, and great fuel efficiency
- Electronic governor for precise isochronous frequency regulation
- Stamford Brushless Alternator (UL Certified)
- Circuit-breaker protection, wired to gen-set
- Self-ventilated and drip proof construction
- Automatic Voltage Regulation (+/- 1/2 %)
- Solid state, frequency compensated design
- Under-speed and Over-excitation protection
- Deep Sea 7420 Generator Controller
- Digital microprocessor w/ logic for programming in the field
- Backlit LCD display for engine/generator status and warnings
- Stop / Manual / Auto Modes and automatic engine shutdowns
- Level 2 - Weather / Soundproof Aluminum Housing
- Enamel Powder Coat for corrosion resistance
- 18/8 Stainless Steel hardware for maximum enclosure life
- Includes Critical Grade Muffler
- Operates at only 80 dB @ 23'
- 2-Stage Battery Charger w/ Float (Battery Not Included)
- Also includes battery tray, cables and hold down straps
- PLEASE NOTE - Requires Automatic Transfer Switch (Sold Separately)
- 12 Month / 2000 Hour (Engine) & 24 Month / 1000 Hours (Generator) Warranty
^Please Note - Requires Loading Dock or Forklift For Delivery^
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
SP-2650-3-3
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
10675 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
186 Inches
Product Width
72 Inches
Product Height
94 Inches
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
265000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
265000 Watts
LP Power Capacity
170000 Watts
NG Fuel Consumption @ 50% Load
1522 ft³/hr
NG Fuel Consumption @ 100% Load
2782 ft³/hr
LP Fuel Consumption @ 50% Load
14.61 gallons/hr
LP Fuel Consumption @ 100% Load
25.43 gallons/hr
Rated Amps
798 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
80
Hour Meter
Yes
Voltage Meter
Yes
Transfer Switch
Automatic (Not Included)
Battery
Not Included
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Professional
Engine
Engine Brand
PSI
Starting System
12v Auto Start
CC
14600 CC
Consumer Engine Warranty
1 Year
Commercial Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
