Gillette SPJD-600 - 60kW Automatic Standby JOHN DEERE Powered Diesel Generator (120/240V Single-Phase)

Model:

SPJD-600-1-1

Write A Review
Gillette SPJD-600 - 60kW Automatic Standby JOHN DEERE Powered Diesel Generator (120/240V Single-Phase)
Gillette SPJD-600 - 60kW Automatic Standby JOHN DEERE Powered Diesel Generator (120/240V Single-Phase)
Model: SPJD-600-1-1
Call 1 (800) 800-3317 for pricing and order information.
Features
Specifications
Reviews
How-To Articles
Manuals
Factory-Direct
Ships in 8-12 Weeks
Share

Features

Grade

Emergency

Style

Standby (Liquid Cooled)

Run Watts

60,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

Diesel

Engine

John Deere

    ^Please Note - Requires Loading Dock or Forklift For Delivery^
  • Gillette SPJD-600 - 60kW Standby Diesel Generator
  • For residential applications with 120/240V Single-Phase service
  • Please contact us for additional voltage options

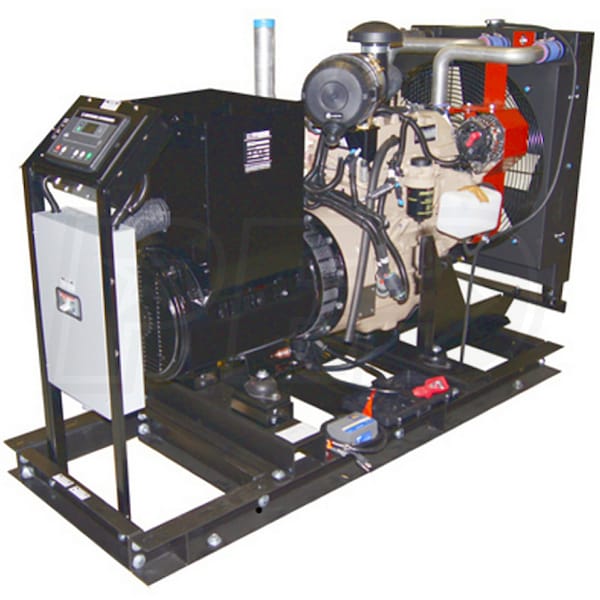

  • 4.5L John Deere 4-Cylinder Liquid Cooled Diesel Engine
  • Provides long life, high performance, and great fuel efficiency
  • Electronic governor for precise isochronous frequency regulation
  • Stamford Brushless Alternator (UL Certified)
  • Circuit-breaker protection, wired to gen-set
  • Self-ventilated and drip proof construction
  • Automatic Voltage Regulation (1/2 %)
  • Solid state, frequency compensated design
  • Under-speed and Over-excitation protection
  • Deep Sea 7420 Generator Controller
  • Digital microprocessor w/ logic for programming in the field
  • Backlit LCD display for engine/generator status and warnings
  • Stop / Manual / Auto Modes and automatic engine shutdowns

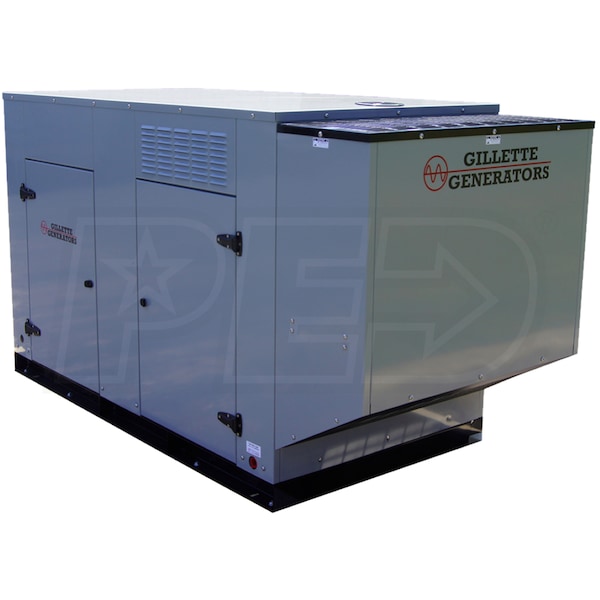

  • Level 2 - Weather / Soundproof Aluminum Housing
  • Enamel Powder Coat for corrosion resistance
  • 18/8 Stainless Steel hardware for maximum enclosure life
  • Includes Critical Grade Muffler
  • Operates at only 71 dB @ 23'
  • 2-Stage Battery Charger w/ Float (Battery Not Included)
  • Also includes battery tray, cables and hold down straps
  • PLEASE NOTE - Requires Fuel Tank (Sold Separately)
  • *Not Designed For Prime Power Applications*
  • 24 Month / 2000 Hour (Engine) & 24 Month / 1000 Hour (Generator) Warranty

Specifications

SPJD-600-1-1
specs product image PID-97740
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
2396 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
94 Inches
Product Width
42 Inches
Product Height
53 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Rated Watts
60000 Watts
Fuel Type
Diesel
Rated Amps
250 Amps
Diesel Fuel Consumption @ 50% Load
2.4 gallons/hr
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
71
Hour Meter
Yes
Transfer Switch
Automatic (Not Included)
Battery
Not Included
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
John Deere
Starting System
12v Auto Start
CC
4500 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
