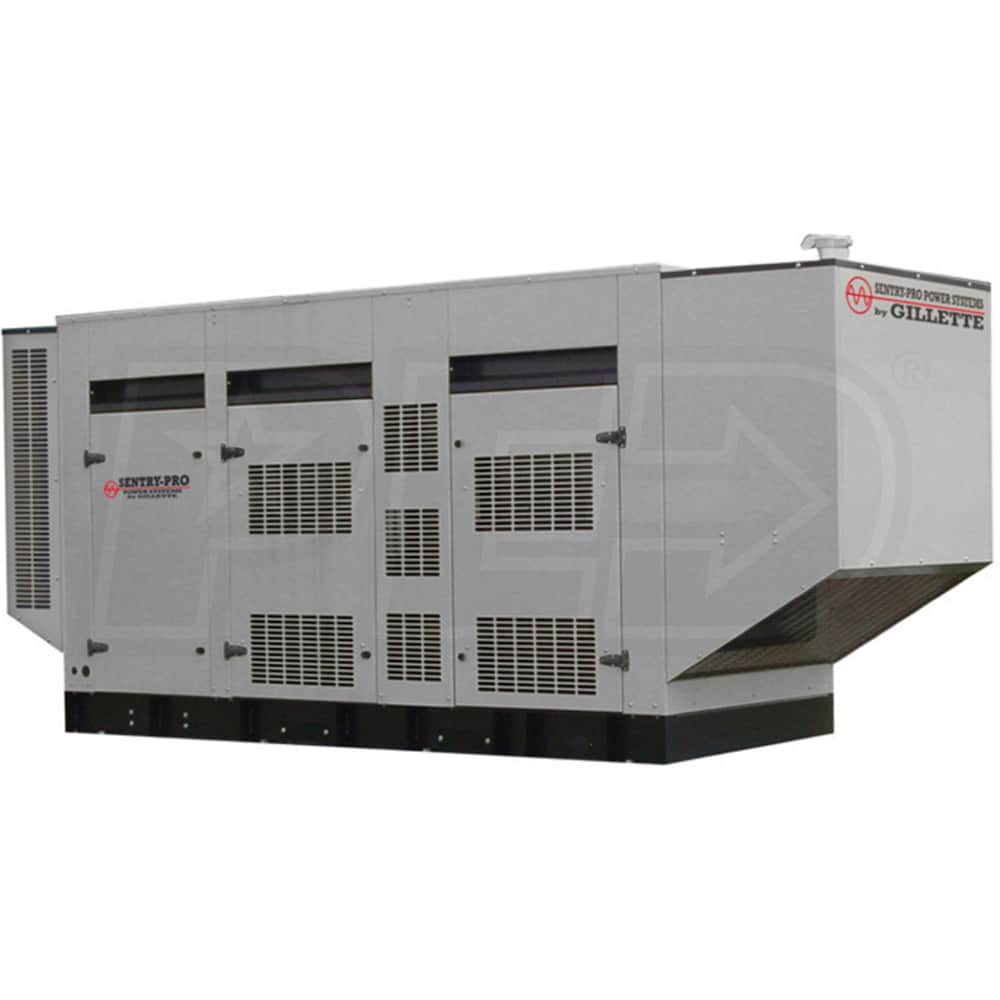

Gillette T4D-4000 - 400 kW Prime Power Tier 4 Final VOLVO-PENTA Powered Diesel Generator (120/240V 3-Phase)

Model:

T4D-4000-3-3

Write A Review
Gillette T4D-4000 - 400 kW Prime Power Tier 4 Final VOLVO-PENTA Powered Diesel Generator (120/240V 3-Phase)
Gillette T4D-4000 - 400 kW Prime Power Tier 4 Final VOLVO-PENTA Powered Diesel Generator (120/240V 3-Phase)
Model: T4D-4000-3-3
Call 1 (800) 800-3317 for pricing and order information.
Features
Specifications
Reviews
How-To Articles
Manuals
Factory-Direct
Ships in 8-12 Weeks
Share

Features

Grade

Professional

Style

Standby (Liquid Cooled)

Run Watts

400,000 Rated Watts

Voltage

120/240 Three-Phase

Fuel

Diesel

Engine

Volvo

    ^Please Note - Requires Loading Dock or Forklift For Delivery^
  • Gillette T4D-4000 - 400kW Prime Power Tier 4 Diesel Generator
  • For commercial applications with 120/240V 3-Phase service
  • Please contact us for additional voltage options
  • 16.1L VOLVO-PENTA 6-Cylinder Liquid Cooled Diesel Engine
  • Provides long life, high performance, and great fuel efficiency
  • Electronic governor for precise isochronous frequency regulation
  • EPA emissions certified and Tier IV Final compliant
  • Stamford Brushless Alternator (UL Certified)
  • Circuit-breaker protection, wired to gen-set
  • Self-ventilated and drip proof construction
  • Automatic Voltage Regulation (+/- 1 %)
  • Solid state, frequency compensated design
  • Under-speed and Over-excitation protection
  • Deep Sea 7420 Generator Controller
  • Digital microprocessor w/ logic for programming in the field
  • Backlit LCD display for engine/generator status and warnings
  • Stop / Manual / Auto Modes and automatic engine shutdowns
  • Level 2 - Weather / Soundproof Aluminum Housing
  • Enamel Powder Coat for corrosion resistance
  • 18/8 Stainless Steel hardware for maximum enclosure life
  • Includes Critical Grade Muffler
  • Operates at only 83 dB @ 23'
  • 3-Stage Battery Charger w/ Float (Battery Not Included)
  • Also includes battery tray, cables and hold down straps
  • PLEASE NOTE - Requires Fuel Tank (Sold Separately)
  • 24 Month / 1000 Hour Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

T4D-4000-3-3
specs product image PID-97128
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
12125 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
200 Inches
Product Width
72 Inches
Product Height
94 Inches
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
400000 Watts
Fuel Type
Diesel
Rated Amps
1200 Amps
Diesel Fuel Consumption @ 50% Load
20.8 gallons/hr
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
83
Hour Meter
Yes
Voltage Meter
Yes
Battery
Not Included
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Professional
Prime Power
Yes
Engine
Engine Brand
Volvo
Starting System
12v Auto Start
CC
16100 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
