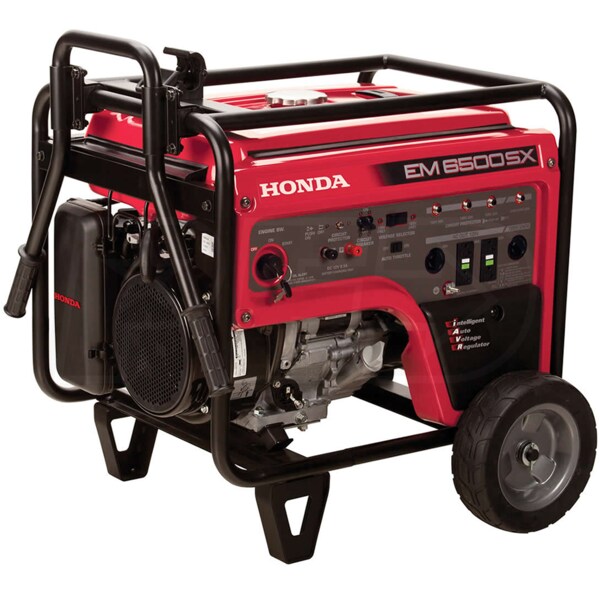

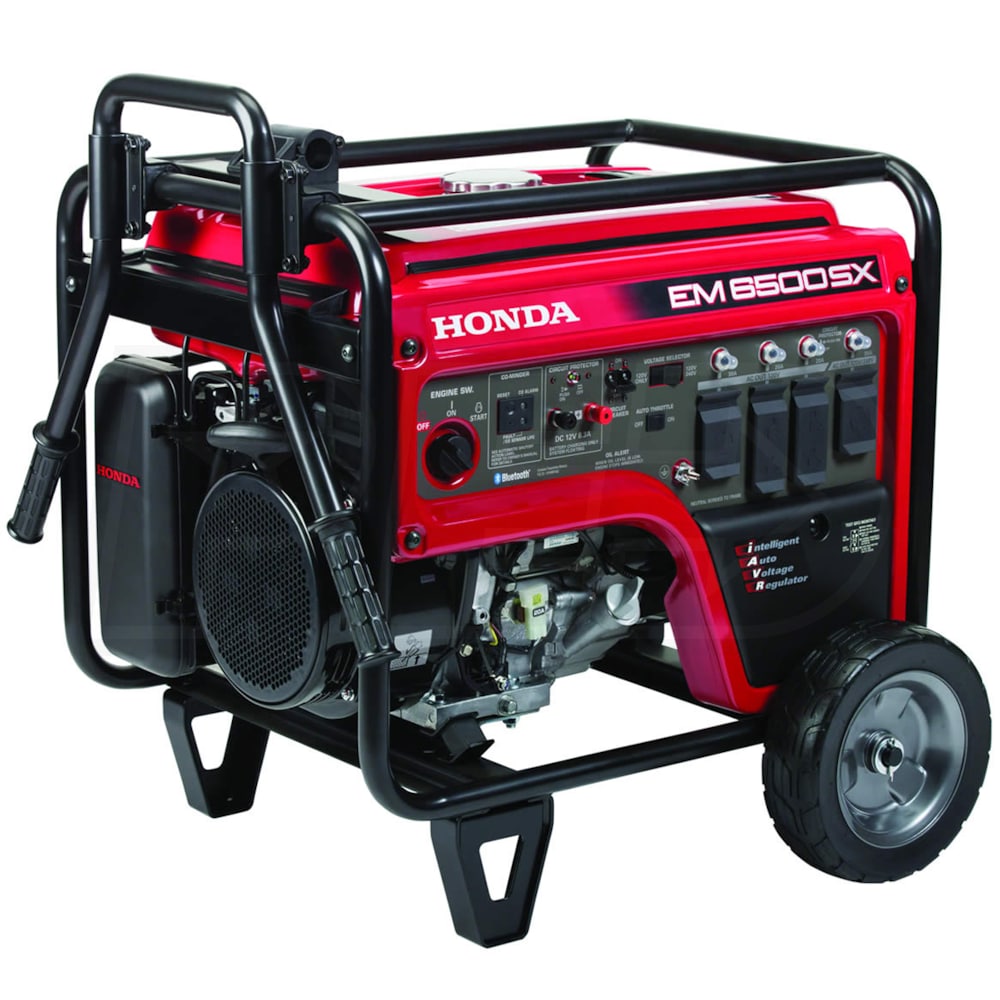

Honda EM6500SX - 5500 Watt Electric Start Portable Generator w/ Bluetooth® & CO-MINDER™ (CA. Only)

Model:

EM6500X2AG

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Honda EM6500SX - 5500 Watt Electric Start Portable Generator w/ Bluetooth® & CO-MINDER™ (CA. Only)
Honda EM6500SX - 5500 Watt Electric Start Portable Generator w/ Bluetooth® & CO-MINDER™ (CA. Only)
Model: EM6500X2AG
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Semi-Pro

Style

Portable

Run Watts

5,500 Rated Watts

Surge Watts

6,500
Starting Watts

Fuel

Gasoline

Engine

Honda iGX

  • Honda iGX OHV Commercial Grade Engine
  • Digital CDI ignition system provides improved ignition timing
  • Integrated ECU with a self-tuning regulator/governor system
  • CO-Minder™ Advanced CO Detection System
  • Continuously measures CO levels
  • Automatically shuts down generator when levels get high
  • Honda My Generator App + Bluetooth® Capability
  • Wireless start/stop, operation monitoring & service reminders
  • Electric Start (Battery Included) w/ Recoil Back-Up
  • Provides easy starting with the turn of a key
  • iAVR (Intelligent Automatic Voltage Regulator)
  • Provides up to 7000 watts for 10 seconds
  • Ensures a consistent flow of power regardless of load
  • Protection for sensitive equipment and reliable power for you
  • Oil Alert® Warning System
  • Shuts the engine down if oil reaches an unsafe operating level
  • 30A 120/240V (L14-30R) Twist-Lock Receptacle***
  • Allows for connection to a manual transfer switch (MTS)
  • Allows for connection to a convenience cord
  • Voltage Selector Switch - 120/240V Operation
  • Gives you more usable power and added flexibility
  • Low 64-66 dBA Sound Level
  • Provides quiet operation during power outages
  • Extended Run Time
  • Runs about 10.4 hours @ 50% load, 6.9 hours at full load
  • Added Features
  • 12V DC Terminal Connections provide 100W (8.3A) of power
  • Locking/Folding Handle, Wheel kit & Reinforced standing legs
  • Oil Not Included (Requires 38.4 oz (1.2 qt.) 10W30 API Rated SJ or Higher)
  • ***Note - Allows You To Get Maximum Power From Generator
  • *Please Note - Not For Resale*
  • CARB Compliant - For Sale In CA
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm, and Soots, tars, and mineral oils (untreated and mildly treated oils and used engine oils) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L14-30R
EM6500X2AG
specs product image PID-6562
Overview
Assembly Required
Yes
Weight
243 Pounds
CARB Compliant
Yes
Certification
CARB
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
41.1 Inches
Product Width
27.8 Inches
Product Height
30.6 Inches
UPC
786102007429
Additional Model Numbers

EM6500, EM6500X2AG

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
5500 Watts
Surge Watts
6500 Watts
Fuel Type
Gasoline
Rated Amps
23 Amps
Portability Kit
Solid Rubber
Tank Size
6.2 Gallons
Run Time @ 50% Load
10.4 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
66
Idle Control
Yes
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Neutral Type
Floating
Battery
Included
Grade Type
Semi-Pro
CO Sensing
Yes
Engine
Engine Brand
Honda iGX
Starting System
12-Volt Key Start w/ Recoil
CC
389 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
