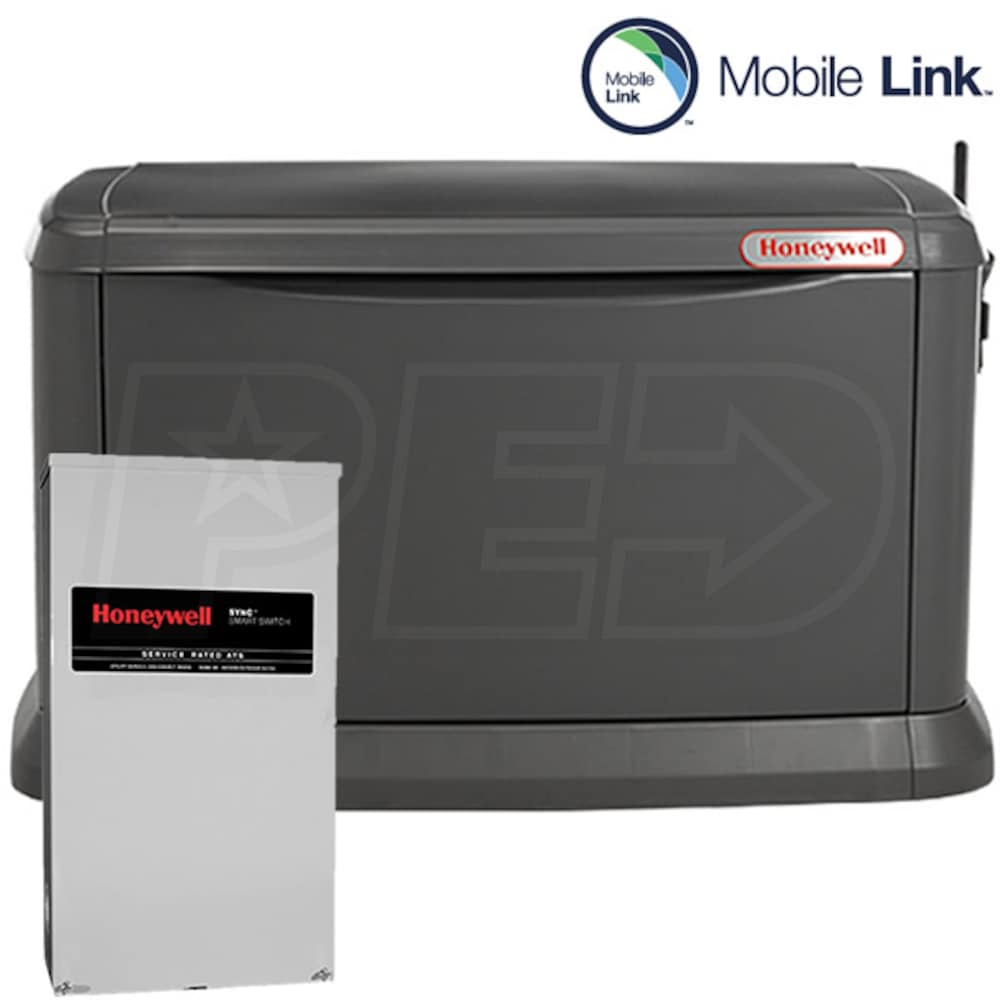

Honeywell 20kW Alum Home Standby Generator System (200A Service Disconnect + AC Shedding)
Model:
EGD-20kWHONEYWELLKIT
+
Share This Product
Recommended Accessories
![Electric Generators Direct expert image](http://www.powerequipmentdirect.com/images/experts/expert-avatar-7.png)
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
20,000 Rated Watts
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Generac OHVI
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Honeywell™ Air-Cooled Home Standby Generator System
- Free Mobile Link™ Cellular Monitoring System ($279 VALUE)
- Use your computer, tablet or smart phone to check system status
- 200-Amp SYNC™ Smart Automatic Transfer Switch (RTSM200A3 - Included)
- "Service Entrance Rated" for simplified indoor/outdoor installation
- DPM Technology Manage Up To (4) HVAC Loads - No Hardware Rec'd
- Air conditioners, water heaters, well pumps, etc. (24 VAC controlled)
- Up To (8) Smart Management Modules (SMM) (Sold Separately)
- Frequency (Hz) monitoring design, no control wire required
- Versatile design, easily prioritize loads & lock-out non-essential loads
- PrecisionPower™ Electrical Technology - Less Than 5% THD
- Utility quality power that won't harm eletronics & micro-chip based appliances
- WhisperCheck™ Self-Test Exercise Mode
- Programmable, runs at a lower RPM for a 5-12 min test
- SYNC™ 2.0 Generator Controller w/ 2-Line LCD Screen
- Easily view logs of history, maintenance and events
- Aluminum Enclosure w/ RhinoCoat™ Finish
- Withstands winds up to 150 mph & provides protection from the elements
- Includes Base Fascia, Composite Mounting Pad (Built-in) & 1' Flex Fuel Line Connector
- 5-Year Limited Warranty & 24/7/365 Customer Care
- (1) Honeywell™ 20 kW Air-Cooled Aluminum Home Standby Generator w/ Mobile Link™ Remote Monitoring (6262-0)

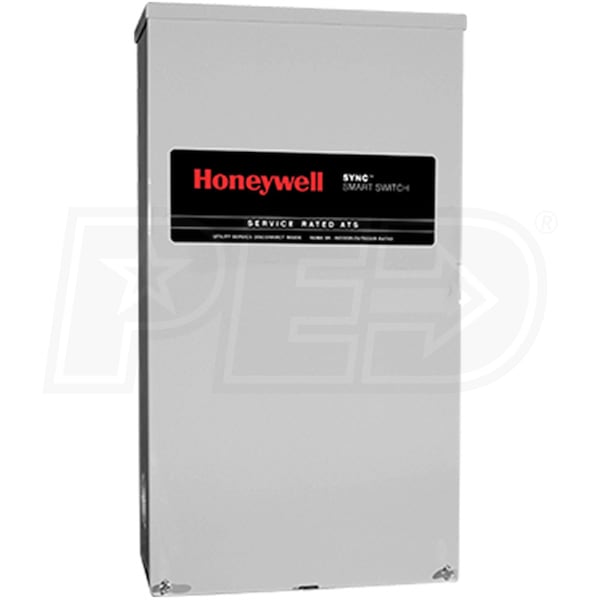

- (1) Honeywell™ 200-Amp SYNC™ Smart Automatic Transfer Switch w/ Power Management (Service Disconnect) (RTSM200A3)
Product Includes
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Honeywell™ 20 kW Air-Cooled Aluminum Home Standby Generator w/ Mobile Link™ Remote Monitoring (6262-0)
- (1) Honeywell™ 200-Amp SYNC™ Smart Automatic Transfer Switch w/ Power Management (Service Disconnect) (RTSM200A3)
EGD-20kWHONEYWELLKIT
![specs product image PID-65834](/products-image/150/EGD-20kWHONEYWELLKIT_65834_600.jpg)
Overview
Weight
451 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48.3 Inches
Product Width
25.3 Inches
Product Height
28.8 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
20000 Watts
Surge Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
205 ft³/hr
NG Fuel Consumption @ 100% Load
308 ft³/hr
LP Fuel Consumption @ 50% Load
2.08 gallons/hr
LP Fuel Consumption @ 100% Load
3085 gallons/hr
Rated Amps
83 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
66 Run (60 Test) dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included (525 CCA)
Enclosure
Aluminum
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac OHVI
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Transfer Switch Circuits
Circuit Breaker Size
100 Amps
6262-0
Overview
Weight
451 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48.3 Inches
Product Width
25.3 Inches
Product Height
28.8 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
20000 Watts
Surge Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
205 ft³/hr
NG Fuel Consumption @ 100% Load
308 ft³/hr
LP Fuel Consumption @ 50% Load
2.08 gallons/hr
LP Fuel Consumption @ 100% Load
3.85 gallons/hr
Rated Amps
83 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
66 Run (60 Test) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (525 CCA)
A/C Ton Rating
2 x 5-Tons
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac OHVI
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Transfer Switch Circuits
Circuit Breaker Size
100 Amps
RTSM200A3
Overview
Weight
39 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
30 Inches
Product Width
13.5 Inches
Product Height
7 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
48000 Watts
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes
