Features
Type
Standard
Amp Rating
100
Load Mgmt.
Not Compatible
Voltage
120/208 Three-Phase
Enclosure
NEMA 3R
- 100-Amp Automatic Transfer Switch (120/208V 3-Phase)
- For 120/208V 3-Phase Honeywell™ Commercial Generators
- Aluminum, NEMA Type 3R Enclosure
- Weather-resistant design for indoor & outdoor installation
- Electrostatically applied and baked powder coating paint (Gray)
- Designed For Standard Installation*
- May require a sub-panel for overload protection
- Work's With Honeywell's Sync 1.0™ Generator Controller
- Generator's controller handles all the timing, sensing & exercising
- Electrically Operated, Mechanically-Held Contacts
- For fast, positive connections that you can depend on
- Tech Spec Summary: (See Spec Sheet For More Info)
- Rated 100-Amps @ 208V
- Transition Type: Open
- Withstand Rating: 10,000 Amps --- Lug Range: 2/0 - #14
- 2-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
RTSZ100G3
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
20 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
24.1 Inches
Product Width
20.2 Inches
Product Height
7.1 Inches
UPC
696471612912
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Watts
24000 Watts
Rated Amps
100 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
24000 Watts
UL Listed
Yes
Reviews
Honeywell RTSZ100G3 Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
Be the First to Ask A Question
Answered by Jared, the Generator Expert
How-To Articles
How To Pick the Perfect Automatic Transfer Switch
I recently spoke with someone who wanted to back up their home with a standby g...
How to Avoid Tripping a Generator With a Bonded Neutral
Does your generator outlet trip every time you connect it to your home's transf...
How to Pick the Perfect Manual Transfer Switch
During a sudden power outage, you probably don’t feel like running multip...
Manuals
RTSZ100G3
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

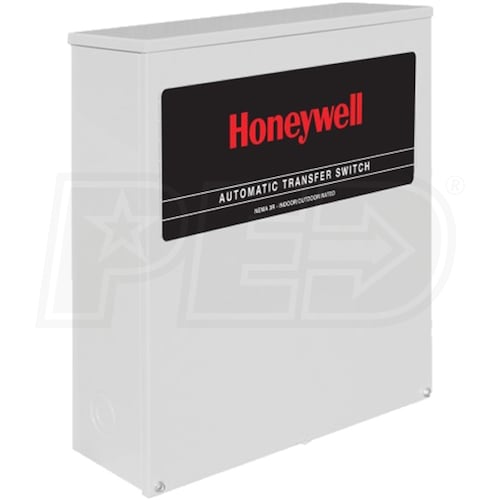

Honeywell™ Commercial 100-Amp Automatic Transfer Switch (120/208V)
