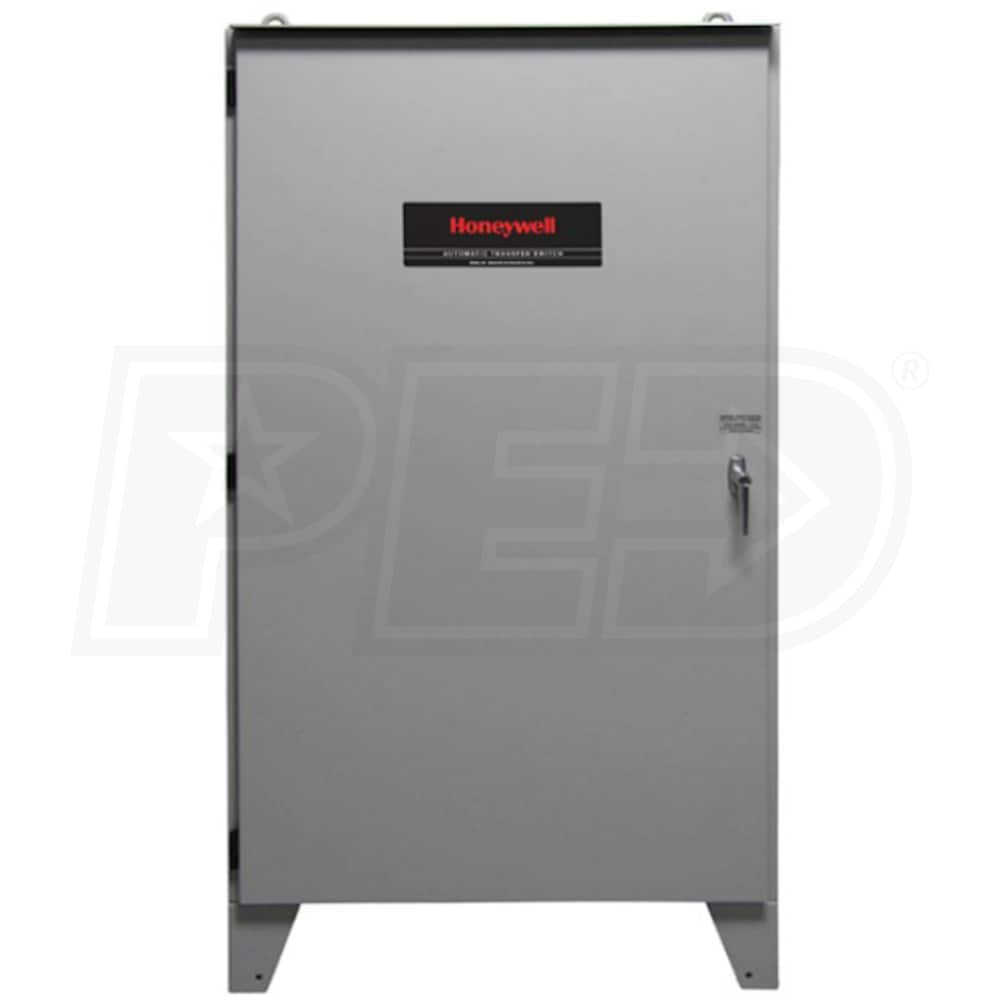

Honeywell™ Commercial 600-Amp Automatic Transfer Switch (120/208V)

Model:

RTSZ600G3

Write A Review
$5,309.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order

Honeywell™ Commercial 600-Amp Automatic Transfer Switch (120/208V)
Honeywell™ Commercial 600-Amp Automatic Transfer Switch (120/208V)
Model: RTSZ600G3
$5,309.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Standard

Amp Rating

600

Load Mgmt.

Not Compatible

Voltage

120/208 Three-Phase

Enclosure

NEMA 3R

  • 600-Amp Automatic Transfer Switch (120/208V 3-Phase)
  • For 120/208V 3-Phase Honeywell™ Commercial Generators
  • Steel, NEMA Type 3R Enclosure
  • Weather-resistant design for indoor & outdoor installation
  • Electrostatically applied and baked powder coating paint (Gray)
  • Designed For Standard Installation*
  • May require a sub-panel for overload protection
  • Work's With Honeywell's Sync 1.0™ Generator Controller
  • Generator's controller handles all the timing, sensing & exercising
  • Electrically Operated, Mechanically-Held Contacts
  • For fast, positive connections that you can depend on
  • Tech Spec Summary: (See Spec Sheet For More Info)
  • Rated 600-Amps @ 208V
  • Transition Type: Open
  • Withstand Rating: 42,000 Amps --- Lug Range: 1/0 - 500 MCM
  • 5-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

RTSZ600G3
specs product image PID-75174
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
337.75 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Width
36 Inches
Product Height
66 Inches
UPC
696471612837
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Amps
600 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
600 Amps
Max Generator Input
600 Amps
UL Listed
Yes
