Features
Grade
Professional
Style
PTO
Run Watts
16,000 Rated Watts
Surge Watts
30,000
Starting Watts
- Convert Your Tractor Into a Generator
- Use your tractor engine to generate electricity
- Requires at least 32 PTO HP to operate properly
- Multiple Applications
- Generate electricity to power tools on the farm or ranch
- Backup your home, barn or buildings during a power outage
- 3600 RPM Brushless Alternator w/ Capacitor
- Designed for maintenance-free performance
- 100% Copper Winding, Low Distortion Alternator
- Provides THD <5%, for high quality power output
- Aluminum & Steel Housing
- Lightweight design for maximum durability
- Heavy Duty Cast Iron Single Stage Gearbox
- Lifetime pre-sealed maintenance-free bearings
- 4" Three Bar LED Meter
- Provides accurate display of Hertz, Volts, and Amps output
- Add Features:
- Magnetic circuit breaker w/ individual circuit protection
- Simultaneous 120V & 240V output w/ Full power outlet
- Standard 1-3/8", 6-spline input shaft
Specifications
Plug Types
16001
General Information
Product Category
Generator - PTO
Overview
Product Category
Generator - PTO
Weight
185 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
PTO Generator
Product Length
28 Inches
Product Width
11 Inches
Product Height
21 Inches
Additional Model Numbers
PTO 16-S, 16001
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
No
Rated Watts
16000 Watts
Surge Watts
30000 Watts
Rated Amps
67 Amps
Voltage Meter
Yes
Tractors HP
32 HP
PTO RPMs
540 RPM
Grade Type
Professional
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 14-60R
1
Reviews
IMD 16001 Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
(2)
Product Questions
Answered by Jared, the Generator Expert
What is the difference between brushless and with brushes alternators? I see the AVR model has them, this s model does not. Both IMD 16pto models.
Thank you.
Patrick Nelson
from Arkansas
March 03, 2014
I have a 45hp tractor with 36 PTO hp. I have a 3500 sq ft house with 2 freezers, 2 refrigerators, well house, aerobic septic and 2 AC units. I see 16kw and 25 kw PTO generators everywhere but what about 18kw?
I do not know if the 16kw will work for the entire house and my tractor can only handle 18kw which I believe will be sufficient. What can you suggest?
If I got a 22kw generator would it supply me with the 18kw my tractor can supply without problems?
Jason McCartnet
from Texas
June 24, 2012
How-To Articles
Manuals
16001
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

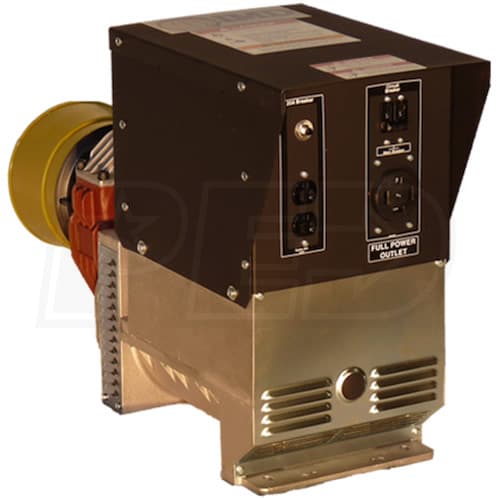

IMD PTO16-S - 16kW Tractor-Driven PTO Generator (540 RPM)
