Kohler 30RCLA - 30kW Emergency Standby Power Generator (277/480V Three-Phase)
Model:
30RCLA-QS4
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Standby (Liquid Cooled)
Run Watts
30,000 Rated Watts
Voltage
277/480 Three-Phase
Fuel
LP/Natural Gas
Engine
Kohler
- Kohler 30kW Liquid-Cooled Standby Generator
- For commercial buildings with 277/480V 3-Phase service
- Premium 5-Year / 2000 Hour Limited Warranty
- Backed by Kohler's extraordinary reliability & performance
- Brushless-Alternator For High Quality, Cleaner Generator Power
- Advanced voltage / Hz regulation prevents unstable power
- Protects sophisticated electronics with ultra-low distortion (THD)
- RDC2 Digital Controller - Controls Generator & RXT Transfer Switch*
- Provides advanced control, system monitoring & diagnostics
- Electronic speed control and digital voltage regulation (DVR)
- Built-in 2.5 amp battery charger
- 2-Line Backlit LCD Digital Display
- Easy to read local data access in all lighting conditions
- Programmable exerciser for weekly or bi-weekly self-testing
- 2.2 L Turbocharged Liquid-Cooled Engine (1800 RPM)
- Runs on clean burning Natural Gas or LP fuel
- Simple field conversion while maintaining emission certification
- Sound-Attenuating Aluminum Enclosure & "Quieter" Cooling System
- Fade, scratch, & corrosion-resistant powder-baked finish
- Meets 181 MPH wind load rating
- "Quieter" Cooling System
- Electronic fan, internal silencer & acoustic insulation
- Keeps dB under 61 @ 7M (23') during normal operation
- Meets NFPA 37 4.1.4 Requirements For Reduced Setback

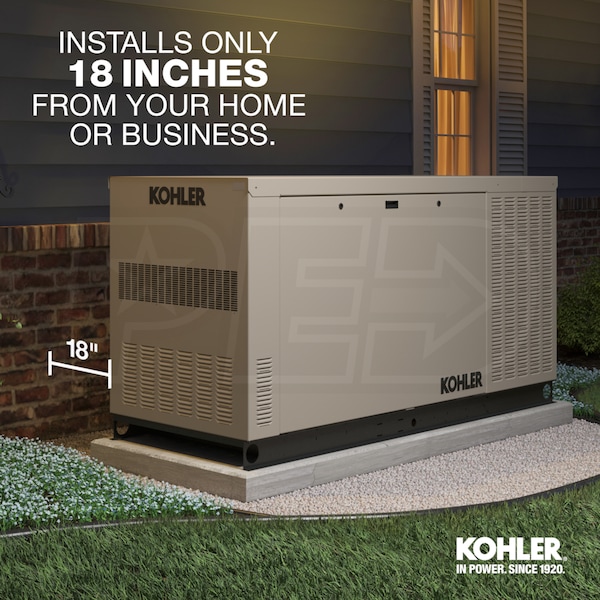

- Can be installed within 18" of structure
- GFCI Service Outlet
- Ideal for powering heater kits or for powering service tools
- Remote Monitoring System (Included)
- Built-in Ethernet card, no hardware needed
- Requires OnCue Plus Wireless Radio Kit For Wireless Monitoring (Sold Separately)
- KOHLER® Energy Management App
- Get real-time alerts on generator status, remote control & maintenance records
- ***Not Compatible For Off-Grid Applications***
- Approved for stationary standby applications in locations served by a reliable utility source
- *Requires Automatic Transfer Switch (Sold Separately)
^Please Note - Requires Loading Dock or Forklift For Delivery^
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
30RCLA-QS4
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
1320 Pounds
CARB Compliant
No
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
74 Inches
Product Width
32.9 Inches
Product Height
46 Inches
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Alternator
Brushless
Rated Watts
30000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
30000 Watts
LP Power Capacity
30000 Watts
NG Fuel Consumption @ 50% Load
268 ft³/hr
NG Fuel Consumption @ 100% Load
424 ft³/hr
LP Fuel Consumption @ 50% Load
2.8 gallons/hr
LP Fuel Consumption @ 100% Load
4.7 gallons/hr
Rated Amps
46 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
53 Test (61 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (630 CCA)
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
Grade Type
Emergency
Wi-Fi Remote Monitoring
Sold Separately
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
2200 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Plugs
NEMA 5-20R - GFCI
1
