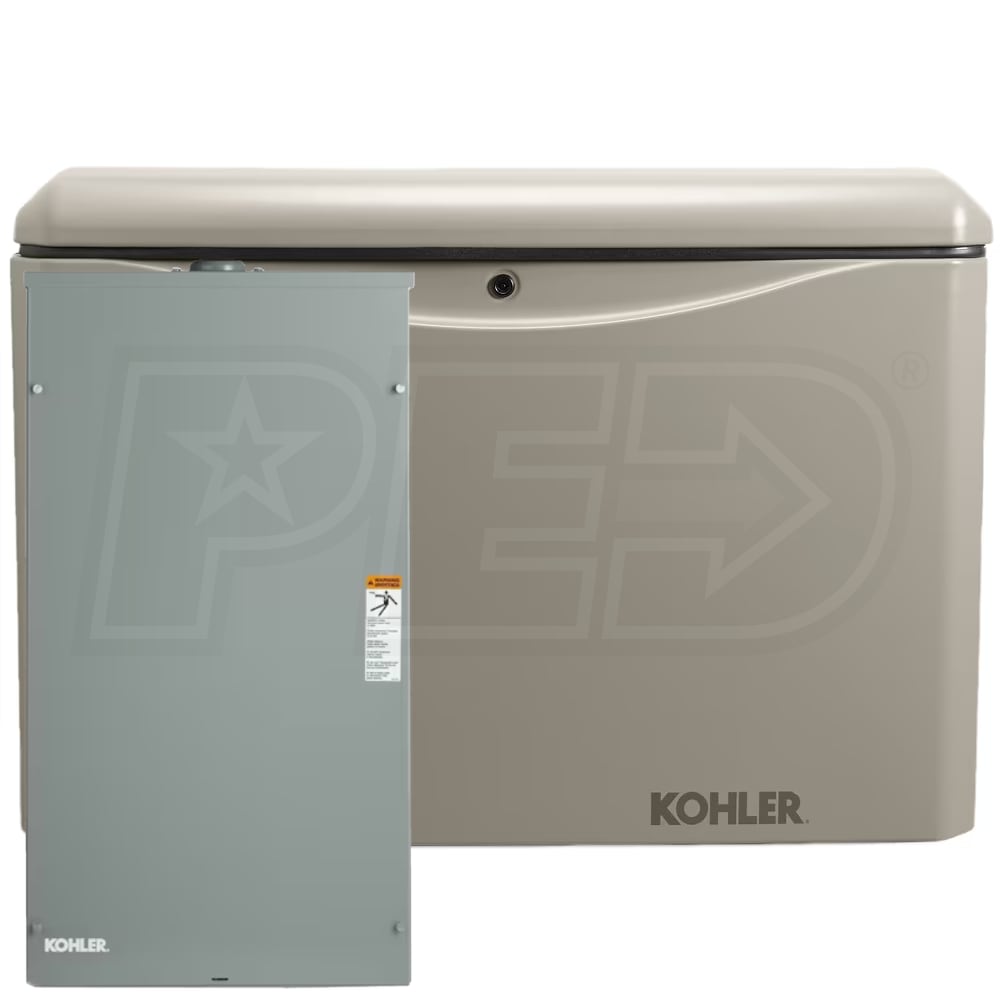

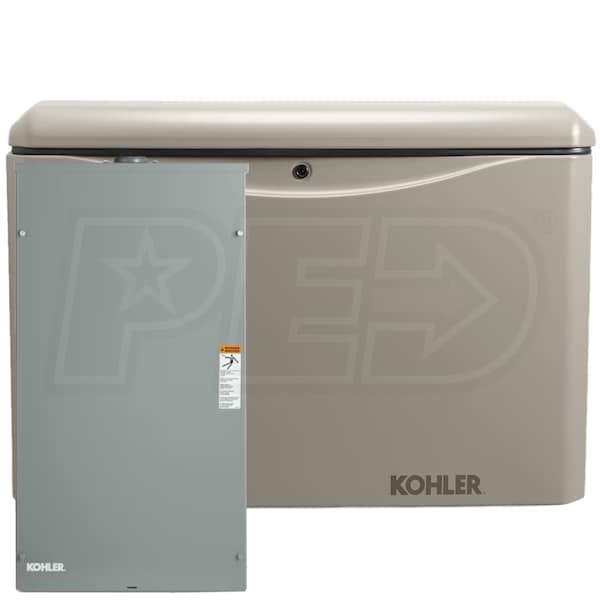

Kohler 20RCA - 20kW Aluminum Standby Generator System (200A Service Disc. w/ Load Shedding - RDT ATS)

Model:

EGD-20RCA-200ASE-RDT-KIT

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Kohler 20RCA - 20kW Aluminum Standby Generator System (200A Service Disc. w/ Load Shedding - RDT ATS)
Kohler 20RCA - 20kW Aluminum Standby Generator System (200A Service Disc. w/ Load Shedding - RDT ATS)
Model: EGD-20RCA-200ASE-RDT-KIT
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Air Cooled)

Run Watts

20,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Kohler

  • 20kW (LPG) / 18kW (NG) Air-Cooled Standby Generator
  • Fully Automatic Operation - Includes Automatic Transfer Switch
  • Premium 5-Year / 2000 Hour Limited Warranty
  • Backed by Kohler's extraordinary reliability & performance
  • RDT 200A Service Entrance Rated Outdoor Automatic Transfer Switch
  • NEMA 3R Enclosure mounts between meter & main service panel
  • Built-In Load Shed - Manage (2) HVAC + (4) Non-Essential loads***
  • Kohler Command PRO® OHV Engine
  • Meets emission regulations for U.S. EPA & California
  • Powerful and reliable engine with hydraulic valve lifters
  • New 100% Corrosion-Proof Aluminum Enclosure
  • Aluminum base can be mounted on gravel or cement pad
  • Meets 181 MPH wind rating; Impact-resistant down to -30° F
  • Powerful Performance w/ PowerBoost™ Technology
  • Greater motor-starting ability for large electrical loads
  • Premium Power Quality (+/-1% Voltage Regulation)
  • Protects sophisticated electronics with low distortion (<5%THD)
  • Fast Response Time
  • Kohler™ generators restore power in as little as 10 seconds
  • New Silencer Reduces Sound Levels & Provides Quiet Operation
  • Maintains neighborhood solitude - approx. 69 dB(A) at 7 m (23 ft)
  • RDC2 (6-Button) Digital Controller
  • Glare-resistant, 2-line 16-character display - No More Codes
  • ATS status via LED lights on controller; Built-In 2.5A Battery Charger
  • Real time clock allows you to easily set weekly exercise
  • Remote Monitoring System (Included)
  • Built-in Ethernet card, no hardware needed
  • Easier Installation
  • Streamline design reduces time required to install generator
  • Installation Flexibility*
  • Can be installed within 18" of a building / home
  • *Always check local building codes
  • ***Requires PRM (Sold Separately)
  • Product Includes
    • (1) Kohler 20kW Aluminum Home Standby Generator (20RCA)
    • (1) Kohler RDT Series 200-Amp Outdoor Automatic Transfer Switch (Service Disconnect) (RDT-CFNC-200ASE)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Kohler 20kW Aluminum Home Standby Generator (20RCA)
  • (1) Kohler RDT Series 200-Amp Outdoor Automatic Transfer Switch (Service Disconnect) (RDT-CFNC-200ASE)
EGD-20RCA-200ASE-RDT-KIT
specs product image PID-151167
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
555 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
47 Inches
Product Width
26.2 Inches
Product Height
32.2 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
161 ft³/hr
NG Fuel Consumption @ 100% Load
281 ft³/hr
LP Fuel Consumption @ 50% Load
2.3 gallons/hr
LP Fuel Consumption @ 100% Load
3.9 gallons/hr
Rated Amps
83 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included (500 CCA)
Enclosure
Aluminum
A/C Ton Rating
5-Tons
Transfer Switch Style
Service Disconnect
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Sold Separately
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
555 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
47 Inches
Product Width
26.2 Inches
Product Height
32.2 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
161 ft³/hr
NG Fuel Consumption @ 100% Load
281 ft³/hr
LP Fuel Consumption @ 50% Load
2.3 gallons/hr
LP Fuel Consumption @ 100% Load
3.9 gallons/hr
Rated Amps
83 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69 dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (500 CCA)
Enclosure
Aluminum
A/C Ton Rating
5-Tons
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Sold Separately
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
RDT-CFNC-200ASEQS4
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
26 Pounds
Consumer Warranty
5 Years
Product Depth
6.4 Inches
Product Width
18.6 Inches
Product Height
33.8 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
200 Amps
Transfer Switch Amperage
200-Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Poles
2 Poles
Max Utility Input
200 Amps
Max Generator Input
200 Amps
UL Listed
Yes
