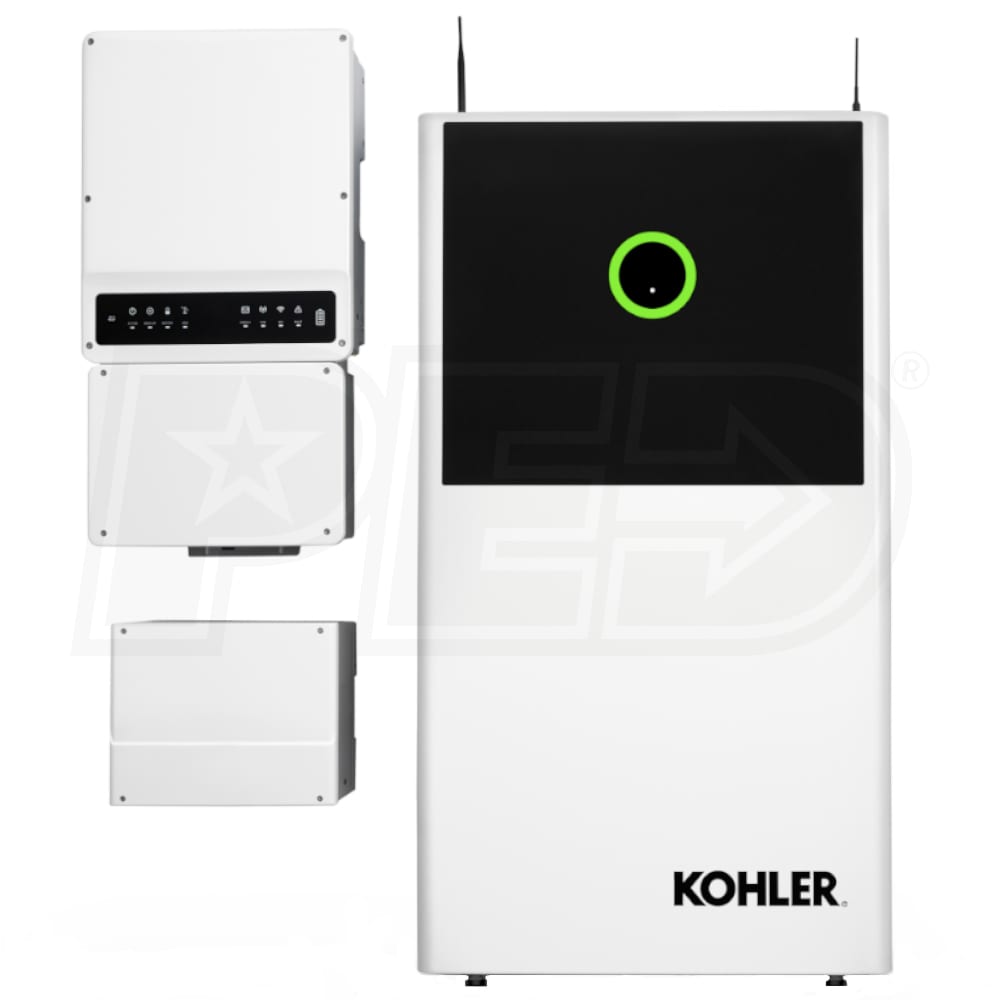

Kohler® Power Reserve 10kWh Energy Storage System - 5.1kW (120/240V Single-Phase) Inverter, Outdoor Cabinet (AC-Coupled)
Model:
KOH10AC-7600-01
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- *Please Note - Requires Kohler Certified Installer for Installation*
- Kohler® Power Reserve 10kWh Residential Energy Storage System
- Keeps your home powered during an outage
- Provides energy independence from the grid
- Versatile System For On & Off Grid Applications
- Ideal for energy storage from solar installation
- How It Works
- Stores energy gathered from your solar array^ (Not Included)
- Charge from the grid if solar isn't available
- Reserves the energy for when you need it most
- Multi-Modes To Suit Your Needs
- Back-Up - Automatically uses stored solar power when an outage occurs
- Self-Supply - Prioritizes using stored energy first, then utility power
- Time-Of-Use - Prioritizes using stored energy during peak utility periods
- 10 kWh Lithium-Ion Battery (LFP)
- Provides added safety compared to traditional NMC batteries
- AC-Coupled Design
- Ideal for applications with an existing home solar system
- 5,120-Watt (Cont.) & 5,760-Watt (Surge) Watts (120/240V Single-Phase) (Back Up)
- Plenty of power for most appliances around the home
- Outdoor Rated (NEMA 3R) Battery Cabinet
- Allows for installation flexibility, indoors or outdoors
- Always Connected Celluar & WiFi w/ Kohler® Power Reserve App
- Monitor your home's energy production / consumption & power analytics in real time
- Maximize power savings by allowing more control of your system
- OpenADR Compliant
- UL 1741 SA, UL 9540, CA Rule 21, HECO Rule 14, IEEE 1547, IEEE 1547.1, CSA 22.2
- 10-Year / 3 Mwh Per kWh Warranty
- ^Please Note - Requires Solar Panels (Not Included)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
KOH10AC-7600-01
General Information
Product Category
Generator - Solar
Overview
Product Category
Generator - Solar
Weight
530 Pounds
Consumer Warranty
10 Years
UPC
650531466273
Product Specs
Enclosure
NEMA 3R
Wi-Fi Remote Monitoring
Yes
Battery Storage (Wh)
10
Battery Type
AC-Coupled
AC Output / Grid-Tie
Rated AC Power Output
5120 Watts
AC Output Voltage
120/240V Single-Phase
AC Frequency
60 Hz
Max Continuous Output Current
5760
AC Output / Backup
Rated AC Backup Power Output (Islanded)
5760 Watts
Max AC Backup Power Output
5760 Watts
AC Backup Output Voltage
120/240V Single-Phase
AC Frequency
60 Hz
Efficiency
Peak Efficiency
97.6
CEC Weighted Efficiency
96.1
