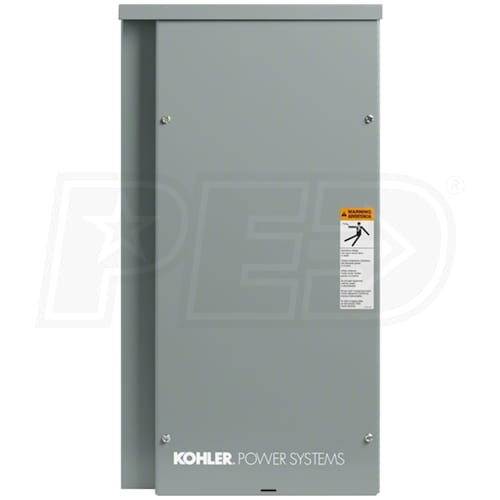

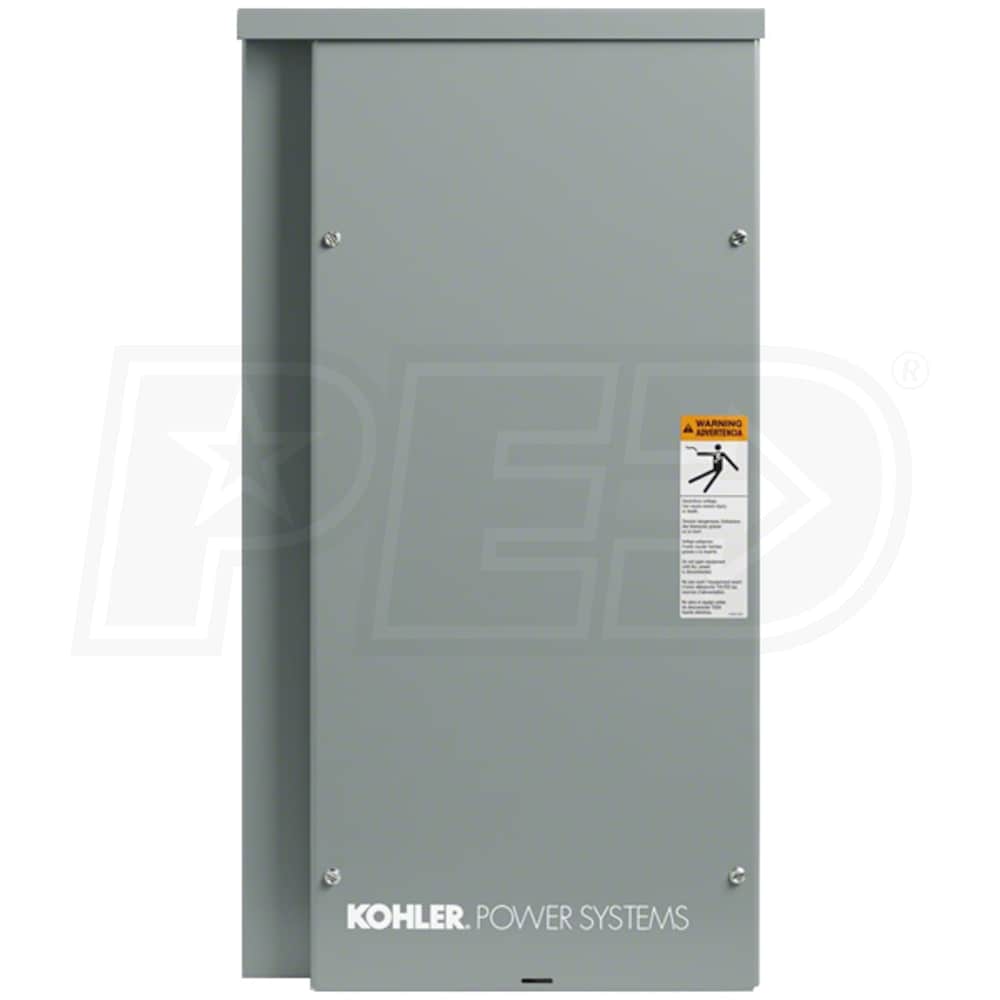

Kohler RDT Series 100-Amp Outdoor Automatic Transfer Switch
Model:
RDT-CFNC-0100A-QS7
+
Share This Product
Recommended Accessories

Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Type
Standard
Amp Rating
100
Load Mgmt.
Voltage
120/240 Single-Phase
Enclosure
NEMA 3R
- Standard Features
- UL listed and CSA certified
- Two-pole, single-phase, open-transition transfer switch
- Double throw inherently interlocked design
- Solid Neutral
- 220/240 VAC, 50/60 Hz (jumper)
- Contractor manually operable for maintenance purposes
- NEMA 3R (outdoor) enclosure
- MPAC™ 500 Controller Features
- User-friendly interface and easy-to-find international symbols
- LED indication of system faults
- Test button (with or without load)
- Exercise set button
- Single-phase voltage sensing on both sources
- Line-to-line frequency sensing
- Fixed time delays
- 5-year limited warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
RDT-CFNC-0100A-QS7

General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
15 Pounds
Consumer Warranty
5 Years
Product Depth
7 Inches
Product Width
13.4 Inches
Product Height
24.1 Inches
UPC
650531125071
Additional Model Numbers
RDT-CFNC-0100A, RDT-CFNC-0100A-QS7
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Poles
2 Poles
Max Utility Input
100 Amps
Max Generator Input
100 Amps
UL Listed
Yes
