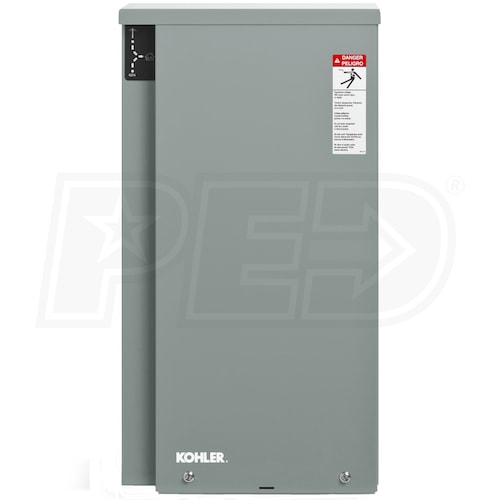

Kohler RXT Series 100-Amp Outdoor Automatic Transfer Switch (120/208V 3-Phase)
Model:
RXT-JCTC-0100A-QS4
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Type
Standard
Amp Rating
100
Load Mgmt.
Voltage
120/208 Three-Phase
Enclosure
NEMA 3R
- Kohler Model RXT 100-Amp Automatic Transfer Switch
- Only works with 120/208V 3-Phase generators
- Corrosion-Resistant NEMA 3R Aluminum Enclosure
- Approved for indoor or outdoor installations
- Switch can be padlocked for additional safety
- Standard Features
- Allows utility voltage display on RDC2/DC2 controller
- Interface board for connection to the RDC2/DC2 controller
- Double throw inherently interlocked design
- Added Safety
- Contractor manually operable for maintenance purposes
- Standard Installation
- Requires a sub-panel for overload protection
- Rated at 100-Amps @ 120/208-Volts
- 5-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
RXT-JCTC-0100A-QS4
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
30 Pounds
Consumer Warranty
5 Years
Product Depth
9.9 Inches
Product Width
18.2 Inches
Product Height
26.8 Inches
UPC
650531408112
Additional Model Numbers
RXT-JCTC-0100A-QS3, RXT-JCTC-0100A-QS4
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
100 Amps
Max Generator Input
100 Amps
UL Listed
Yes
