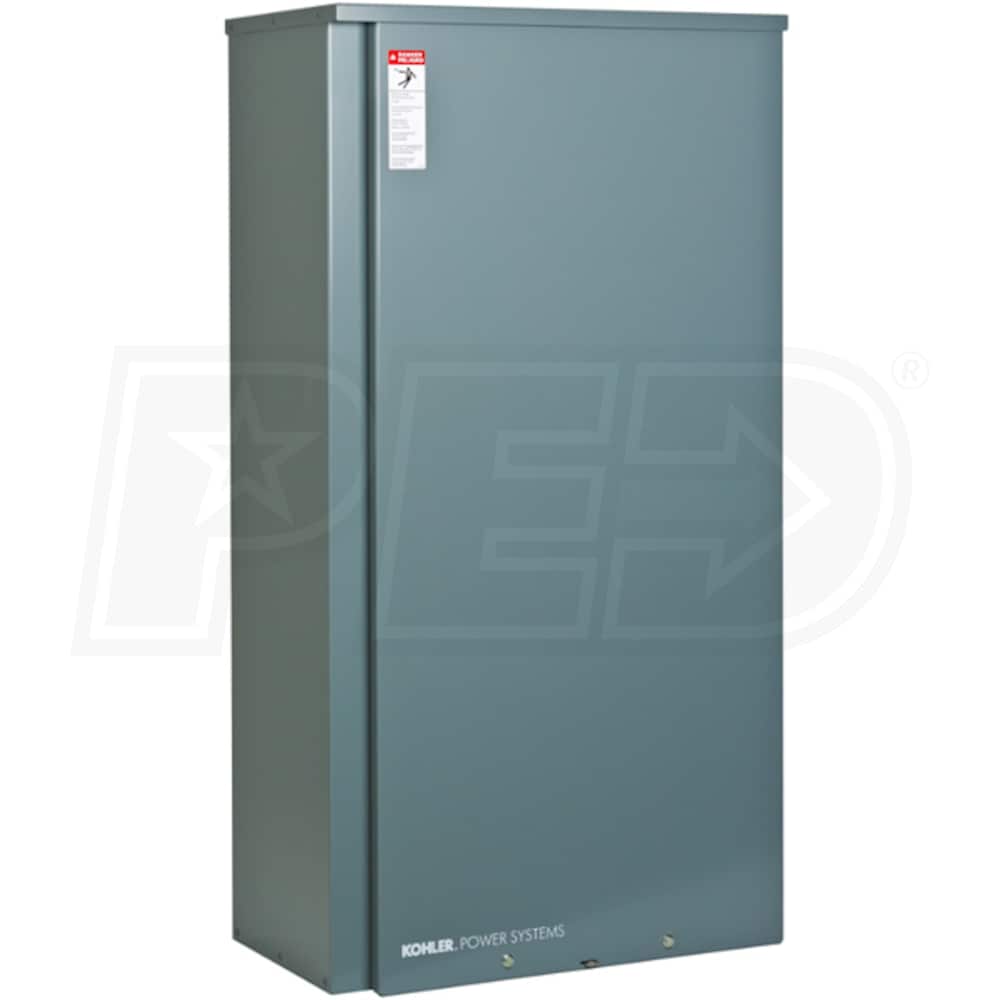

Kohler RXT Series 400-Amp Outdoor Automatic Transfer Switch (120/208V 3-Phase)

Model:

RXT-JCTC-400A-MV06

Write A Review
$2,325.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 6-8 Weeks
synchrony card logo
$41 / Month
With our 82 months 10.99% APR*
82 fixed monthly payments required.
Kohler RXT Series 400-Amp Outdoor Automatic Transfer Switch (120/208V 3-Phase)
Kohler RXT Series 400-Amp Outdoor Automatic Transfer Switch (120/208V 3-Phase)
Model: RXT-JCTC-400A-MV06
$2,325.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Standard

Amp Rating

400

Load Mgmt.

Voltage

120/208 Three-Phase

Enclosure

NEMA 3R

  • Kohler RXT Series 400-Amp Automatic Transfer Switch
  • For use w/ 48RCL 120/208V 3-Phase models
  • Only compatible with Kohler generators with RDC2/DC2 controllers
  • Corrosion-Resistant NEMA 3R Aluminum Enclosure
  • Approved for indoor or outdoor installations
  • Switch can be padlocked for additional safety
  • Standard Features
  • Allows utility voltage display on RDC2/DC2 controller
  • Interface board for connection to the RDC2/DC2 controller
  • Double throw inherently interlocked design
  • Added Safety
  • Contractor manually operable for maintenance purposes
  • Standard Installation
  • Requires a sub-panel for overload protection
  • Rated at 400-Amps @ 120/208-Volts
  • 5-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

RXT-JCTC-400A-MV06
specs product image PID-8705
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
90 Pounds
Consumer Warranty
5 Years
Product Depth
12.9 Inches
Product Width
22 Inches
Product Height
42 Inches
UPC
650531125491
Additional Model Numbers

RXT-JCTC-0400A, RXT-JCTC-400A-MV06

Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
UL Listed
Yes
