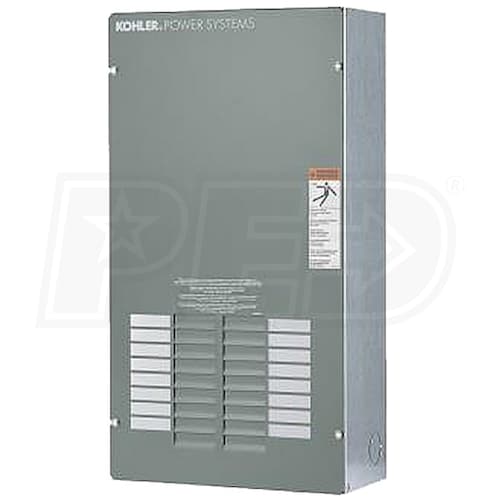

Kohler RXT Series 100-Amp Indoor Automatic Transfer Switch w/ 16-Circuit Load Center

Model:

RXT-JFNA-0100B-QS5

Write A Review
$550.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 8-12 Weeks
synchrony card logo
$92 / Month
Suggested monthly payments with 6 month financing.
Kohler RXT Series 100-Amp Indoor Automatic Transfer Switch w/ 16-Circuit Load Center
Kohler RXT Series 100-Amp Indoor Automatic Transfer Switch w/ 16-Circuit Load Center
Model: RXT-JFNA-0100B-QS5
$550.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Optional Accessories 6
$120.99
In-Stock
$179.00
Only 5 In-Stock
$65.00
Only 3 In-Stock
$65.00
Backordered

Features

Type

Load Center

Amp Rating

100

Circuits

16

Voltage

120/240 Single-Phase

Enclosure

NEMA 1R

Kohler RXT Series 100-Amp Indoor Automatic Transfer Switch w/ 16-Circuit Load Center


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Kohler Model RXT 100-Amp Indoor Automatic Transfer Switch
  • Only compatible with Kohler generators with RDC2/DC2 controllers
  • Built-In 100-Amp 16-Circuit Load Center (Breakers Not Included)
  • Up to 8 tandem breakers can be used for a total of 24 circuits
  • NEMA 1R Indoor Steel Enclosure
  • Designed for indoor installation
  • Standard Features
  • Allows utility voltage display on RDC2/DC2 controller
  • Interface board for connection to the RDC2/DC2 controller
  • Double throw inherently interlocked design
  • Added Safety
  • Contractor manually operable for maintenance purposes
  • Rated at 100-Amps @ 240-Volts
  • 5-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

RXT-JFNA-0100B-QS5
specs product image PID-11210
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
26 Pounds
Consumer Warranty
5 Years
Product Depth
6 Inches
Product Width
13 Inches
Product Height
24 Inches
UPC
650531172198
Additional Model Numbers

RXT-JFNA-0100B, RXT-JFNA-0100B-QS5

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
24000 Watts
Rated Amps
100 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
16
Transfer Switch Style
Select Circuit
ATS Load Prioritizing
Not Included
ATS Load Shedding
Not Included
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
24000 Watts
UL Listed
Yes
