Kohler RXT-JFNC-100ASEQS4
Kohler RXT-JFNC-100ASEQS4
Hover to zoom
1 of 1

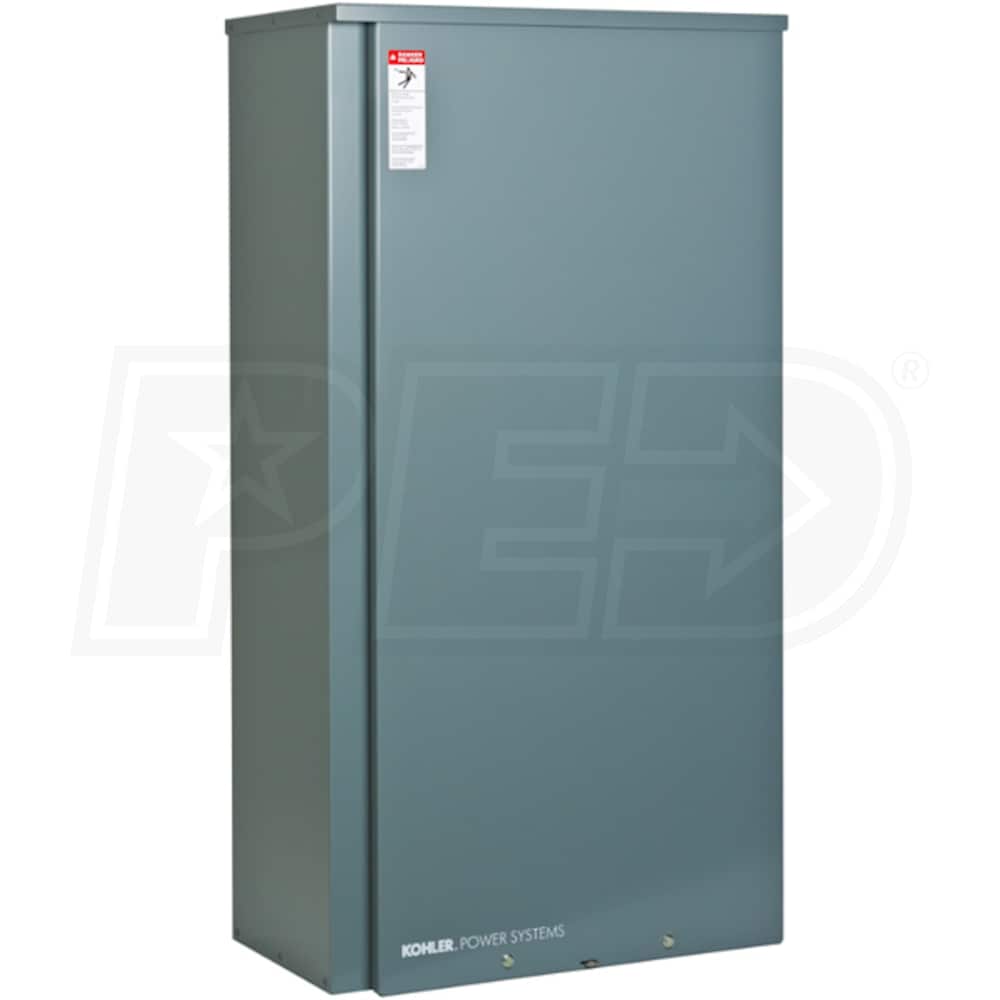

Kohler RXT Series 100-Amp Outdoor Automatic Transfer Switch (Service Disconnect)

Model:

RXT-JFNC-100ASEQS4

Recommended
Write A Review
$660.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Mar 31st
Shipping to60601
synchrony card logo
$110 / Month
Suggested monthly payments with 6 month financing.
Kohler RXT Series 100-Amp Outdoor Automatic Transfer Switch (Service Disconnect)
Kohler RXT Series 100-Amp Outdoor Automatic Transfer Switch (Service Disconnect)
Model: RXT-JFNC-100ASEQS4
$660.00
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 1
These accessories are required to properly setup/install this product.
$66.00
In-Stock
Optional Accessories 10
$120.99
In-Stock
$179.00
Only 5 In-Stock
$366.00
Only 1 In-Stock
$65.00
Only 3 In-Stock
$65.00
Backordered
$86.00
Only 3 In-Stock
$290.00
Factory-Direct
$40.99
Only 2 In-Stock

Features

Type

Service Disconnect

Amp Rating

100

Load Mgmt.

Built-In

Voltage

120/240 Single-Phase

Enclosure

NEMA 3R

  • Kohler RXT Series 100-Amp Automatic Transfer Switch
  • Only compatible with Kohler generators with RDC2/DC2 controllers
  • Service Entrance Rated
  • Includes disconnect circuit breakers on both sources
  • Corrosion-Resistant NEMA 3R Aluminum Enclosure
  • Approved for indoor or outdoor installations
  • Switch can be padlocked for additional safety
  • Standard Features
  • Allows utility voltage display on RDC2/DC2 controller
  • Interface board for connection to the RDC2/DC2 controller
  • Double throw inherently interlocked design
  • Combined Interface / Load Management Board
  • Built-In Load Shed - Manage (2) HVAC loads
  • Manage up to (4) Non-Essential loads***
  • Added Safety
  • Contractor manually operable for maintenance purposes
  • Rated at 100-Amps @ 240-Volts
  • ***Requires PRM (Sold Separately)
  • 5-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

RXT-JFNC-100ASEQS4
specs product image PID-12139
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
26 Pounds
Consumer Warranty
5 Years
Product Depth
6.9 Inches
Product Width
16.4 Inches
Product Height
28.9 Inches
UPC
650531172211
Additional Model Numbers

RXT-JFNC-0100ASE, RXT-JFNC-100ASEQS4

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
24000 Watts
UL Listed
Yes

Reviews

(6)
Kohler RXT-JFNC-100ASEQS4 Reviews & Ratings
Jared, the Generator Expert
Expert Recommended Review
Generator Expert
Review Posted 02/24/2023
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
Works As Designed - Great Quality
By Charles P
Virginia
Purchased 12/27/2023 |
Review Posted 02/29/2024
All hooked up and tested with Kohler whole house 10RESV genset. Contracted with NE Generator for the startup. ATS and genset worked as advertised. NE Generator did a great job, everything worked perfectly. Time will tell for the long term.
Charles P Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, Price, High Quality, Durable
Cons:
None
Verified Buyer
Verified Buyer
Poor Emgineering
By Tom M.
Fenton, Michigan
Purchased 01/31/2022 |
Review Posted 02/24/2022
The interior layout was OK, but should have mounted the IC Control board facing the operator, instead of being tucked way up into the left corner, where you have no visiblity or easy access to the port terminals of the various terminal strips.
Tom M. Does Not Recommend This
Was this review helpful?
Rating Breakdown
Features
3/5
icon-review-marker
Quality
2/5
icon-review-marker
Performance
3/5
icon-review-marker
Value
2/5
icon-review-marker
Cons:
Difficult To Use, Bad Instructions
Verified Buyer
Verified Buyer
Transferring Energy
By Lonny R.
York, Pennsylvania
Purchased 08/02/2021 |
Review Posted 08/25/2021
Item was received very quickly, expected and was packed nicely. Item has more features than expected. Waiting on Electrician to hook up so can't reply to operations but sure will work as expected.
Lonny R. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Features, Exceeded Expectations, Fast, High Quality
Verified Buyer
Verified Buyer
Good ATS When You Get The Corredt One You Ordered
By Maurice K.
Auburn, Washington
Purchased 09/20/2017 |
Review Posted 10/12/2017
You must cross check what you order to what you are shipped.
Maurice K. Recommends This
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
4/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Features
Kohler 100 amp Transfer Switch Service Disconnect
By Melissa B.
Suffolk, Virginia
Review Posted 02/22/2015
I have had my 14 kw Kohler Resa Generator & RXT-JFNC-100ASEQS1 Transfer switch Service Disconnect for a year, and I had it hooked up in October. It performs perfectly, so why did Kohler discontinue this product?

It has already performed over 8 hours with exercise cycles, 80 minutes a month, then brown outs, & a 3 hr. run when Dominion couldn't provide enough power to Community Electric Coop!

Please e-mail me back & tell me why! Better not be any product recall issues. My boyfriend gave it to me as a 2-year anniversary gift to the tune of $753.00!
Melissa B. Recommends This
Was this review helpful?
Expert Response
Due to dealer agreements we have with Kohler we cannot have this item on our website. The switch is not discontinued and is still available from Kohler as a special order item from us.
Jared, the Generator Expert
Jared G.
Generator Expert
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
