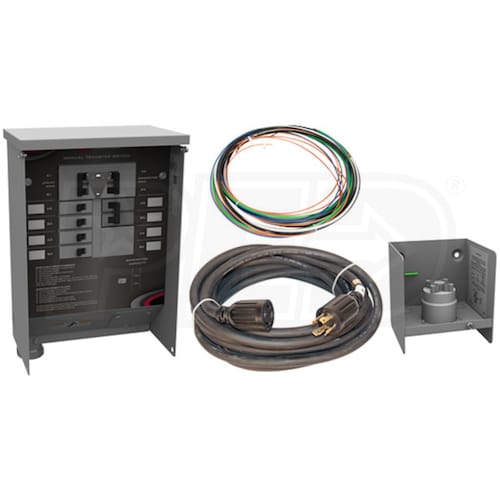

Milbank MMTS301SYSX2C - 30-Amp (6-Circuit) Power Transfer Switch System w/ Inlet Box & 25' Cord

Model:

MMTS301SYSX2C

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Milbank MMTS301SYSX2C - 30-Amp (6-Circuit) Power Transfer Switch System w/ Inlet Box & 25' Cord
Milbank MMTS301SYSX2C - 30-Amp (6-Circuit) Power Transfer Switch System w/ Inlet Box & 25' Cord
Model: MMTS301SYSX2C
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Milbank 30-Amp 120/240V 6-Circuit Power Transfer System
  • A safe way to distribute power to hardwired circuits in your home

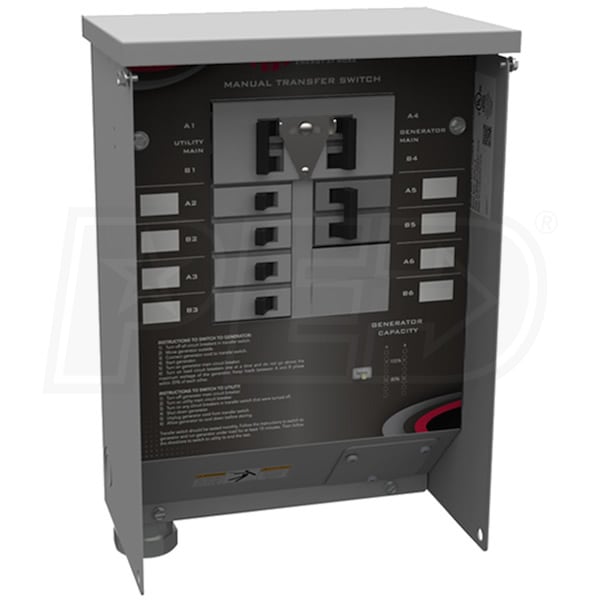

  • Manual Transfer Switch For 6-8 Circuits w/ L14-30 Inlet
  • Works with any portable generator up to 7500 watts

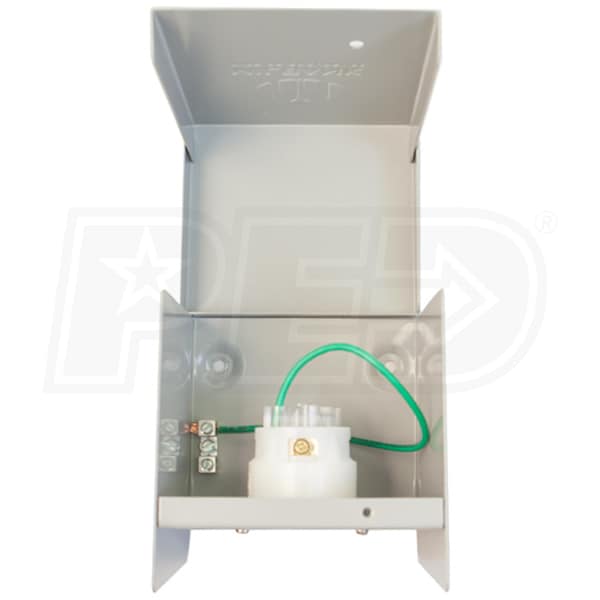

  • 30-Amp NEMA 3R Outdoor Power Inlet Box - Simplifies Install
  • Mounts on exterior wall; Keeps switch closer to main panel

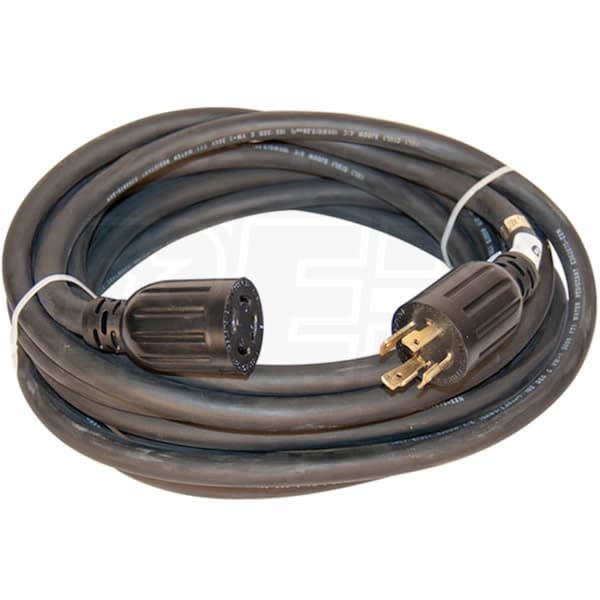

  • 25' 30-Amp (L14-30) 10-Gauge Power Cord
  • Allows you to plug generator directly into power inlet box (PIB)
  • Interlock Assembly w/ 60-Amp Utiltiy & 30-Amp Gen. Breakers
  • Prevents generator & utility power running at the same time
  • Exclusive LED Digital Meter
  • Illuminated & easy-to-read real-time generator output
  • Helps determine available circuit loads for easy monitoring
  • *Learn Function* Helps Prevent Generator Overload
  • Memorizes gen's capacity & provides accurate power usage info
  • Provides added safety when manually controlling individual loads

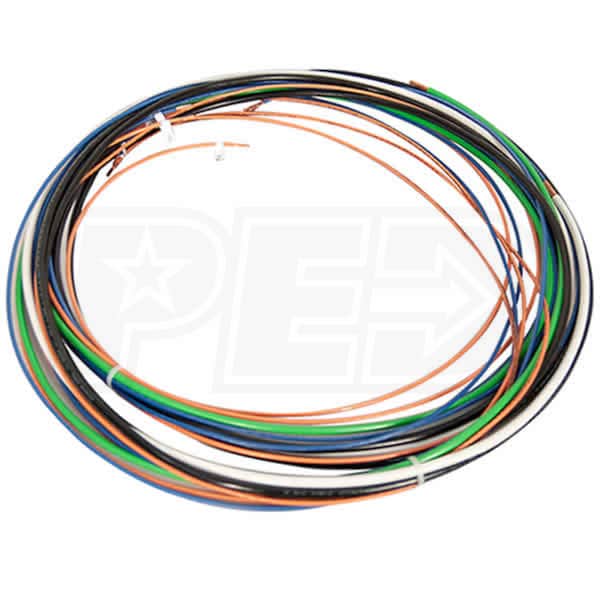

  • Includes 6 Total Circuits (Expands up to 8) w/ Wiring Harness
  • (2) 15-Amp 1-Pole, (2) 20-Amp 1-Pole, (1) 30-Amp 2-Pole
  • Max Amps 30 @ 240V - UL Listed
  • 4-Year Limited Warranty

Specifications

Plug Types
NEMA L14-30R
MMTS301SYSX2C
specs product image PID-17633
Overview
Weight
36 Pounds
Consumer Warranty
4 Years
UPC
784572714731
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
6
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
2
20A 120V
2
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Cord
Cord Length
25 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
