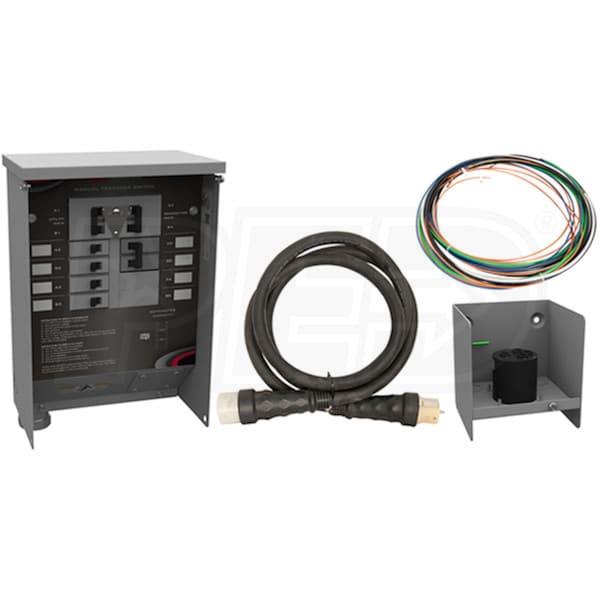

Milbank MMTS501SYSX1C - 50-Amp (6-Circuit) Power Transfer Switch System w/ Inlet Box & 10' Cord

Model:

MMTS501SYSX1C

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Milbank MMTS501SYSX1C - 50-Amp (6-Circuit) Power Transfer Switch System w/ Inlet Box & 10' Cord
Milbank MMTS501SYSX1C - 50-Amp (6-Circuit) Power Transfer Switch System w/ Inlet Box & 10' Cord
Model: MMTS501SYSX1C
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Milbank 50-Amp 120/240V 6-Circuit Power Transfer System
  • A safe way to distribute power to hardwired circuits in your home

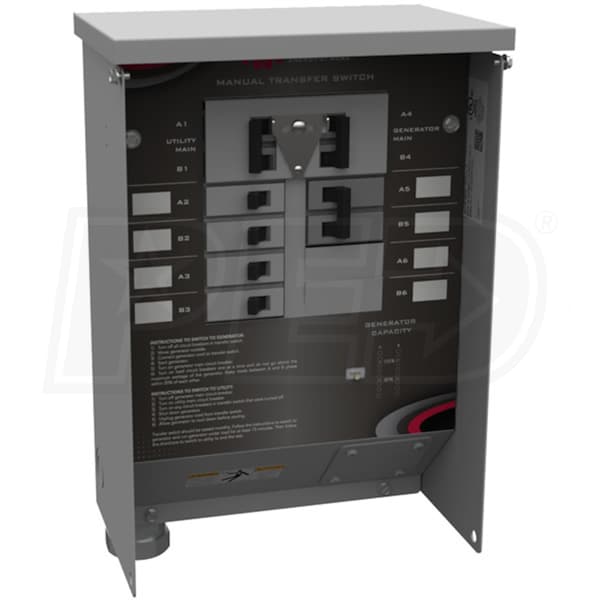

  • Manual Transfer Switch For 6-8 Circuits w/ 50A NEMA CS6375 Inlet
  • Works with any portable generator up to 12500 watts

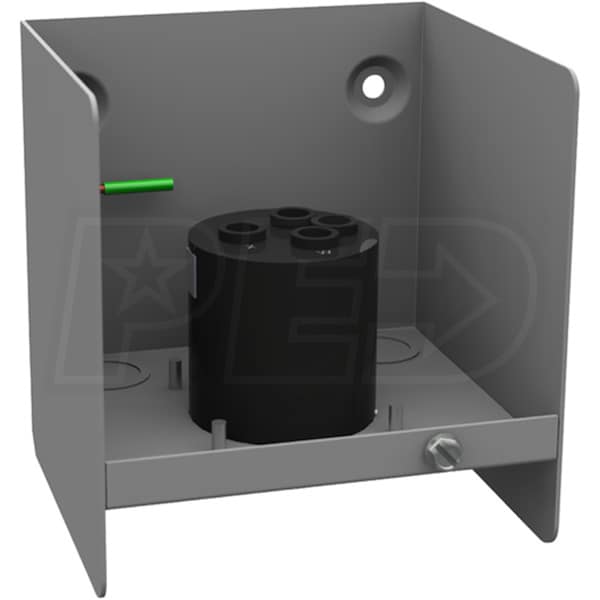

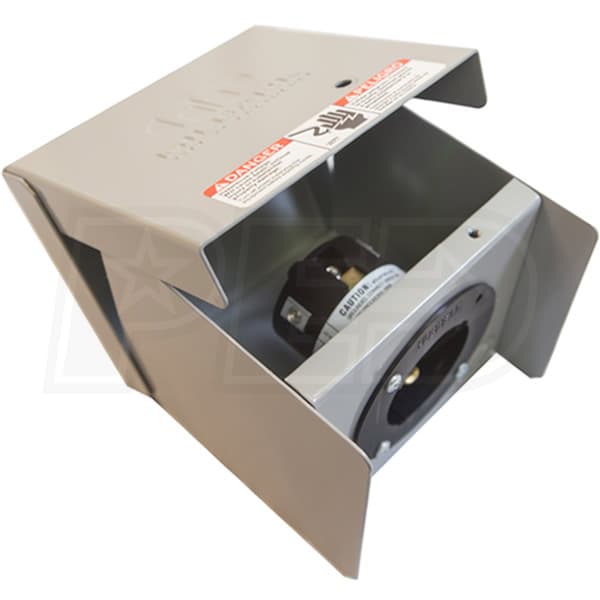

  • 50-Amp Outdoor Power Inlet Box Twistlock (Male) - Simplifies Install
  • Mounts on exterior wall; Keeps switch closer to main panel

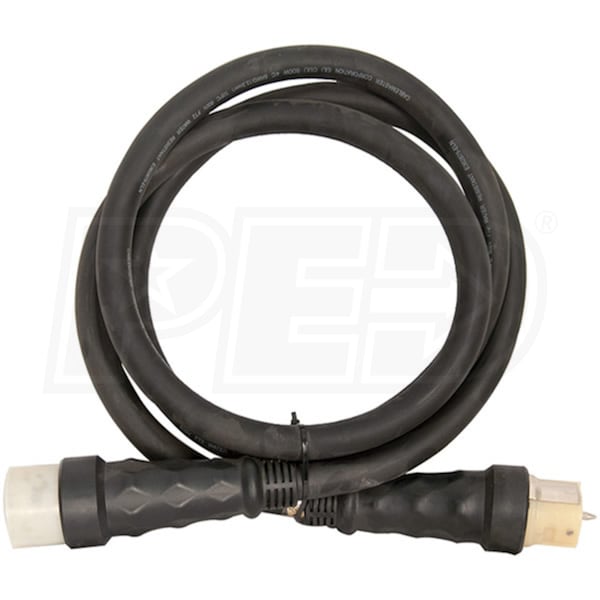

  • 10' 50-Amp Twistlock 6-Gauge Power Cord w/ CS6365/CS6364 Ends
  • Allows you to plug generator directly into power inlet box (PIB)
  • Interlock Assembly w/ 100-Amp Utility & 50-Amp Gen. Breakers
  • Prevents generator & utility power running at the same time
  • Exclusive LED Digital Meter
  • Illuminated & easy-to-read real-time generator output
  • Helps determine available circuit loads for easy monitoring
  • *Learn Function* Helps Prevent Generator Overload
  • Memorizes gen's capacity & provides accurate power usage info
  • Provides added safety when manually controlling individual loads

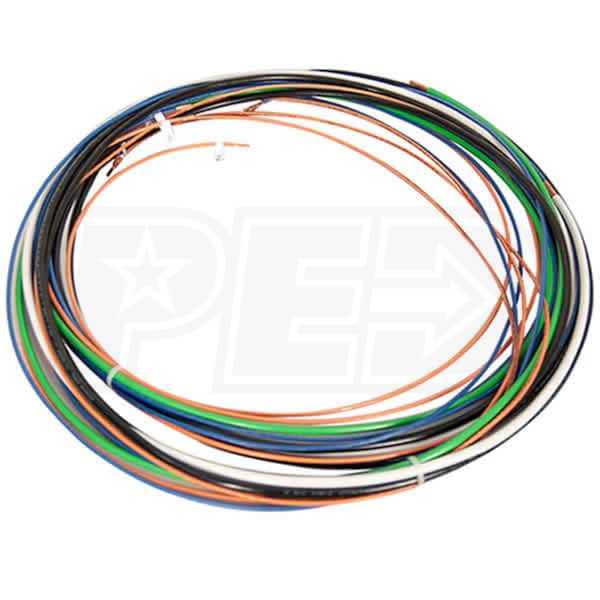

  • Includes 6 Total Circuits (Expands up to 8) w/ Wiring Harness
  • (2) 15-Amp 1-Pole, (2) 20-Amp 1-Pole, (1) 50-Amp 2-Pole
  • Max Amps 50 @ 240V - UL Listed
  • 4-Year Limited Warranty

Specifications

MMTS501SYSX1C
specs product image PID-17643
Overview
Weight
42 Pounds
Consumer Warranty
4 Years
UPC
784572714762
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
6
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
2
20A 120V
2
50A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
CS6364/5 - 50-Amp Twistlock
1
Cord
Cord Length
10 feet
Connection Type
Male
Prongs
Twistlock
Wire Gauge
6 Gauge
