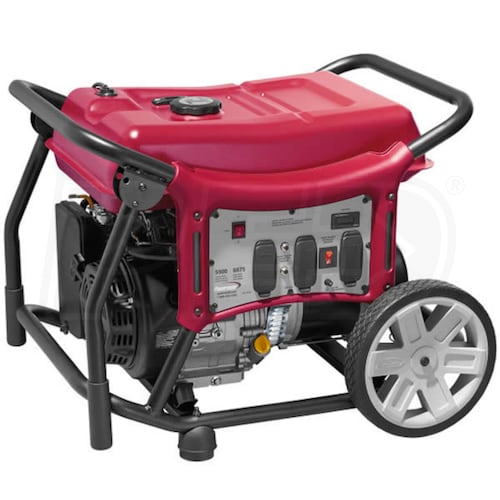

Powermate CX5500 - Cx Series 5500 Watt Portable Generator (CARB)

Model:

PMC145500

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Powermate CX5500 - Cx Series 5500 Watt Portable Generator (CARB)
Powermate CX5500 - Cx Series 5500 Watt Portable Generator (CARB)
Model: PMC145500
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Portable

Run Watts

5,500 Rated Watts

Surge Watts

6,875
Starting Watts

Fuel

Gasoline

Engine

Powermate

  • Powermate CX5500 - CX Power Series Portable Generator
  • Great for providing emergency home backup applications
  • 30A 120/240V (L14-30R) Twist-Lock Receptacle***
  • Allows for connection to a manual transfer switch (MTS)
  • Allows for connection to a convenience cord
  • 420cc Powermate OHV Engine w/ Recoil Start
  • Fuel efficient, less noise and very simple to maintain
  • Splash Lubrication Systems w/ Low Oil Shutdown
  • Provides safer operation for extended run times
  • Helps prevent engine damage from a low oil event
  • Auto Voltage Regulation (AVR)
  • Protects appliances & equipment from harmful voltage swings
  • 7-Gallon Fuel Tank w/ Fuel Gauge
  • Provides up to 12.5 hours of run time @ 50% load
  • Makes it easy to see how much fuel is left in the tank
  • Digital Multi-Meter
  • Easily track maintenance intervals to protect your investment
  • (2) GFCI-Protected Duplex Outlets
  • Helps prevent electrical shock, especially during wet conditions
  • Covered Outlets & Circuit Breaker Protection
  • Helps prevent overload and damage to the generator
  • Compact, Ergonomic Frame
  • Made for easy transportation and takes up less place for storage
  • 12-Inch Solid Wheels & Dual Fold-Down Handle
  • Allows for easy movement over uneven terrain
  • CARB Compliant
  • 2-Year Residential & 1-Year Commercial Warranty
  • ***Note - Allows You To Get Maximum Power From Generator
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (Wall-Type)
NEMA 5-20R (Wall-Type)
NEMA L14-30R
PMC145500
specs product image PID-72076
Overview
Assembly Required
Yes
Weight
173 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
31.5 Inches
Product Width
27.6 Inches
Product Height
24.5 Inches
UPC
696471620801
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
5500 Watts
Surge Watts
6875 Watts
Fuel Type
Gasoline
Rated Amps
45.5/22.9 Amps
Portability Kit
Never Flat Wheels
Tank Size
7 Gallons
Run Time @ 50% Load
12.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Lifting Eye
No
Grade Type
Emergency
Engine
Engine Brand
Powermate
Starting System
Recoil Start
CC
420 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-30R
1
