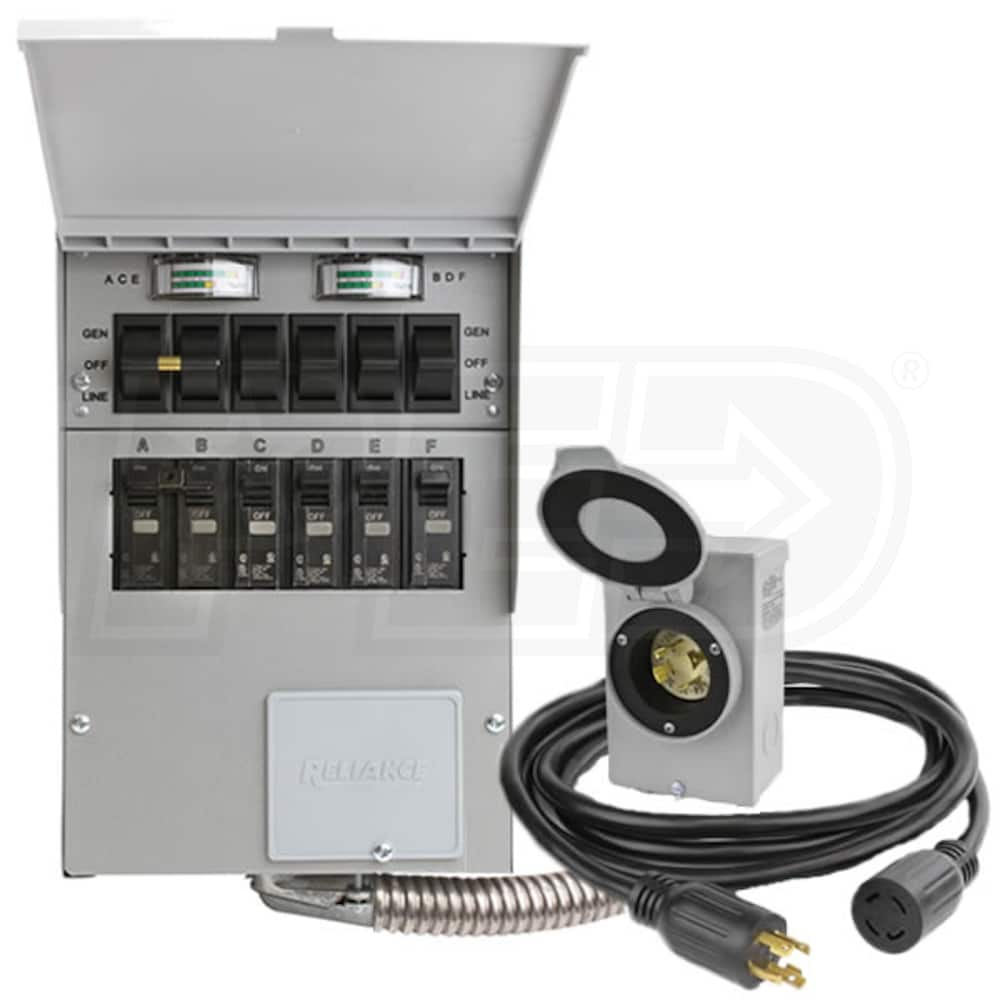

Reliance Controls Pro/Tran 2 - 30-Amp Power Transfer Switch Kit for Portable Generators (6 Circuit)

Model:

306CRK

Recommended
Write A Review
$346.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Friday, Nov 22nd
Shipping to60601

Reliance Controls Pro/Tran 2 - 30-Amp Power Transfer Switch Kit for Portable Generators (6 Circuit)
Reliance Controls Pro/Tran 2 - 30-Amp Power Transfer Switch Kit for Portable Generators (6 Circuit)
Model: 306CRK
$346.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • ProTran 2 - Power Transfer Switch Kit (6 Circuit)
  • For portable generators w/ L14-30 power outlets
  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • Pro/Tran® 2 6-Circuit 120/240V Manual Transfer Switch
  • The next generation of Loadside™ manual transfer switches
  • (6) Total Circuits (1" Interchangable Style)
  • (1) 20A 2-Pole & (4) 15A 1-Pole
  • 30-Amp AND 20-Amp Compatible (30A Breaker Not Included)
  • A & B Circuits can be used for a 30-A 2-Pole circuit (Owner Supplied)
  • NEW Color-Coded Built-In Wattage Meter
  • Helps you balance and manager generator load
  • Powder-Coated Steel Cabinet For Indoor Installation
  • 18" Flexible conduit w/ all factory wires clearly marked/colored
  • Hinged, Non-metalic cover protects the breakers/switches
  • 10' 30-Amp (L14-30) Power Cord & 30-Amp (L14-30) Power Inlet Box
  • Heavy-Duty, rubber molded design rated up to 7500w @ 240V
  • Rain-tight design w/ flip-lid keeps dirt & debris out; Generous wiring space
  • Certified to UL Stanard 1008 & Meets All Req'd 702 NEC ANSI/NFPA 70
  • 5-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Cadmium which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA L14-30R
306CRK
specs product image PID-50917
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
20 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
11 Inches
Product Width
7.75 Inches
Product Height
4.5 Inches
UPC
815181012007
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
6
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
4
20A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Cord
Cord Length
10 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
