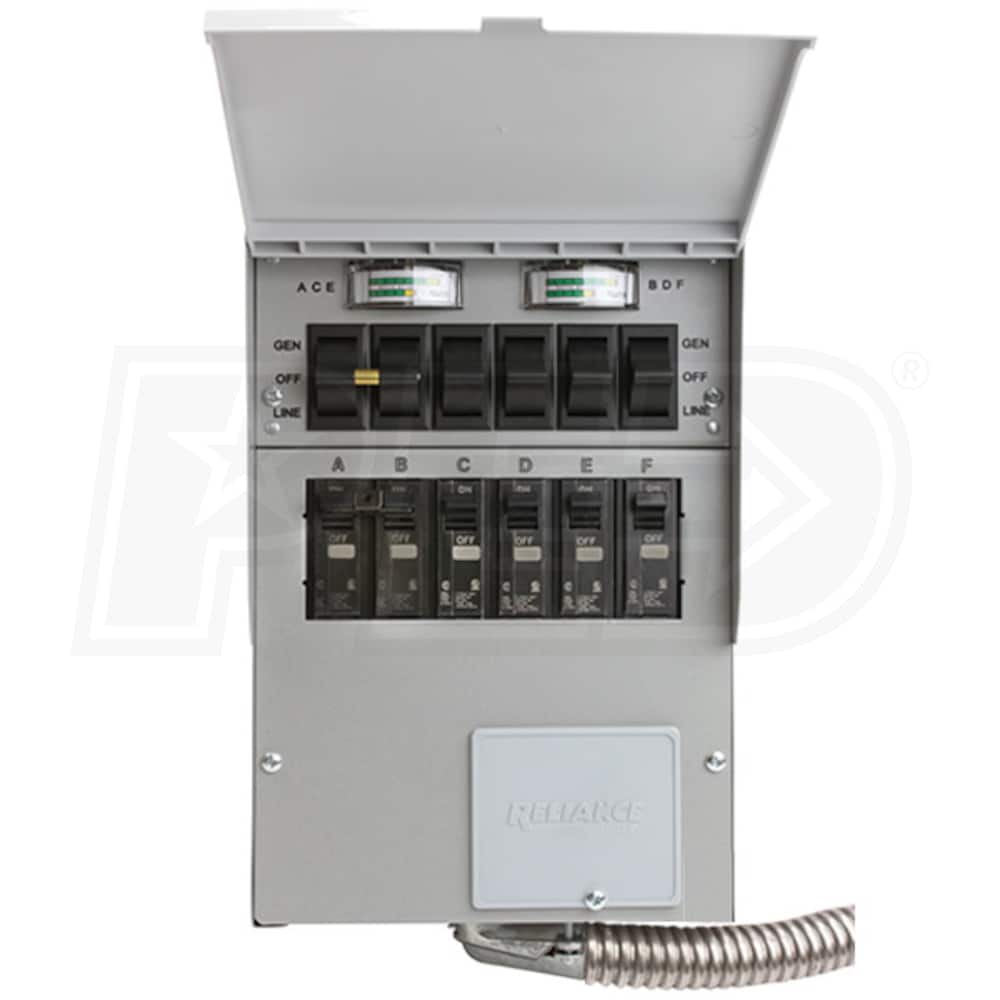

Reliance Controls Pro/Tran 2 - 50-Amp (120/240V 6-Circuit) Transfer Switch w/ Interchangeable Breakers
Model:
A506C
+
Share This Product
Recommended Accessories

Expert Recommended Accessories
Selected by Jared, our Expert
Optional Accessories
9
$76.50
In-Stock
Model: PC5025-14
$431.99
Only 3 In-Stock
$79.99
Backordered
$99.99
Only 3 In-Stock
Model: 08732-0800
$6.50
In-Stock
$79.79
Only 1 In-Stock
$86.49
In-Stock
$40.99
Only 2 In-Stock
$62.99
Factory-Direct
Features
Type
Manual
Amp Rating
50
Circuits
6
Voltage
120/240 Single-Phase
Enclosure
NEMA 1R
- Pro/Tran® 2 50-Amp 6-Circuit 120/240V Manual Transfer Switch
- The next generation of Loadside™ manual transfer switches
- Safest Way to Distribute Power
- Eliminates dangerous backfeeds and electrical overloads
- 6 Total Circuits (1" Interchangable Style)
- (1) 30A 2-Pole, (1) 20A 2-Pole and (2) 15A 1-Pole
- NEW Color-Coded Built-In Wattage Meter
- Helps you balance and manager generator load
- Hinged, Non-Metalic Cover
- Protects toggle swtiches/breakrs & povides a finished apperance
- Powder-Coated Steel Cabinet For Indoor Installation
- 18" Flexible conduit w/ all factory wires clearly marked/colored
- (6) Combination 1/2" & 3/4" knockouts for easier installation
- Easily re-configured in the field for multiple 2-pole circuits
- *Note - Transfer Switch Is Designed For Hardwired Installation
- 50-Amp (PB50) power inlet box needed to connect power cord
- Safety & Certifications
- Certified for use by Underwriter Laboratories to UL Stanard 1008
- Meets all requirements of article 702 of the NEC ANSI/NFPA 70
- 5- Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Cadmium which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
A506C

General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
14 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
11.25 Inches
Product Width
7.75 Inches
Product Height
4.5 Inches
UPC
815181012403
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
6
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
2
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Reviews
(8)
Reliance Controls A506C Reviews & Ratings
Customer Photos and Videos






Very Well Designed
By Wallace M
Tennessee
Purchased 03/07/2023 |
Review Posted 03/30/2023



The entire unit is designed perfectly for its application and was well assembled. Everything was tight with all the accessories well packaged. Having each wire labeled across its length with its corresponding breaker made installation a breeze. Solid unit that worked flawlessly the first time. Challenging to find that these days.
Wallace M Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, High Quality, Reliable, Durable
Cons:
None
Good
By Mark E
Michigan
Review Posted 06/17/2022
Seems well designed. Very straight forward to wire it up as a DIY project. In hindsight, probably should have bought the 10 switch panel version (go bigger than you need)... you can always find some additional loads you might want to use during an outage.
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5

Great Product, Great Solution For Generator Power Alternative
By Robert D.
Rowlett, Texas
Purchased 04/09/2021 |
Review Posted 05/26/2021

The Control seemed well built, I liked the quality of the box and the switches and breakers seem robust. I had to change the configuration to 4 20A singles and 2 15 A singles but the breakers were easy to find and purchase. The internal wiring appears quality made, nicely dressed wiring and secure connections. The electricians wired it in and it is working fine. Of course I always like Made In America as well.
Robert D. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Features, Id Buy It Again, Durable, High Quality

Neat With The Flush Mount Kit
By Louis S.
Irving, Texas
Purchased 02/24/2021 |
Review Posted 04/29/2021

Installed in an existing wall. That's always a hassle, but not the fault of the transfer switch, and makes the flush mount kit a necessity.
Louis S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
3/5
Pros:
Features, Id Buy It Again
Cons:
Expensive

Just What I've Been Looking For
By Daniel R.
Claxton, Georgia
Purchased 03/13/2020 |
Review Posted 04/07/2020
I have not installed the unit yet, but it is just what I have been looking for.
Daniel R. Recommends This
Was this review helpful?
Rating Breakdown
5/5
4/5
4/5
5/5
Pros:
Features, Easy To Use, Price, Id Buy It Again

Very Happy
By Robert G.
Livermore, California
Purchased 10/10/2019 |
Review Posted 11/22/2019
High Quality and easy to install.
Robert G. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5

Product Way Exceeded My Expectations
By Japke G.
Saint Augustine, Florida
Purchased 07/11/2017 |
Review Posted 08/05/2017
Easy easy to install. Very easy to switch from city power to generator power. As I see it it is not possible to make a mistake. Extremely happy I chose Reliance product.
Japke G. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, Exceeded Expectations, High Quality
Cons:
No Cons, all pros

Everything I Wanted & More
By James R.
Arlington, Washington
Purchased 11/13/2015 |
Review Posted 12/08/2015
I was surprised that this came pre-wired. Even included the conduit to the main box and the fittings. I have only used it in test mode so far but seems to work well and installed fairly easily. Highly recommended and a great value.
James R. Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
5/5
