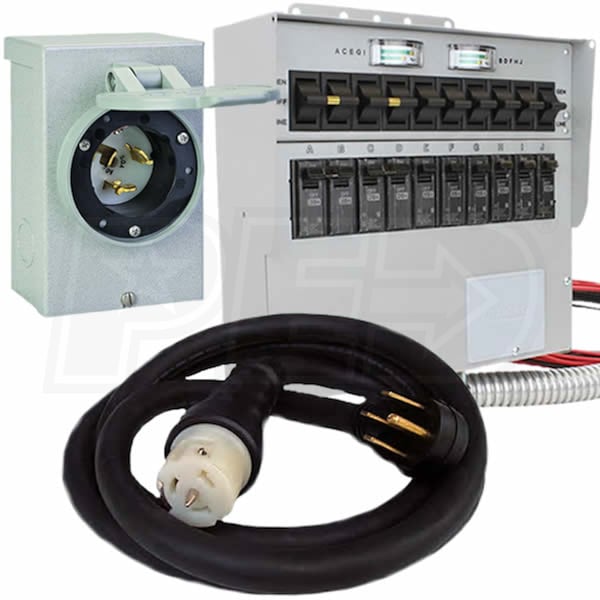

Reliance Controls 50-Amp (120/240V 10-Circuit) Power Transfer System w/ Interchangeable Breakers
Model:
EGD-Q510KIT
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Optional Accessories
14
$76.50
In-Stock
$79.99
Backordered
$99.99
Only 3 In-Stock
$15.99
Only 5 In-Stock
Model: 08732-0800
$6.50
In-Stock
Model: EGD-RELIANCEQ310KIT
$490.99
In-Stock
$79.79
In-Stock
$60.49
Only 3 In-Stock
Model: THP103
$44.99
In-Stock
Model: THP101
$13.99
Factory-Direct
Model: THP207M
$24.99
Only 3 In-Stock
$40.99
Only 5 In-Stock
Model: THP205
$24.99
Only 2 In-Stock
Features
- 50-Amp (120/240V 10-Circuit) Power Transfer System
- Everything but the electrician and generator
- Safest Way to Distribute Power
- Eliminates dangerous back-feeds and electrical overloads
- Standard Circuits
- (6) 15A 1-pole, (1) 20A 2-pole, and (1) 30A 2-pole
- Versatile Design w/ Interchangeable Breakers
- You determine the right combination for your application
- Built-In Wattage Meter
- Track power input to ensure proper load balancing
- 25-Foot 50-Amp Straight Blade Power Cord By Generac
- Flexible design male (L14-50) & female (CS6364/5) ends
- 50-Amp Twistlock Power Inlet Box
- Rain-tight design w/ flip-lid keeps dirt and debris out
- Generous wiring space that facilitates rough-in
- Kit Includes:
- 50-Amp (120/240V 10-Circuit) Manual Transfer Switch
- 50-Amp (25-Foot) Generator Power Cord
- 50-Amp (Twistlock) Power Inlet Box
- UL Listed & Certified for use by Underwriter Laboratories
Product Includes
California residents see
Warning: This product can expose you to chemicals including Cadmium which is known to the State of California to cause Developmental Harm, and Wood dust which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
Product Includes
EGD-Q510KIT
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
47 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
13 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA 14-50R
1
CS6364/5 - 50-Amp Twistlock
1
Cord
Cord Length
25 feet
Connection Type
Male
Prongs
Straight-Blade
Wire Gauge
6 Gauge
A510C
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
20 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
11.25 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
6389
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Weight
17 Pounds
Consumer Warranty
2 Years
Product Length
300 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Maximum Wattage
12500 Watts
Plugs
NEMA 14-50R
1
CS6364/5 - 50-Amp Twistlock
1
Cord
Cord Length
25 feet
Connection Type
Male
Prongs
Straight-Blade
Wire Gauge
6 Gauge
PB50
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Weight
2.5 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
6 Inches
Product Width
4 Inches
Product Height
3 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 3R
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Plugs
CS6364/5 - 50-Amp Twistlock
1
Reviews
(8)
Reliance Controls EGD-Q510KIT Reviews & Ratings
Excellent, highly recommended quality kit
By LuckyTonyB
Delaware
Review Posted 06/07/2024
Hi, installed this kit in my daughter's home, took a full day because the power inlet box and the electrical panel are at opposite ends of the home. All three components are well made and heavy duty. Wiring the transfer switch to the electrical panel was straight forward, instructions are clear, wires from transfer switch long enough to reach ground/neutral bars, circuit breakers and the wires were clearly labeled. Safely wired one circuit at a time so didn't shut off power to the home. Would highly recommend this kit.
Two issues to consider, wire whip is pre-installed through the bottom center of the transfer switch box and the included flexible conduit would not reach the electrical panel, which is directly above it. 1" flexible conduit very hard to find in my area, the electrical supply house insisted on a 25 foot minimum. I decided to run the wiring whip through the side of the transfer switch box, which shorten the distance to the electrical panel and it all came together, so consider the transfer switch box placement, it has to be quite close to the electrical panel. Supplies needed, mounting screws of course, a fitting for the receptacle box, wire nuts, I used compression lugs for the #6awg wiring connection, electrical tape and labels for the transfer circuits. All in all I'm very happy with the quality components in this kit and the ease of installation.
Two issues to consider, wire whip is pre-installed through the bottom center of the transfer switch box and the included flexible conduit would not reach the electrical panel, which is directly above it. 1" flexible conduit very hard to find in my area, the electrical supply house insisted on a 25 foot minimum. I decided to run the wiring whip through the side of the transfer switch box, which shorten the distance to the electrical panel and it all came together, so consider the transfer switch box placement, it has to be quite close to the electrical panel. Supplies needed, mounting screws of course, a fitting for the receptacle box, wire nuts, I used compression lugs for the #6awg wiring connection, electrical tape and labels for the transfer circuits. All in all I'm very happy with the quality components in this kit and the ease of installation.
LuckyTonyB Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I'd Buy It Again
Cons:
Length of flexible conduit
Transfer Switch And Power Cable
By Keviin K
California
Review Posted 10/12/2022
My electrician installed the transfer switch and power cable and works perfect.
Keviin K Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I'd Buy It Again, Easy To Store
Cons:
None
Poorly Spot-Welded Terminal
By Tom S.
Wichita, Kansas
Review Posted 04/13/2021
I tried to install the ground wire to the poorly spot-welded terminal located on the transfer box's lower mid-portion. I pushed on the bolt to loosen, and it snapped. This is a major safety hazard!
Tom S. Does Not Recommend This
Was this review helpful?
Expert Response
Thank you for providing feedback about the product. We rarely see any issues with theses MTS. This will be brought to the attention of your rep from Reliance.
Jared G.
Generator Expert
Rating Breakdown
4/5
1/5
3/5
3/5
Pros:
Features
Cons:
Low Quality, Unreliable, Durability
Excellent Product At A Reasonable Price
By Robin S.
Loris, South Carolina
Purchased 03/26/2017 |
Review Posted 05/04/2017
I've yet to have this transfer switch kit installed, I'm not an electrician, but I'm pleased with the quality of the components. No other store, on-line or off, had these components in kit form and it was a breath of fresh air when I first came to the Electric Generators Direct website, read the helpful information provided by experts to help me decide exactly what I needed and found it all in kit form and at a great price. I'll try to update y'all when the kit is installed.
Robin S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Features, Price, High Quality, I'd Buy It Again
Cons:
None
Transfer Switch Works Well!
By David L.
Alpine, Texas
Purchased 12/04/2016 |
Review Posted 12/29/2016
Installed as instructed, works well. Standard breaker design allowed me to configure to my needs by buying some different sized breakers to replace some of those that came with it.
Only gripe is the external power receptacle which is cramped, particularly due to the way the external cover is shaped.
Only gripe is the external power receptacle which is cramped, particularly due to the way the external cover is shaped.
David L. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
5/5
4/5
Pros:
Durable, Features, Easy To Use
Cons:
50 amp receptacle is poorly designed.
Reliance Controls 50-Amp (120/240V 10-Circuit) Power Transfer Sy
By Bob C.
TRENTON, New Jersey
Purchased 09/14/2016 |
Review Posted 10/06/2016
Purchased the 3-Piece Package. Had the manual transfer switch, the out side plug box and the 25 foot out side cord (6-3) from the generator to the out side box.
All I had to do was to purchase the inside wire from the out side box from within my basement and run over to the manual transfer box. I also purchased (6-3) wire at Home Depot. Had them cur me a 35 foot piece. This thick wire is hard to work with, but just took my time and all went very easy. Mounting the outside box was easy as well as mounting the manual breaker box inside my house. The longest part was connecting the 10 breaker sets of wires into my existing main breaker panel. Was not hard to do, just took some time. Have to identify each set of wires and connect them to the breaker in the main panel.
After that, I fired up the generator, plugged in the 25 foot cord from the generator and then into the out side box. Took some doing to get the cord plugged into the outside box, but did finally get it in.Then went into the basement and turned off the main panel and went to the new manual box and put the 10 breakers from Line to Gen and checked the house out, all 10 breakers were working in the house. Even my Central A/C was working.
PS: I did purchase a 10KW Generator with a running watts of 8KW. If you want to run your Central A/C, get the 10KW Unit. Overall, very happy with the 3-Piece Package. Highly recommend it!
All I had to do was to purchase the inside wire from the out side box from within my basement and run over to the manual transfer box. I also purchased (6-3) wire at Home Depot. Had them cur me a 35 foot piece. This thick wire is hard to work with, but just took my time and all went very easy. Mounting the outside box was easy as well as mounting the manual breaker box inside my house. The longest part was connecting the 10 breaker sets of wires into my existing main breaker panel. Was not hard to do, just took some time. Have to identify each set of wires and connect them to the breaker in the main panel.
After that, I fired up the generator, plugged in the 25 foot cord from the generator and then into the out side box. Took some doing to get the cord plugged into the outside box, but did finally get it in.Then went into the basement and turned off the main panel and went to the new manual box and put the 10 breakers from Line to Gen and checked the house out, all 10 breakers were working in the house. Even my Central A/C was working.
PS: I did purchase a 10KW Generator with a running watts of 8KW. If you want to run your Central A/C, get the 10KW Unit. Overall, very happy with the 3-Piece Package. Highly recommend it!
Bob C. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
DYI
By Jeff A.
Castle Rock, Colorado
Purchased 05/21/2015 |
Review Posted 06/15/2015
All equipment was delivered in a timely manner and very simple install.
Other than one piece missing from the power inlet receptacle which I had in my shop it was a great experience.
Other than one piece missing from the power inlet receptacle which I had in my shop it was a great experience.
Jeff A. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
4/5
Easily customized
By Joseph N.
Gloucester, Massachusetts
Purchased 12/16/2014 |
Review Posted 01/27/2015
Bought this to go with a 7kW portable generator. Easy to install. The main feature that is most helpful is that my breaker needs did not match the default configuration as shipped.
Since this unit uses standard breakers, it was trivial to split the 30 amp and 20 amp 240 volt circuits to four independent 20 amp circuits by removing the connecting bars on the two 240 volt source selector switches (unscrew them from the side of each switch.) Then replace the 240 breakers with four 20 amp 120 breakers. Also replaced one of the 15 amp breakers with a 20 amp. Now it matches the circuits in my breaker box for the circuits I have on the generator.
As somebody else mentioned, this 50 amp transfer switch uses #10 wires from the generator tie in to the breaker bus bars. I replaced them with about 18 inch long #6 wires. I am sure Reliance would not sell it with #10 wires if it was not safe, but just felt more comfortable with #6 all the way from the generator to the breaker bus in this unit. (The cord with this kit is #6 wire also.)
Since this unit uses standard breakers, it was trivial to split the 30 amp and 20 amp 240 volt circuits to four independent 20 amp circuits by removing the connecting bars on the two 240 volt source selector switches (unscrew them from the side of each switch.) Then replace the 240 breakers with four 20 amp 120 breakers. Also replaced one of the 15 amp breakers with a 20 amp. Now it matches the circuits in my breaker box for the circuits I have on the generator.
As somebody else mentioned, this 50 amp transfer switch uses #10 wires from the generator tie in to the breaker bus bars. I replaced them with about 18 inch long #6 wires. I am sure Reliance would not sell it with #10 wires if it was not safe, but just felt more comfortable with #6 all the way from the generator to the breaker bus in this unit. (The cord with this kit is #6 wire also.)
Joseph N. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
Features, Easy To Use, I'd Buy It Again
