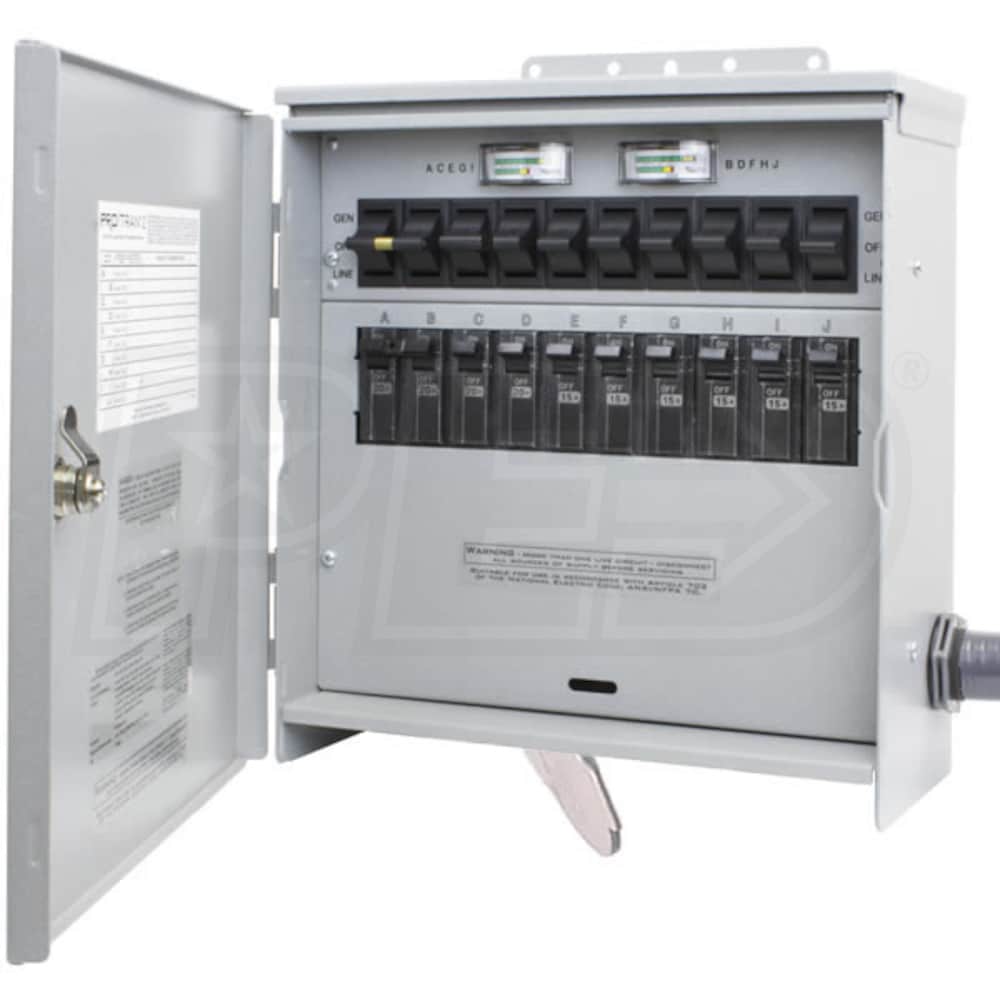

Reliance Controls Pro/Tran2 - 50-Amp (120/240V 10-Circuit) Outdoor Transfer Switch w/ Wattmeters & Inlet
Model:
R510A
+
Share This Product
Similar Products
$385.99
$386.49
$379.99
$314.99
$430.99
$619.99
$389.99
$322.99
$349.99
$603.99
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Optional Accessories
9
Model: 6389
$339.99
In-Stock
$76.50
In-Stock
Model: PC5025-14
$431.99
Only 3 In-Stock
$79.99
Backordered
$99.99
Only 3 In-Stock
Model: 08732-0800
$6.50
In-Stock
$79.79
Only 1 In-Stock
$86.49
In-Stock
$459.99
Only 2 In-Stock
Features
Type
Manual
Amp Rating
50
Circuits
10
Voltage
120/240 Single-Phase
Enclosure
NEMA 3R
- Pro/Tran® 2 50A 10-Circuit 120/240V Outdoor Manual Transfer Switch
- The next generation of Loadside™ manual transfer switches
- Non-Defeatable (Break-Before-Make) Double-Throw Switch
- Eliminates dangerous backfeeds and electrical overloads
- 10 Total Circuits (1" Interchangable Style)
- (1) 20A 2-pole, (2) 20A 1-pole and (6) 15A 1-pole
- NEW Color-Coded Built-In Analog Wattmeters
- Helps you balance and manage generator load
- Factory Installed 50-Amp (CS6364) Power Inlet w/ Flip-Lid
- Easily connect your generator cord on bottom of switch
- NEMA 3R Powder-Coated Steel Cabinet For Outdoor Installation
- Gasketed design, provides liquid tight protection in all seasons
- Key lockable door prevents tampering & unauthorized use
- 16" Flexible, Non-Metalic Liquid-Tight Conduit (1") w/ Fittings
- (5) Combination 1/2" & 3/4" knockouts for easier installation
- Factory-marked, color-coded wires simplifies installation
- Safety & Certifications
- Certified for use by Underwriter Laboratories to UL Stanard 1008
- Meets all requirements of article 702 of the NEC ANSI/NFPA 70
- 5-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Cadmium which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
R510A
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
18 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
13 Inches
Product Width
12 Inches
Product Height
5 Inches
UPC
815181012823
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 3R
Conduit Length
16
Number of Circuit Breakers
10
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
6
20A 120V
2
20A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
CS6364/5 - 50-Amp Twistlock
1
Reviews
(78)
Reliance Controls R510A Reviews & Ratings
Customer Photos and Videos
Customer Rating
4.73
(78 Ratings)
93% recommend this product
5
(60)
(60)4(15)
(15)3(3)
(3)2(0)
(0)1(0)
(0)
Quality. Peace Of Mind. Too Short Leads.
By BartWindrum
IL
Purchased 06/26/2024 |
Review Posted 08/16/2024
Homeowner here, not an electrician. This seems to be the gold standard for transfer switches. I highly recommend this 50a unit over a 30a. If your current generator is 30a buy a 50a cable and a 50a-30a adapter to plug it into the gen until you decide to upgrade to a 50a gen. ••• Because my install required the switch be installed inside my yard but my main panel is around the corner, we needed to use a junction box and laboriously create sets of extension leads to reach the box. That's a lot of pricey electrician time. I would've gladly paid a bit more for an option with longer leads to avoid all that.
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
5/5
R410A
By Steve W
North Carolina
Purchased 01/16/2024 |
Review Posted 02/07/2024
The wires should be longer. I had to extend most of the red and black wires to reach the circuit breakers. Also the wires were too tight for the 1inch flex I increased to 1 1/4 making more work and money.
Was this review helpful?
Rating Breakdown
4/5
3/5
4/5
3/5
Pros:
Easy To Use, Easy To Store
Cons:
Heavy, Expensive
Good But The 50 Amp Rating Is Deceiving
By Don S
Arizona
Purchased 10/19/2023 |
Review Posted 12/21/2023
I do not care for the fact that the switch has a 50 Amp rating, but you cannot use it as is, for even a 40 amp circuit.
I understand now, that it means 50 service rating, but it does not say it that way. I had two electricians look at too, and they both saw what I saw and were confused by it.
I understand now, that it means 50 service rating, but it does not say it that way. I had two electricians look at too, and they both saw what I saw and were confused by it.
Don S Recommends This
Was this review helpful?
Rating Breakdown
4/5
3/5
4/5
4/5
Cons:
Bad Instructions
Great Weatherproof Box
By Rose H
Texas
Purchased 11/15/2023 |
Review Posted 12/07/2023
Great addition for the XP1300HT...10 circuit/switches...
Rose H Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I'd Buy It Again, Easy To Store
Solid Product
By Joseph H
Nevada
Purchased 08/21/2023 |
Review Posted 10/23/2023
The 10-circuit manual load transfer switch is an easy to use, easy to operate, easy to install (with some breaker box electrical experience ) and solid product. It is a great option to the $20,000+ power walls and backup built in generators. A much more cost effective options for the everyday average man and woman.
Joseph H Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
4/5
4/5
Pros:
Easy To Use, Price, I'd Buy It Again, Easy To Store
Cons:
Needs a bigger port to bring all those wires through. It's a really tight fit.
Excellent Equipment
By Luis N
Texas
Purchased 08/18/2023 |
Review Posted 09/11/2023
Well designed equipment. Instructions provided are very easy to follow. Wires are labeled to help installing. Keep It up.
Luis N Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, I'd Buy It Again, High Quality, Exceeded Expectations
Cons:
None
It's Good, But Could Be Better!
By Leroy Y
Missouri
Purchased 07/31/2023 |
Review Posted 08/25/2023
The unit came packaged very well, but could be more versatile. There are 22 wires to be routed to the main breaker box which is okay except for that 1) the wires could be much longer since it's an outdoor unit. 2) The largest conduit that can be used is only 1 inch. It's very difficult getting all of those wires to go through the conduit ... it should have had the option for 1 1/4" at least. 3) It's shown that it comes with an 18" piece of 1" flexible conduit. But when I measured it, it's in fact only 15" long. I had to buy extra conduit to make it work in my application. For the price of this transfer switch, it could have been more diverse for more applications without buy extra parts!
Leroy Y Recommends This
Was this review helpful?
Rating Breakdown
3/5
3/5
4/5
3/5
Pros:
High Quality
Cons:
Difficult To Use
Fine Product Easy To Install
By Anthony K
Texas
Review Posted 08/17/2022
Install using a licensed electrician. Had many options for connection which helped given my dual boxes and tight spacing.
Anthony K Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
4/5
5/5
Pros:
Easy To Use, Price
Cons:
None
Great Back-up Plan For The House
By Chris Z
California
Review Posted 07/23/2022
We live in California (insert your favorite joke here) and the power grid in under high demand and often goes down. I shopped transfer switches for quite a while and settled on this outdoor unit, r510.
It was exactly as advertised and complete with all parts and mounting hardware. I watched the videos and was ready to install. One video claimed about an hour, mine was more like three. I worked with the main box hot.Due to the location of my mount, the red/black wires came up short. A trip to the hardware store and I was back to installing.
It works great and we ready for any power event coming. My main power box was on the complete opposite side of the house as my preferred genie location, Amazon had exactly the long extension we needed.
This is a great switch with perfects options for power balancing.
It was exactly as advertised and complete with all parts and mounting hardware. I watched the videos and was ready to install. One video claimed about an hour, mine was more like three. I worked with the main box hot.Due to the location of my mount, the red/black wires came up short. A trip to the hardware store and I was back to installing.
It works great and we ready for any power event coming. My main power box was on the complete opposite side of the house as my preferred genie location, Amazon had exactly the long extension we needed.
This is a great switch with perfects options for power balancing.
Chris Z Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price
Cons:
None
Simple Clean Install And Use
By Tony C
Texas
Review Posted 06/01/2022
This was so easy to install and usage of the preinstalled plug receptacle makes everything a breeze. My only criticism - I wish there was adequate wiring to have a larger amperage circuit, but I was able to manage with what's provided.
Tony C Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, Id Buy It Again, Easy To Store
Product Q&A
(1)
Product Questions
Answered by Jared, the Generator Expert
Is this model pre-wired with conductors to/from the main (house) panel?
Brian
from Arizona
September 22, 2020
