Model: 6389
$339.99
In-Stock
$79.79
Only 1 In-Stock
$86.49
In-Stock
Features
- Reliance Panel/Link®
- Perfect for new construction and/or renovation
- Hardwire to your generator or power inlet box
- Use as a main panel for a single load or to feed a sub-panel
California residents see
Warning: This product can expose you to chemicals including Wood dust which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
TCA1006D
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
12 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
13.25 Inches
Product Width
11.5 Inches
Product Height
4 Inches
UPC
851890000393
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
15000 Watts
Rated Amps
100 Amps
Enclosure
NEMA 1R
Max Utility Input
100 Amps
Max Generator Input
60 Amps
Maximum Wattage
15000 Watts
UL Listed
Yes
Reviews
(8)
Reliance Controls TCA1006D Reviews & Ratings
Worth The Price And Quality
By Ray G
Maine
Purchased 02/15/2024 |
Review Posted 03/07/2024
Very impressed works very well. Installation was simple in all to code the way it runs Very easy for my customer to use
Ray G Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I'd Buy It Again, Easy To Store
Cons:
None
Cover Should Be Flat For Finished Wall Mounting.
By Filippo S
Ohio
Purchased 12/03/2023 |
Review Posted 01/16/2024
Had to modify cover to fit between studs in finished wall. Cover should be flat.
Filippo S Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
3/5
Pros:
Price
Whole House Service On A Budget
By William L
Illinois
Purchased 04/15/2023 |
Review Posted 05/29/2023
I recently installed one of these for a customer. Several years ago I had installed one for myself. It’s just the ticket for a 100 amp service. With a 7500-10,000 watt portable generator you can run your whole house except for heavy 240 v. Appliances.
William L Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I39d Buy It Again, Easy To Store
Cons:
None
Easy Install
By Charles R.
Concord, California
Purchased 11/05/2019 |
Review Posted 12/15/2019
The installation of the transfer switch was straight forward. It worked well once intalled.
Charles R. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Durable, High Quality, Id Buy It Again
Transfer Switch
By Larry B.
Riverside, California
Purchased 02/22/2016 |
Review Posted 03/20/2016
It does the job at a good price. No whistles or bells but works.
Larry B. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
5/5
Not Happy
By Paul
Peabody, Massachusetts
Purchased 03/14/2012 |
Review Posted 04/07/2012
When I ordered this unit I expected it to run properly. When I started it it kept surging. When I called for information, the help line had no answers and refereed me to a dealer in Billerica which is to far from my home for them to send anyone to check it out. The person that I talk to said that it probably is the gas, I have changed the gas to no avale. The person also said I would have to bring the unit to them for them to check it out, since I have no way to get it to them, what good is the two year warranty. If there is no one to fix it. When I bought the unit I was not told that if there was a problem that I would have to transport it to have the problem solved. I hope that the company will find me a solution. If not, I can not recommend this unit or company.
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Very Satisfied
By Bud
East Bridgewater, Massachusetts
Purchased 09/02/2011 |
Review Posted 09/23/2011
Received Generac Model XG10000E on Monday Sep 19, 2011, had received 10' 50 amp power cord, inlet box and Reliance 100 amp indoor transfer switch approximately 1 weeks earlier. Didn't receive generator earlier as it was on backorder.
Electrician came over, looked at electrical configuration of the house (I have 200 amp input from street, with one breaker box in garage which handles in-law apartment and then sends 100 amp service to breaker box in cellar which powers main house). Electrician explained need for 200 amp transfer switch due to 200 amp feed from street. The generator is hooked up temporarily to garage breaker box until either he or I get 200 amp transfer switch.
But, as for the operation of the generator - works great! Powers everything I need during a loss of power - my only regret is that I should have gotten a bigger one and I would have more of a cushion if it were needed.
Electrician came over, looked at electrical configuration of the house (I have 200 amp input from street, with one breaker box in garage which handles in-law apartment and then sends 100 amp service to breaker box in cellar which powers main house). Electrician explained need for 200 amp transfer switch due to 200 amp feed from street. The generator is hooked up temporarily to garage breaker box until either he or I get 200 amp transfer switch.
But, as for the operation of the generator - works great! Powers everything I need during a loss of power - my only regret is that I should have gotten a bigger one and I would have more of a cushion if it were needed.
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Love Love LOVE IT
By Nick S.
Port Richey, Florida
Purchased 06/22/2010 |
Review Posted 07/13/2010
This is a very economical way to turn a sub-panel into your generator panel.
Per National Electrical Code, the USER gets to define what is being energized via the generator. So, you can pick and choose what circuits you want on, so long as it does not overload the capacity of your generator (including start up).
I LOVE THIS TRANSFER PANEL. Trust me, I know what I'm talking about. If you are in doubt, I have over 20 years electrical experience, just check out my credentials at www.electricalplanreview.com
Per National Electrical Code, the USER gets to define what is being energized via the generator. So, you can pick and choose what circuits you want on, so long as it does not overload the capacity of your generator (including start up).
I LOVE THIS TRANSFER PANEL. Trust me, I know what I'm talking about. If you are in doubt, I have over 20 years electrical experience, just check out my credentials at www.electricalplanreview.com
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Product Q&A
(2)
Product Questions
Answered by Jared, the Generator Expert
Hi Josh,
I'm not sure what is meant by single load. Does this mean a single load which could be "the house" or does mean a single leg of a 220 feed. Or to put it another way is this a SPDT or DPDT transfer switch?
Bob
from New Jersey
October 04, 2013
I have a Honda EB5000X generator and I would like to know what transfer switch you would recommend I use. I know I can not run my whole home but I would like to be able to turn some things on and off as needed.
Mark Cox
from Pennsylvania
February 01, 2011
How-To Articles
How to Avoid Tripping a Generator With a Bonded Neutral
Does your generator outlet trip every time you connect it to your home's transf...
How to Pick the Perfect Power Transfer System
Power transfer systems are the easiest, most convenient way to restore power to...
Electric Generators How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

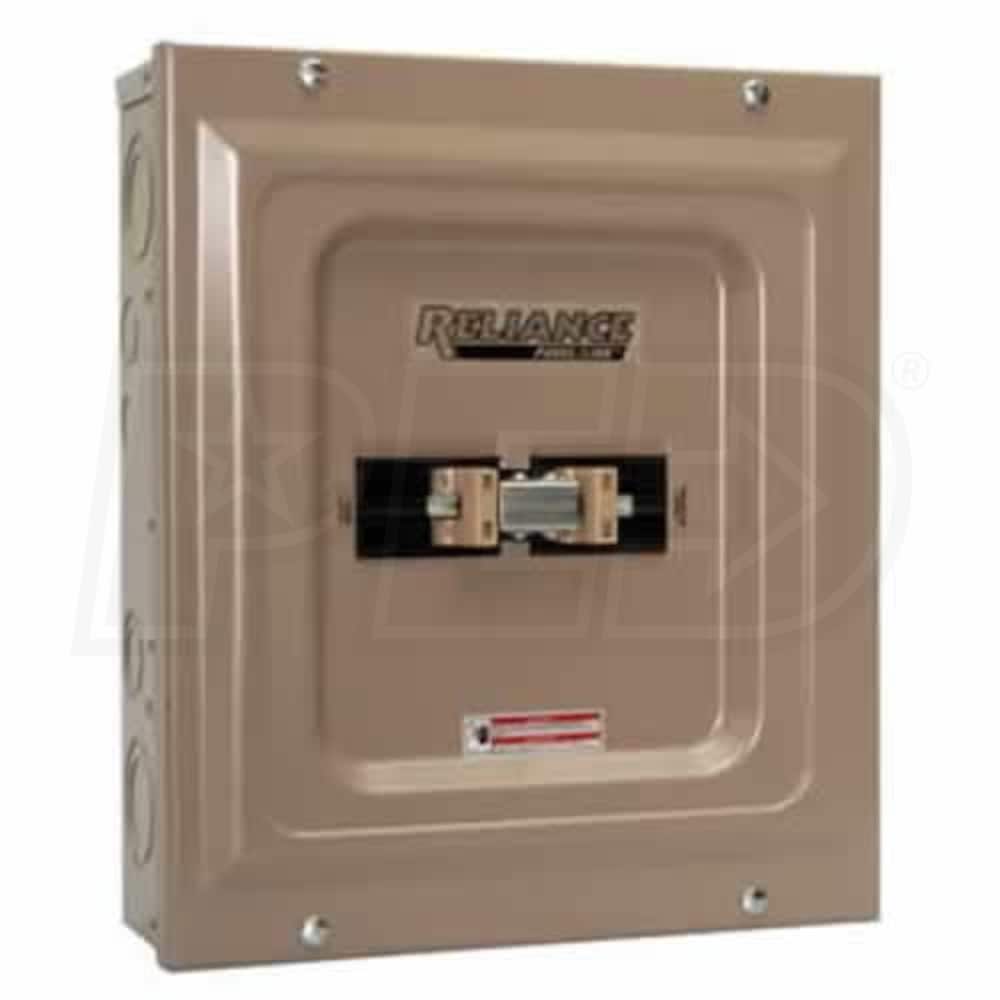

Reliance Controls 100-Amp Indoor Transfer Panel
