Model: PC3020M
$72.99
In-Stock
$50.49
In-Stock
$62.99
Only 3 In-Stock
$40.99
Only 2 In-Stock
Features
- 30-Amp Outdoor Power Center (100-Amp Utility)
- Feed generator power to your whole electrical panel
- Pick & choose what you want to run (up to gen capacity)
- Service Disconnect
- Quick and easy installation through your utility meter
- NEMA 3R Outdoor Aluminum Enclosure
- Durable corrosion and rust resistant exterior
- Built-In Load Center (Breakers Not Included)
- Can accomodate up to 12 1-Inch Breaker or 20-tandem breakers
- Flexible Connection
- Hardwire to you generator or power inlet box (Not Included)
- Heavy-Duty Copper Bus Bar For Added Reliability
California residents see
Warning: This product can expose you to chemicals including Wood dust which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
TRC1003DR

General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
26 Pounds
Consumer Warranty
2 Years
Product Length
23 Inches
Product Width
14.5 Inches
Product Height
4.5 Inches
UPC
815181014810
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
100 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
12
Max Utility Input
100 Amps
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Reviews
(1)
Reliance Controls TRC1003DR Reviews & Ratings

Well made
By Fred Bitterly
Granville, New York
Purchased 08/13/2014 |
Review Posted 09/04/2014
Product is well made, works as main service panel or sub-panel. Lots of room for wiring, even if filled with CB's.
Be sure to order right size hub if it's being fed from the top.
Product was pole mounted, used for main service feeding house and garage.
Be sure to order right size hub if it's being fed from the top.
Product was pole mounted, used for main service feeding house and garage.
Fred Bitterly Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Durable, Easy To Use, Reliable, I'd Buy It Again
How-To Articles
How to Pick the Perfect Manual Transfer Switch
During a sudden power outage, you probably don’t feel like running multip...
How to Avoid Tripping a Generator With a Bonded Neutral
Does your generator outlet trip every time you connect it to your home's transf...
How to Pick the Perfect Power Transfer System
Power transfer systems are the easiest, most convenient way to restore power to...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.

Media Gallery

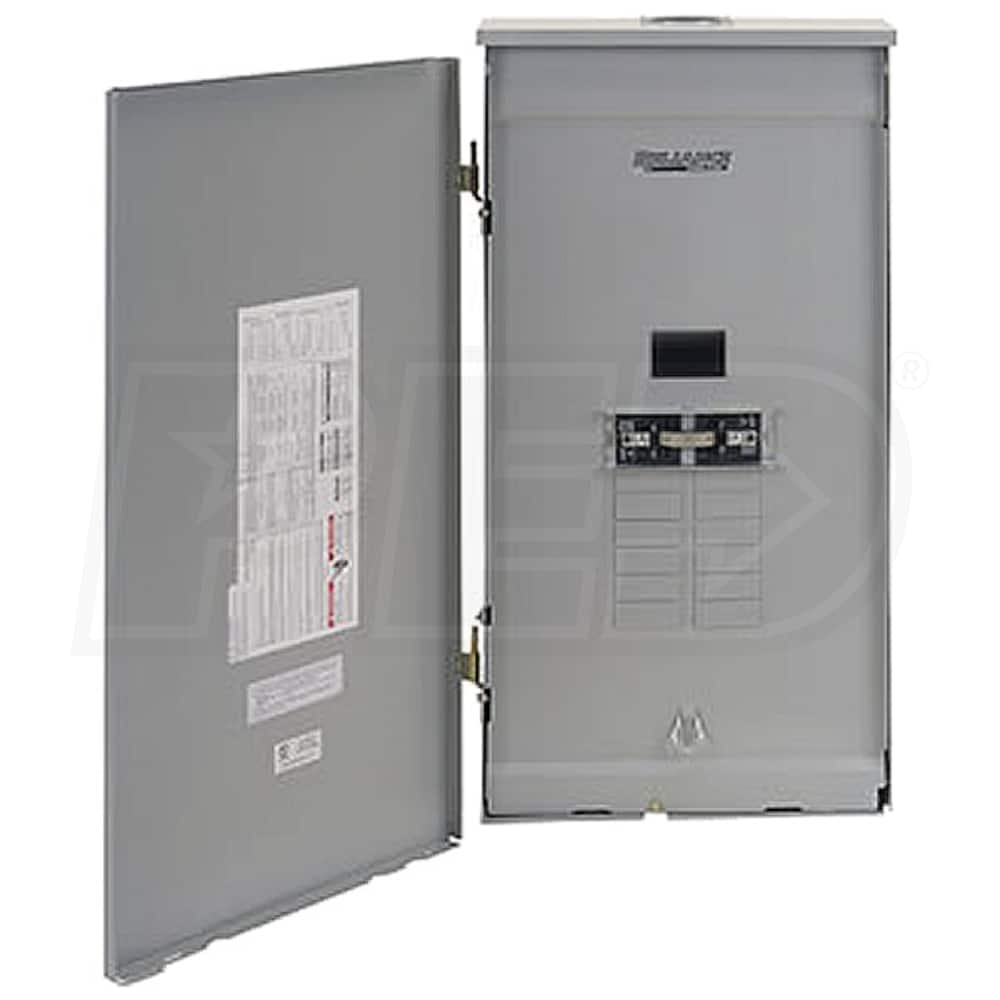

Reliance Controls 100-Amp 12-Circuit Outdoor Transfer Panel
