Reliance Controls 30-Amp Through-the-Wall Kit Power Panel System w/ 40' Cord

Model:

WKPBN3040

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Reliance Controls 30-Amp Through-the-Wall Kit Power Panel System w/ 40' Cord
Reliance Controls 30-Amp Through-the-Wall Kit Power Panel System w/ 40' Cord
Model: WKPBN3040
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

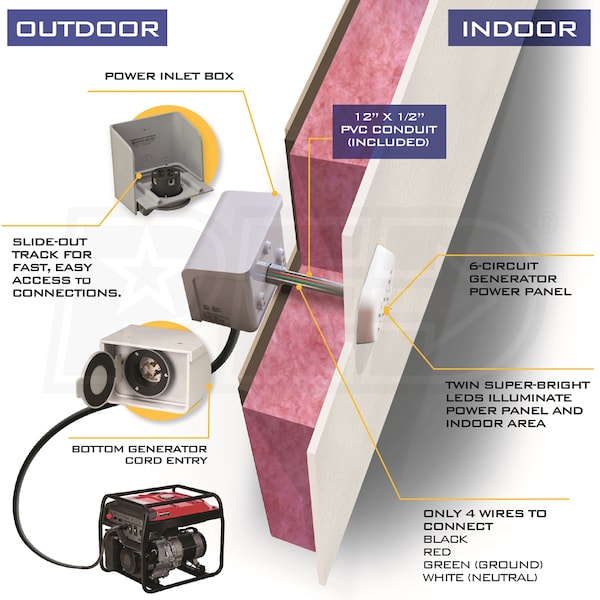

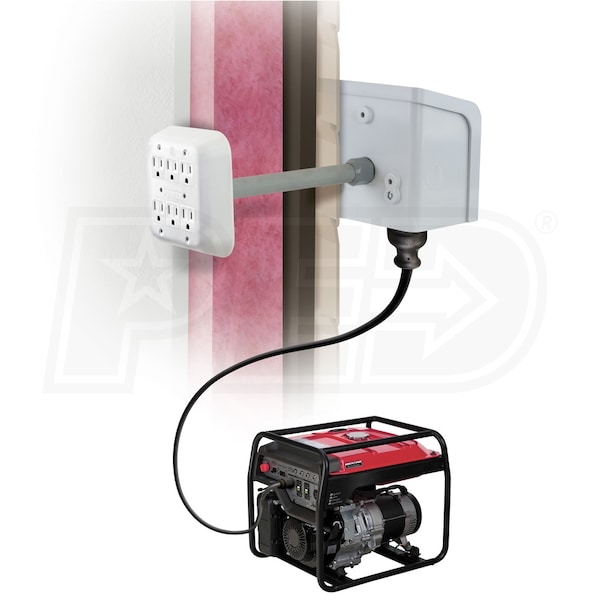

  • Reliance Controls Through-The-Wall System For Portable Generators
  • Meets all requirements on NEC and is CULUS listed
  • Keeps Your Portable Generator Plugged In Outdoors
  • Provides added safety during power outages
  • Indoor Power Panel w/ Super-Bright LED Lights
  • Makes it easy to connect items inside your home
  • Includes 40-Foot 30-Amp 120/240V (L14-30) Power Cord
  • Connects your portable generator to the power inlet box
  • Saves Time and $$$
  • Great for emergency installations where time is critical
  • Easy To Install & Includes Step-By-Step Instructions
  • Makes this an easy DIY project

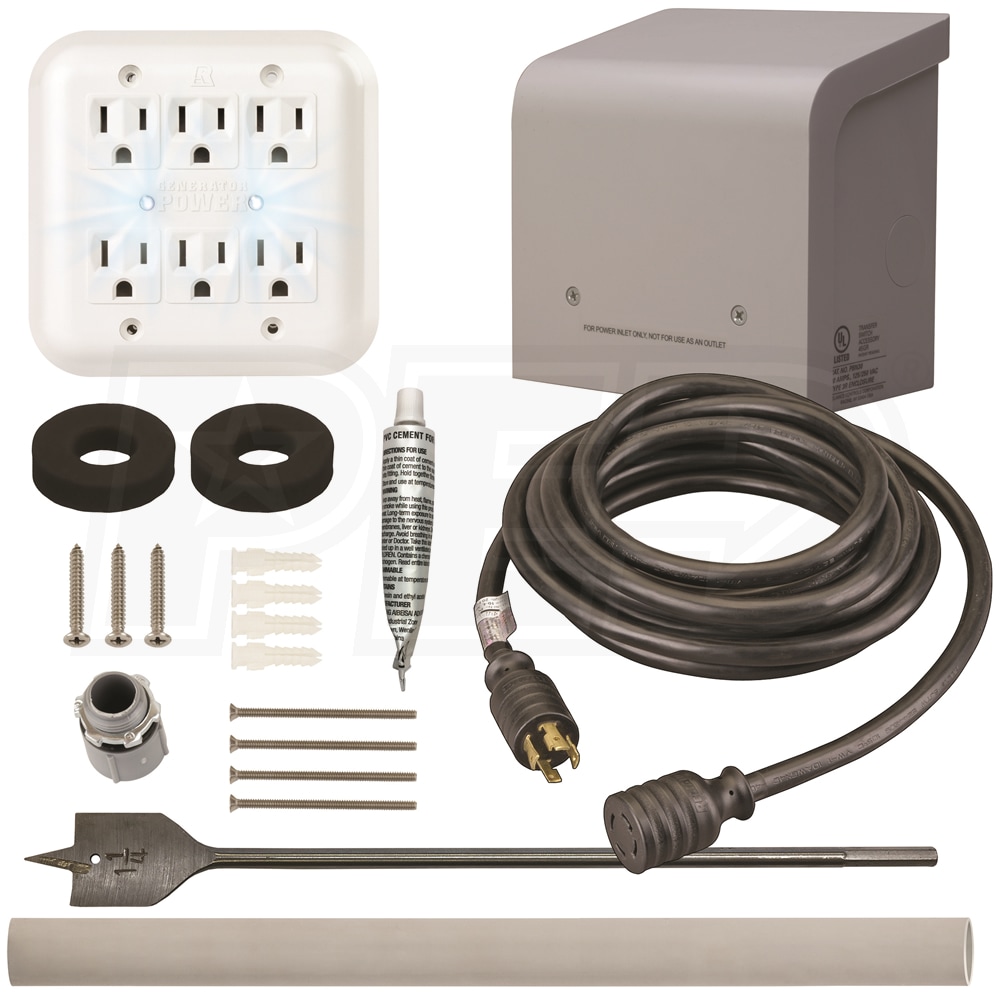

  • Includes:

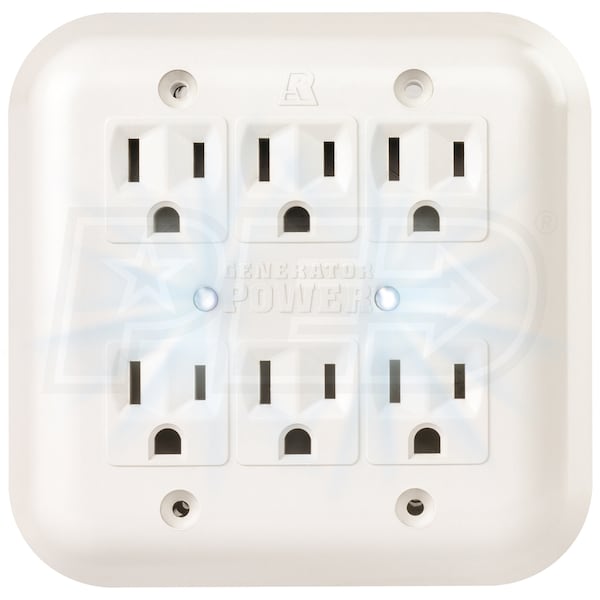

  • Pre-Wired 6-Outlet Power Panel
  • Outdoor Power Inlet Box for plug-in of generator cord
  • 12" x 1-1/4" Flat Drill Bit (Non Masonry)
  • PVC Conduit 12" x 1/2"
  • PVC Conduit Fitting with Insulated Tightening Ring
  • (2) 2" Foam Weather Insulating Rings (2)
  • PVC Cement Tube
  • (4) White-head 2-1/4" Indoor Power Panel Mounting Screws
  • (4) Wall Anchors
  • (3) Stainless Steel 1-1/2" Outdoor Power Inlet Box Mounting Screws
  • 5-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including 1,3-Butadiene which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-15R Single (Wall-Type)
NEMA 5-15R Single (Wall-Type)
NEMA 5-15R Single (Wall-Type)
NEMA 5-15R Single (Wall-Type)
NEMA 5-15R Single (Wall-Type)
NEMA 5-15R Single (Wall-Type)
WKPBN3040
specs product image PID-93090
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Assembly Required
Yes
Weight
10 Pounds
Consumer Warranty
5 Years
UPC
815181017798
Product Specs
Rated Amps
30 Amps
Max Generator Input
30 Amps
UL Listed
Yes
Plugs
NEMA 5-15R - Single - Wall-Type
6
Cord
Cord Length
40 feet
Prongs
Four-Prong
Plug Type
L14-30R
