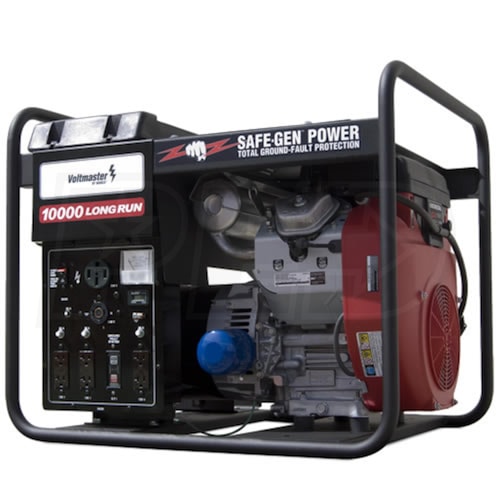

Voltmaster LR105EH-SG - 9500 Watt Roof Pro™ Portable Generator w/ SafeGen Power™ (Honda Engine)

Model:

LR105EH-SG

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Voltmaster LR105EH-SG - 9500 Watt Roof Pro™ Portable Generator w/ SafeGen Power™ (Honda Engine)
Voltmaster LR105EH-SG - 9500 Watt Roof Pro™ Portable Generator w/ SafeGen Power™ (Honda Engine)
Model: LR105EH-SG
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Portable

Run Watts

9,500 Rated Watts

Surge Watts

10,000
Starting Watts

Fuel

Gasoline

Engine

Honda GX

  • Safe Gen Total Ground Fault System
  • Provides total 120/240 VAC ground-fault protection on all recps.
  • Complies w/ OSHA Standards Regarding Ground Fault Operation
  • Designed for robotic/hot air roof welders
  • Honda GX Engine
  • Powerful 20-HP engine starts easily & runs smoothly
  • Electric Start (Battery Sold Separately)
  • Includes battery rack & cables
  • Cast Iron Cylinder Liner w/ Low Oil Pressure Shutdown
  • Provides added protection
  • 8-Gallon Fuel Tank Provides Extended Run Time
  • 8.5 hours @ half load & 5.8hours @ full load
  • Voltage Plus™
  • Provides added surge watts during operation
  • All Copper Winding, Brushless Alternator w/ Capacitor
  • Provides <6% harmonic distortion
  • Added Features
  • Voltage regulation +/- 6%
  • 1" Welded Steel Frame & Hour Meter
  • Please Note - Generator CAN NOT be used w/ Transfer Switch
California residents see
Warning: This product can expose you to chemicals including Gasoline engine exhaust (condensates/extracts) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-20R
NEMA 14-50R
LR105EH-SG
specs product image PID-5791
Overview
Weight
253 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Portable Generator
Product Length
30 Inches
Product Width
24 Inches
Product Height
25 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
9500 Watts
Surge Watts
10000 Watts
Fuel Type
Gasoline
Rated Amps
40 Amps
Tank Size
8 Gallons
Run Time @ 50% Load
8.5 Hours
Fuel Tank Material
Plastic
Fuel Gauge
No
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
76 dbA
Hour Meter
Yes
Voltage Meter
Yes
Neutral Type
Bonded
Battery
Not Included
Grade Type
Professional
Engine
Engine Brand
Honda GX
Starting System
12-Volt Key Start
HP
20 HP
CC
630 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
3
NEMA L14-20R
1
NEMA 14-50R
1
